Throttle Body Assembly Removal

WARNING: This page is about a different variant/trim than selected.

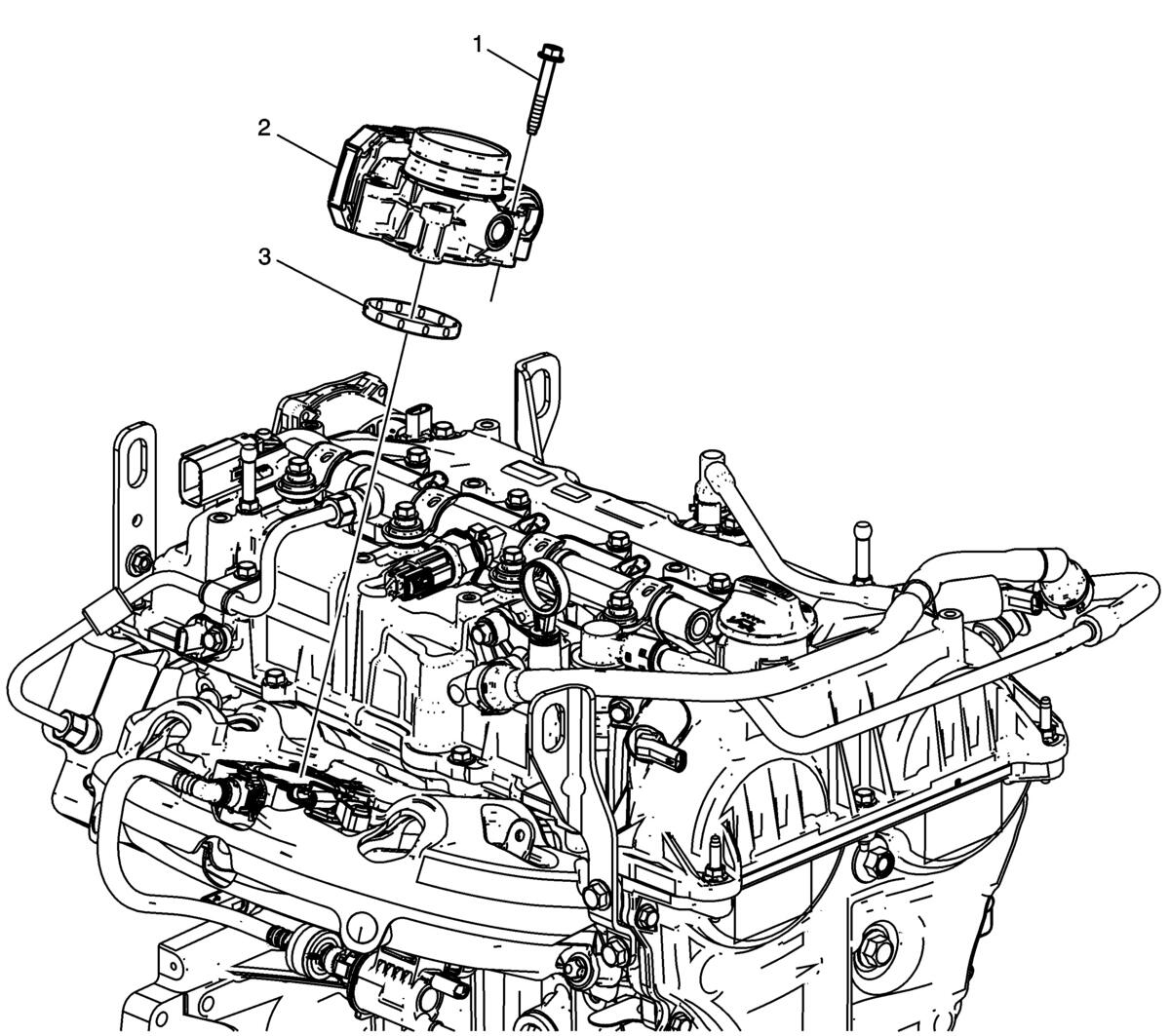

Fig 1: Throttle Body
GM3599951Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Throttle Body Assembly Bolt (Qty: 4)
2 Throttle Body Assembly
3 Throttle Body Gasket
