Oil Pump Drive Chain Tensioner And Oil Pump Drive Chain Cleaning And Inspection

WARNING: This page is about a different variant/trim than selected.

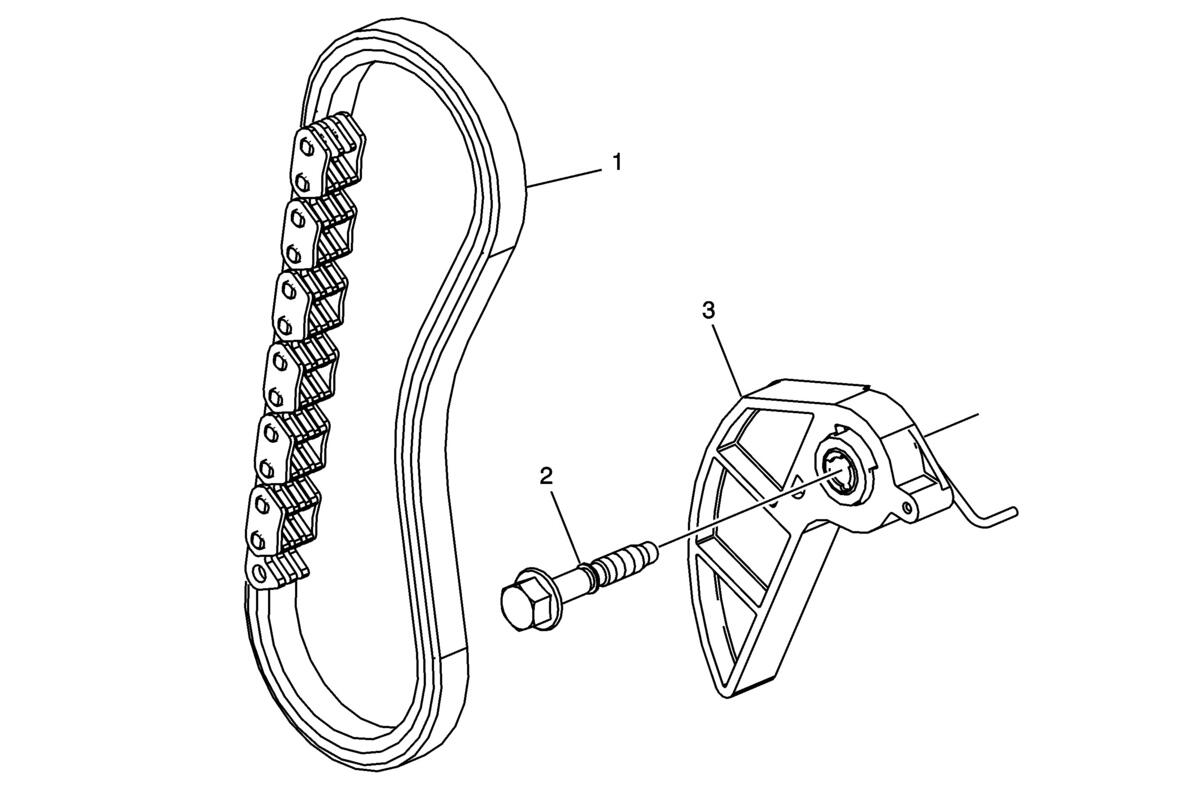

Fig 1: Oil Pump Drive Chain Tensioner And Oil Pump Drive Chain

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Clean all components. Inspect each component.
1	Oil Pump Drive Chain
2	Oil Pump Drive Chain Tensioner Bolt
3	Oil Pump Drive Chain Tensioner
