Oil Pump Drive Chain and Crankshaft Sprocket Removal

WARNING: This page is about a different variant/trim than selected.

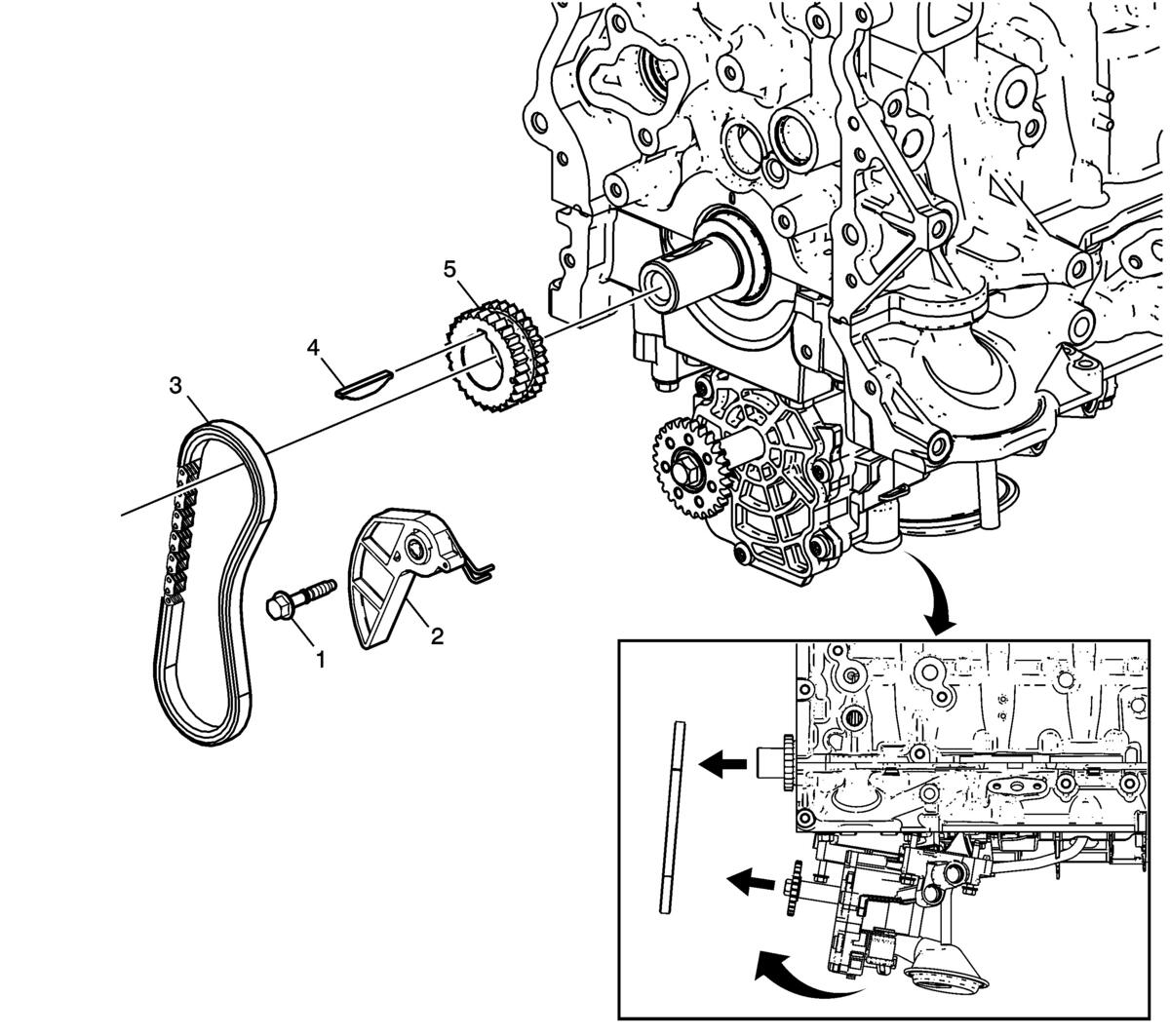

Fig 1: Oil Pump Drive Chain and Crankshaft Sprocket
GM3600046Courtesy of GENERAL MOTORS COMPANY
Oil Pump Drive Chain and Crankshaft Sprocket Removal

Callout Component Name
1 Oil Pump Drive Chain Tensioner Bolt
2 Oil Pump Drive Chain Tensioner
3 Oil Pump Drive Chain
Procedure
Loosen the oil pump assembly bolts and tilt the oil pump assembly in order to remove the drive chain.
4 Crankshaft Balancer Key
5 Crankshaft Sprocket
