Oil Pump Assembly Removal
WARNING: This page is about a different variant/trim than selected.

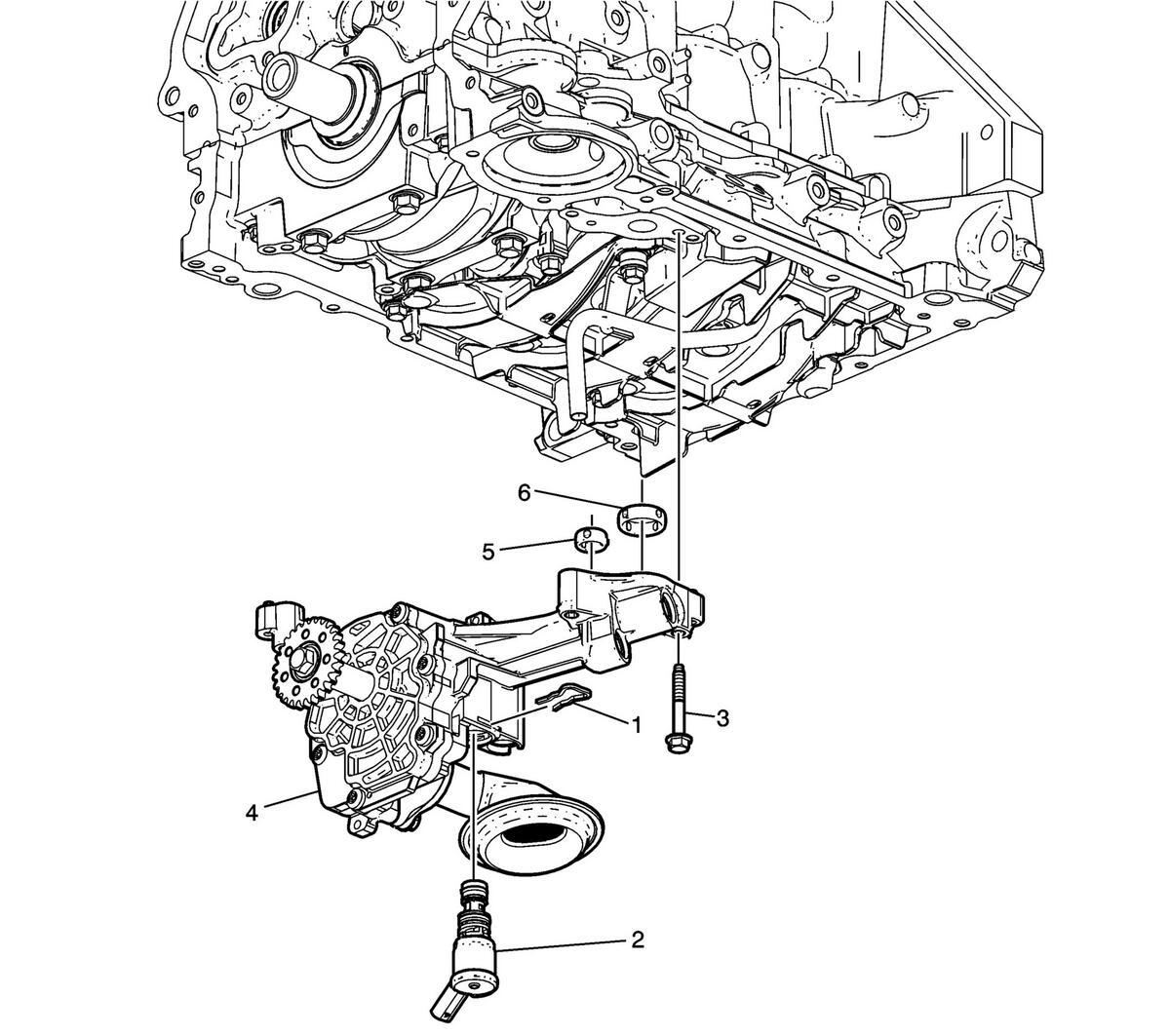

Courtesy of GENERAL MOTORS COMPANY Oil Pump Assembly Removal
| Callout |
Component Name |
| 1 |
Oil Pump Flow Control Solenoid Valve Retainer |
| 2 |
Oil Pump Flow Control Solenoid Valve |
| 3 |
Oil Pump Assembly Bolt (Qty: 4) |
| 4 |
Oil Pump Assembly |
| 5 |
Oil Pump Gasket |
| 6 |
Oil Pump Gasket |
