Oil Pan Removal
WARNING: This page is about a different variant/trim than selected.

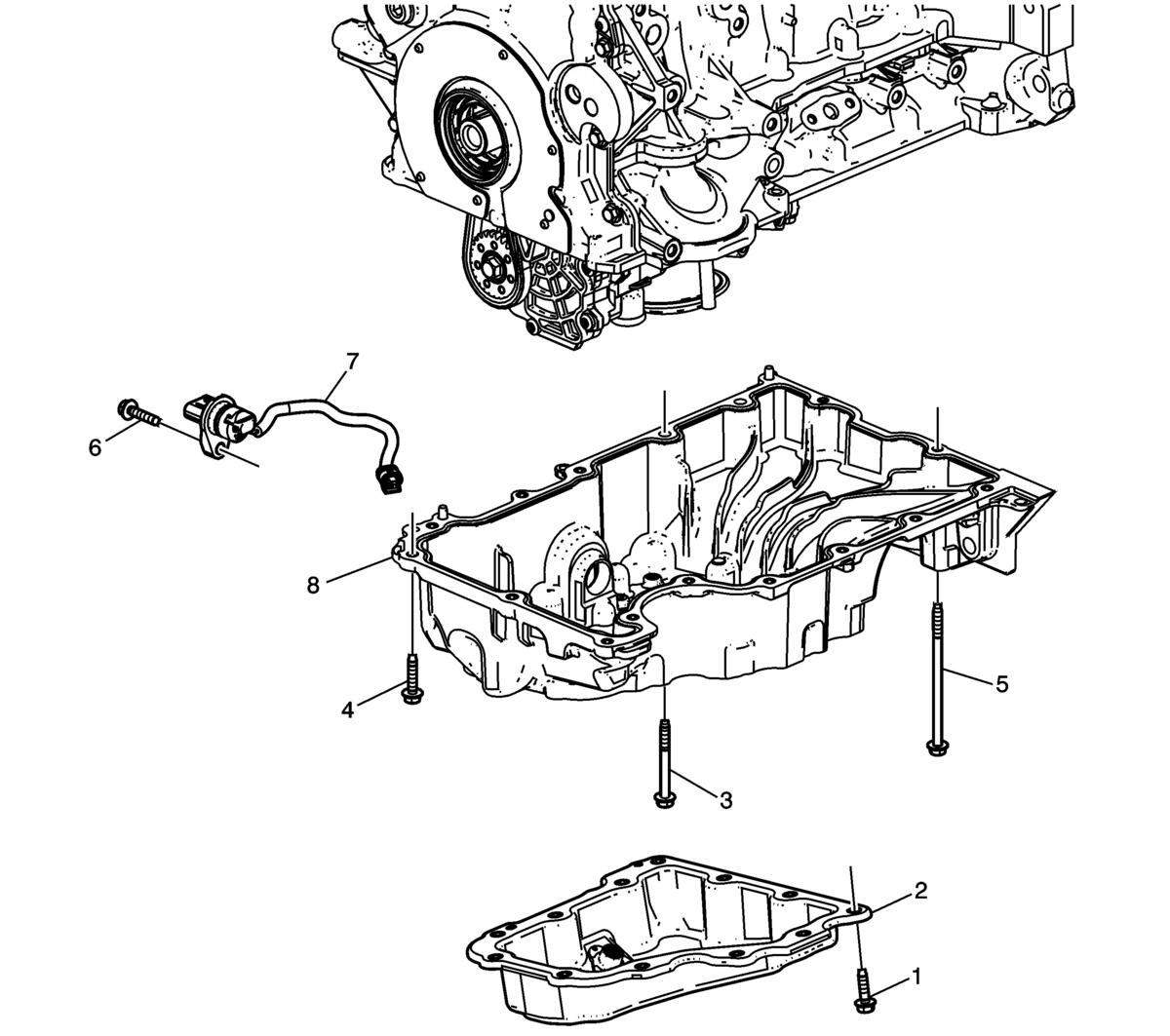

| Callout | Component Name |
|---|---|
| 1 | Lower Oil Pan Bolt (Qty: 12) |
| 2 | Lower Oil Pan Procedure Remove the oil pan drain plug, if applicable. Discard the lower oil pan. |
| 3 | Oil Pan Bolt (Qty: 2) |
| 4 | Oil Pan Bolt (Qty: 12) |
| 5 | Oil Pan Bolt (Qty: 2) |
| 6 | Wiring Harness Connector Bolt |
| 7 | Wiring Harness Connector Procedure Disconnect the oil pump control valve connector, then remove through the upper oil pan. |
| 8 | Upper Oil Pan Assembly |
