Oil Pan Cleaning And Inspection

WARNING: This page is about a different variant/trim than selected.

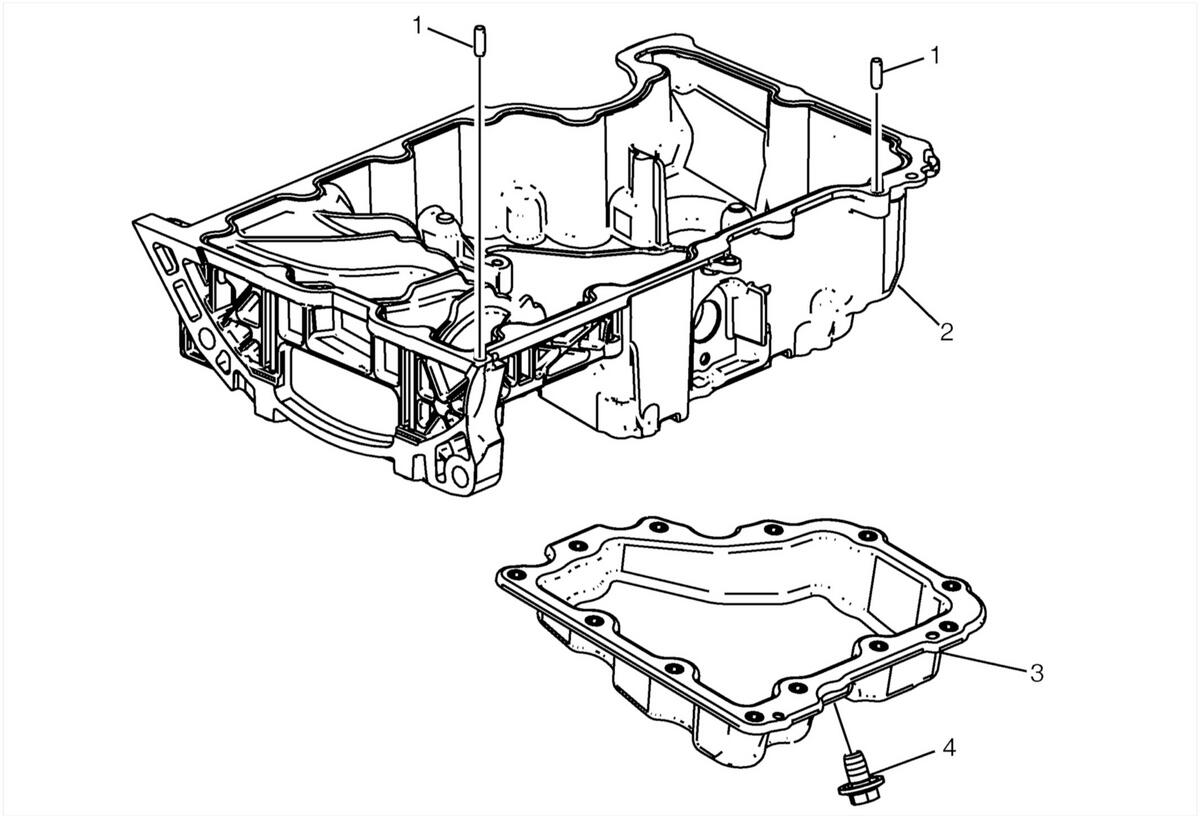

Fig 1: Oil Pan

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove all components prior to cleaning. Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant Clean all components. Inspect each component.
1	Upper Oil Pan Locating Pin (Qty: 2)
2	Upper Oil Pan
3	Lower Oil Pan Locating Pin (Qty: 2)
4	Lower Oil Pan NOTE: Use a NEW lower oil pan.
5	Oil Pan Drain Plug
