Intake Manifold Removal
WARNING: This page is about a different variant/trim than selected.

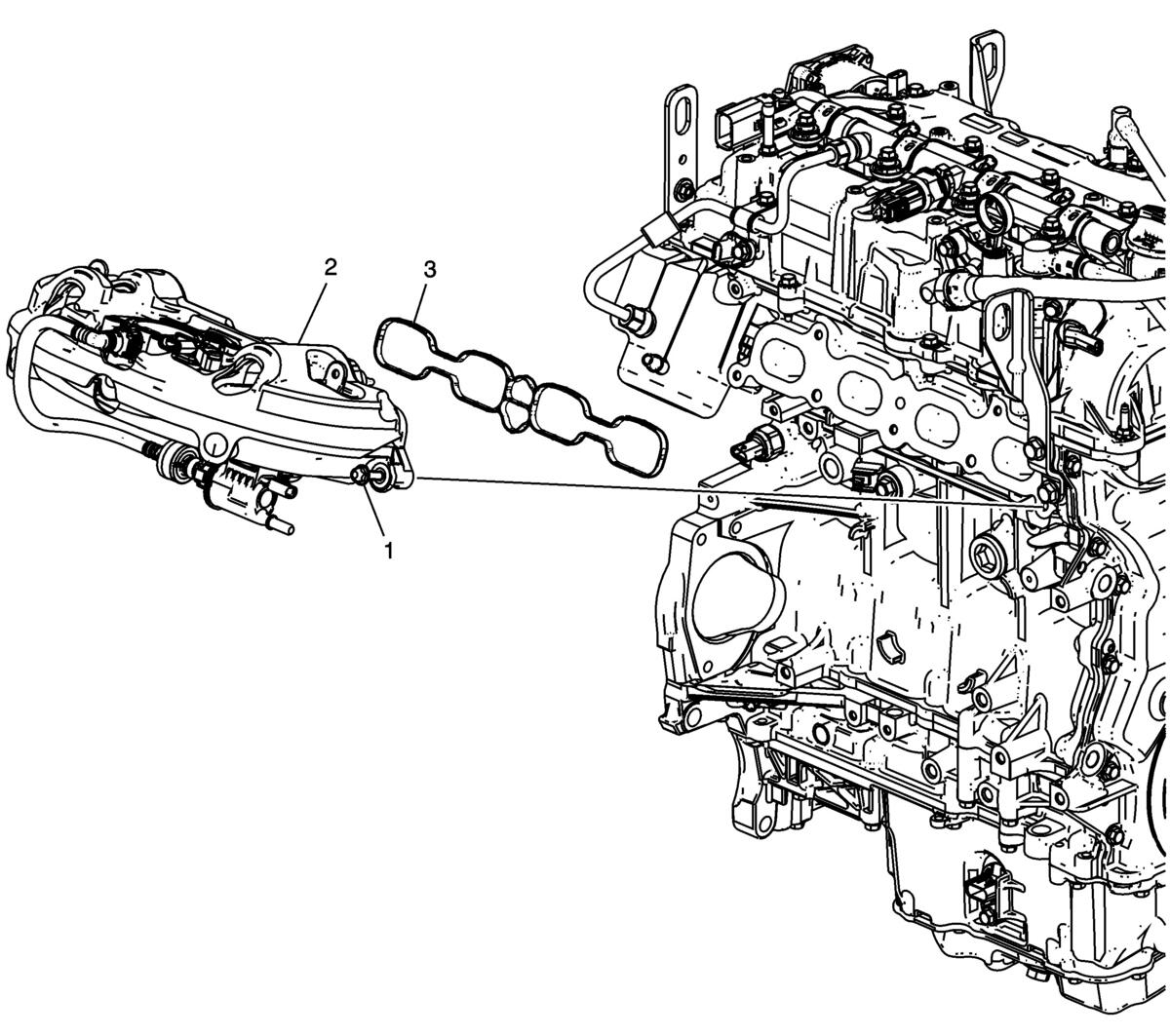

| Callout | Component Name |
|---|---|
| 1 | Intake Manifold Assembly Bolt (Qty: 5)
NOTE:
Bolt retainers keep the bolts in position on the assembly. If the bolts are removed from the assembly, the 2 shorter bolts go to the outside lower locations. Procedure Loosen bolts until disengaged from mount location. |
| 2 | Intake Manifold Assembly |
| 3 | Intake Manifold Gasket |
