Intake Manifold Installation
WARNING: This page is about a different variant/trim than selected.

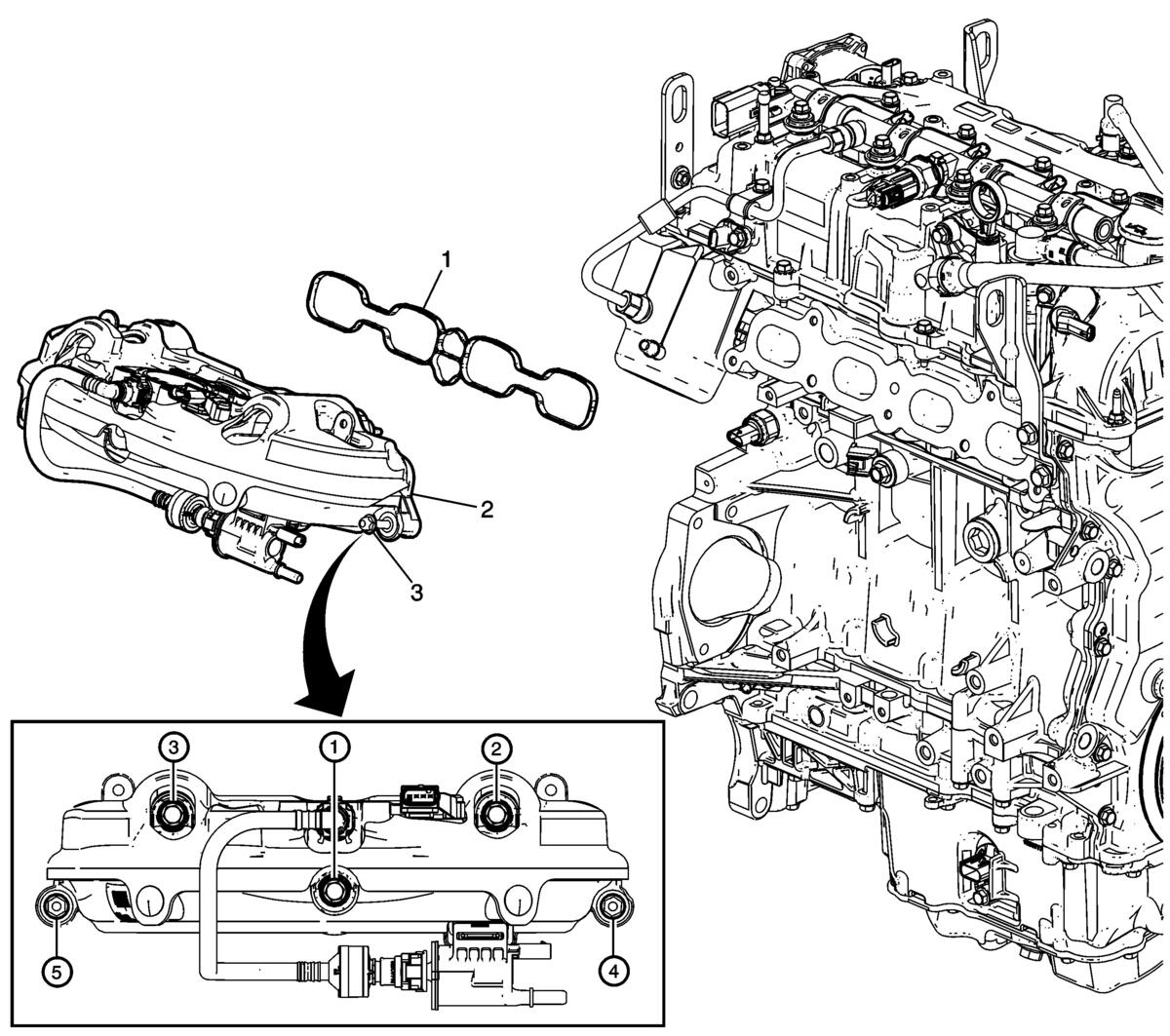

| Callout | Component Name |
|---|---|
| 1 | Intake Manifold Gasket
NOTE:
Use a NEW gasket. Ensure the mating surfaces are clean and free of debris. |
| 2 | Intake Manifold Assembly |
| 3 | Intake Manifold Assembly Bolt (Qty: 5)
CAUTION:
Refer to Fastener Caution .
NOTE:
Bolt retainers keep the bolts in position on the assembly. Procedure Tighten the bolts in sequence. Tighten 12 N.m (106 lb in) |
