Camshaft Actuator Removal

WARNING: This page is about a different variant/trim than selected.

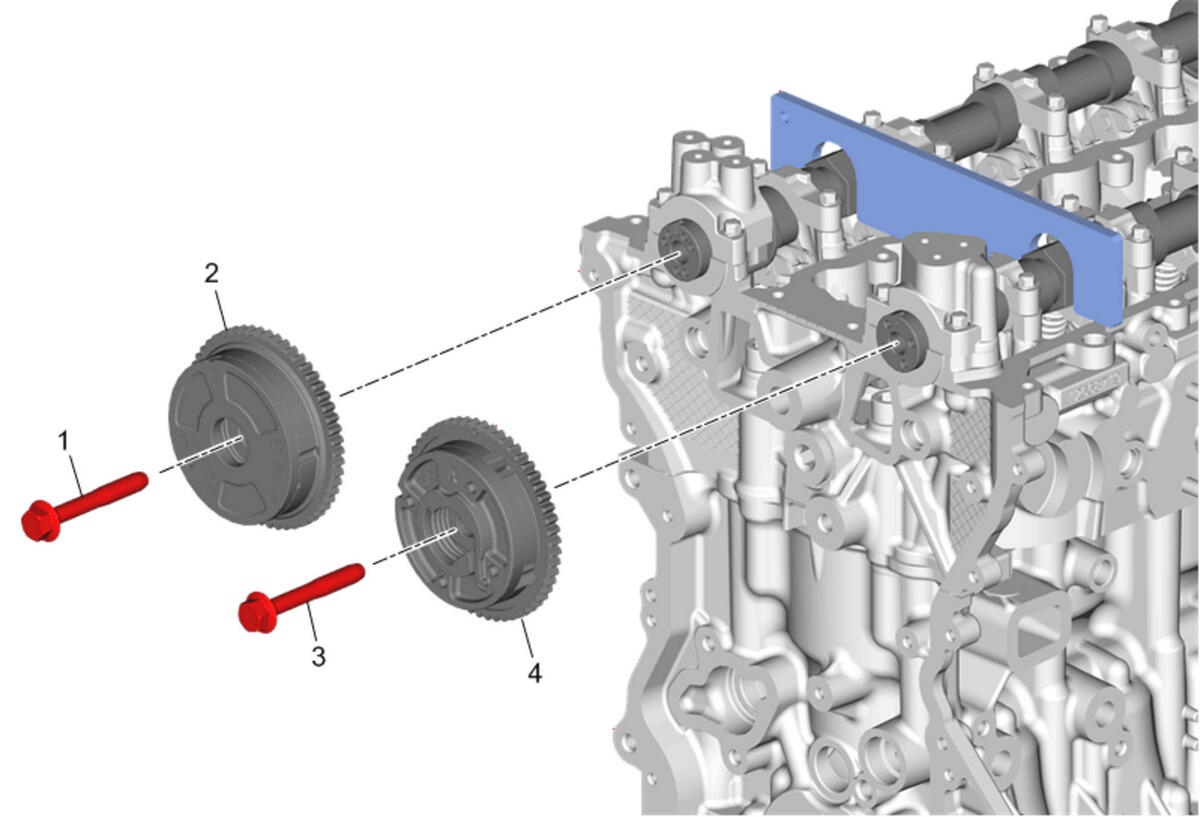

Fig 1: Camshaft Actuator
GM4602202Courtesy of GENERAL MOTORS COMPANY
Camshaft Actuator Removal

Callout Component Name
Preliminary Procedure
Install the EN-51367  camshaft locking tool.
Special Tools
EN-51367  Camshaft Locking Tool
Equivalent regional tools: Special Tools .
1 Camshaft Position Actuator Bolt
NOTE:

Discard the bolt.
2 Camshaft Position Actuator
3 Camshaft Position Actuator Bolt
NOTE:

Discard the bolt.
4 Camshaft Position Actuator
