Ignition Coil Installation

WARNING: This page is about a different variant/trim than selected.

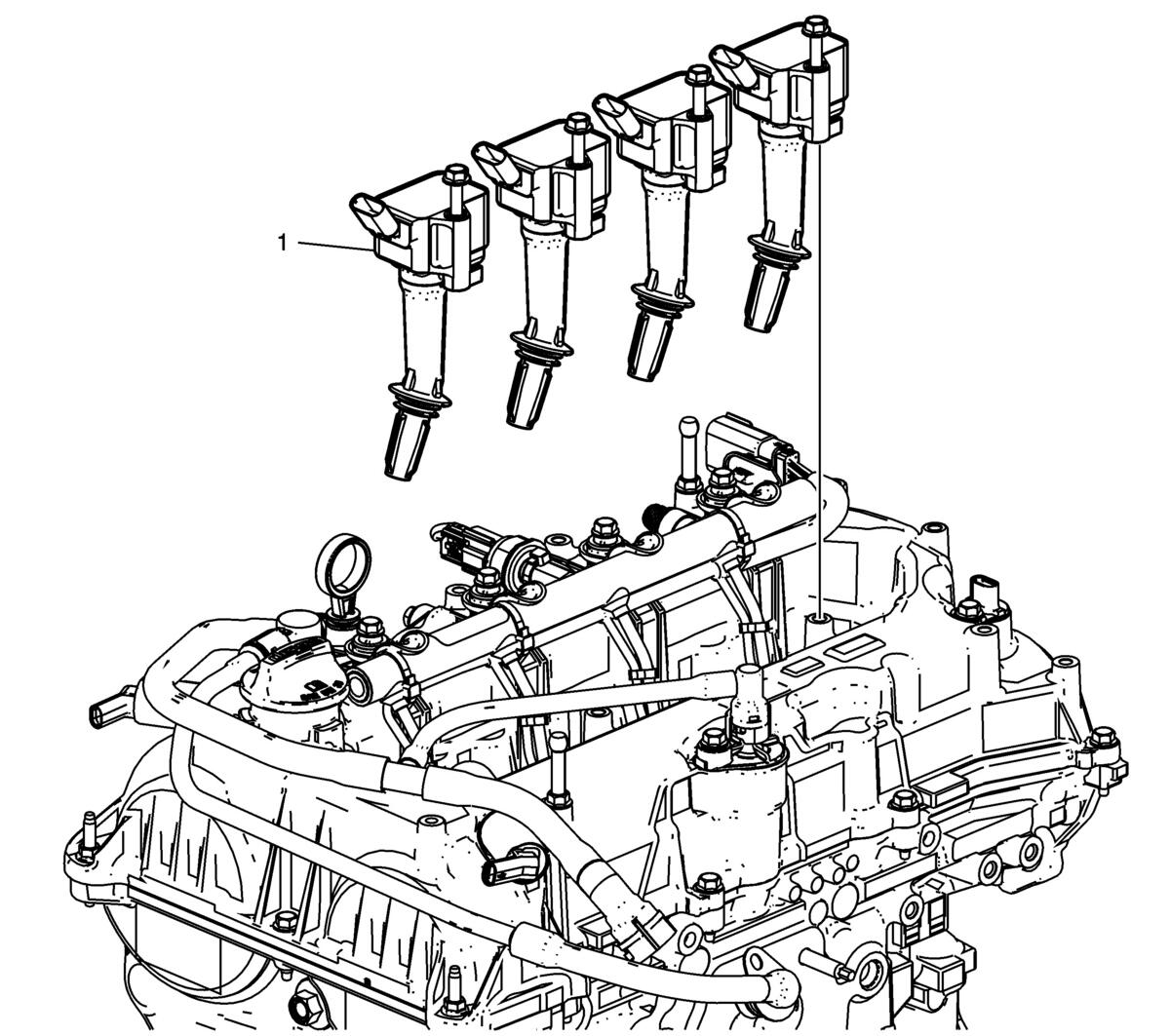

Fig 1: Ignition Coil

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Inspect the inside of the ignition coil rubber boot for a thin, even coat of grease. If there is no grease present or additional grease is necessary, apply a thin coating of dielectric grease evenly to the inside of the ignition coil rubber boot, up to a depth of 15 mm from the end of the boot. Refer to Adhesives, Fluids, Lubricants, and Sealers . Remove any excess grease from around the end of the boot, and ensure there is not an excessive amount within the boot.
1	Ignition Coil Assembly (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)

Callout

Component Name

Preliminary Procedure

Inspect the inside of the ignition coil rubber boot for a thin, even coat of grease.
If there is no grease present or additional grease is necessary, apply a thin coating of dielectric grease evenly to the inside of the ignition coil rubber boot, up to a depth of 15 mm from the end of the boot. Refer to Adhesives, Fluids, Lubricants, and Sealers .
Remove any excess grease from around the end of the boot, and ensure there is not an excessive amount within the boot.

Ignition Coil Assembly (Qty: 4)

CAUTION:

Tighten
10 N.m (89 lb in)
