Engine Oil Cooler Installation
WARNING: This page is about a different variant/trim than selected.

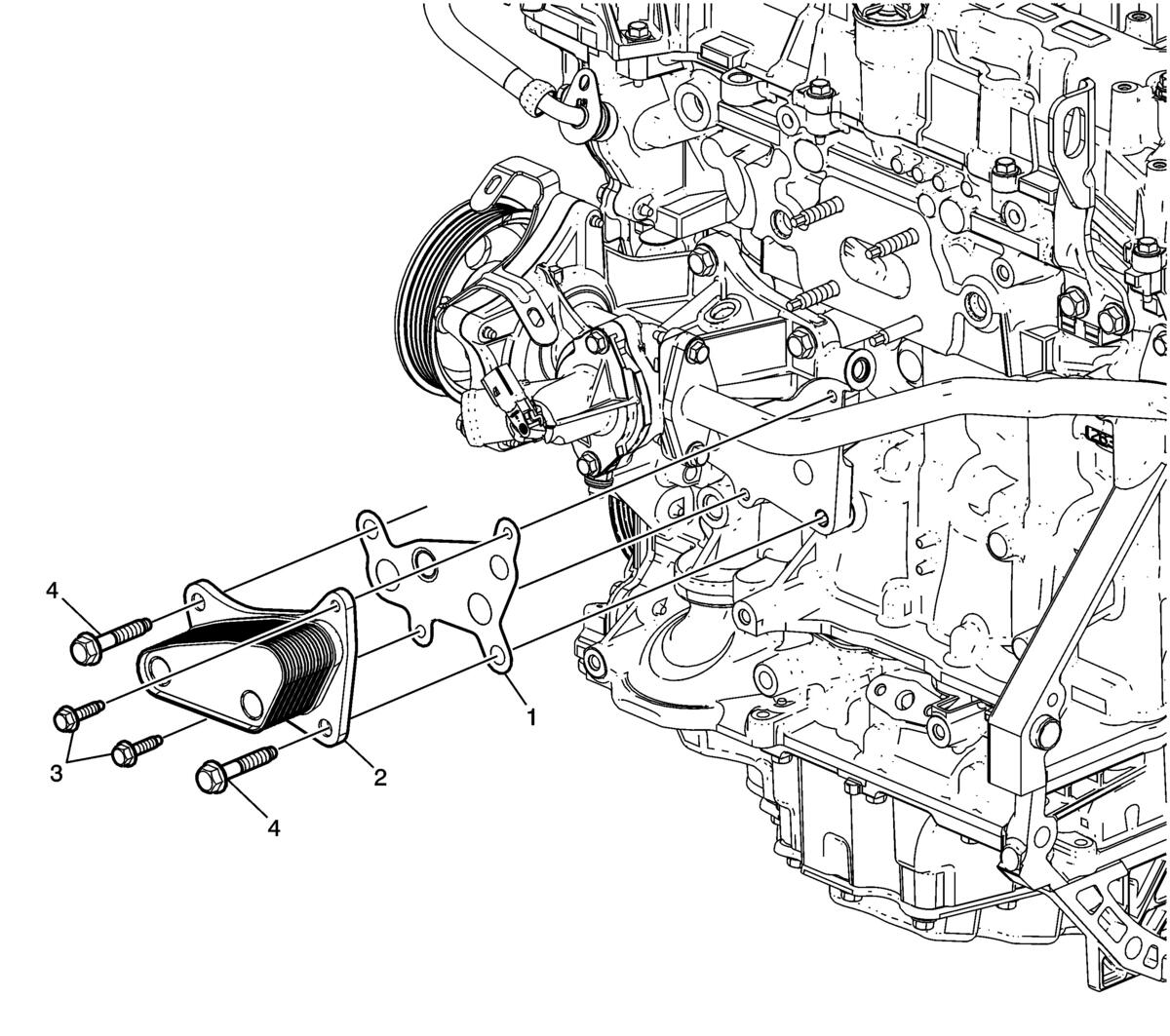

| Callout | Component Name |
|---|---|
| 1 | Engine Oil Cooler Gasket
NOTE:
Use a NEW gasket. Ensure the mating surfaces are clean and free of debris. |
| 2 | Engine Oil Cooler Assembly |
| 3 | Engine Oil Cooler Assembly Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 4 | Engine Oil Cooler Assembly Bolt (Qty: 2) Tighten 25 N.m (18 lb ft) |
