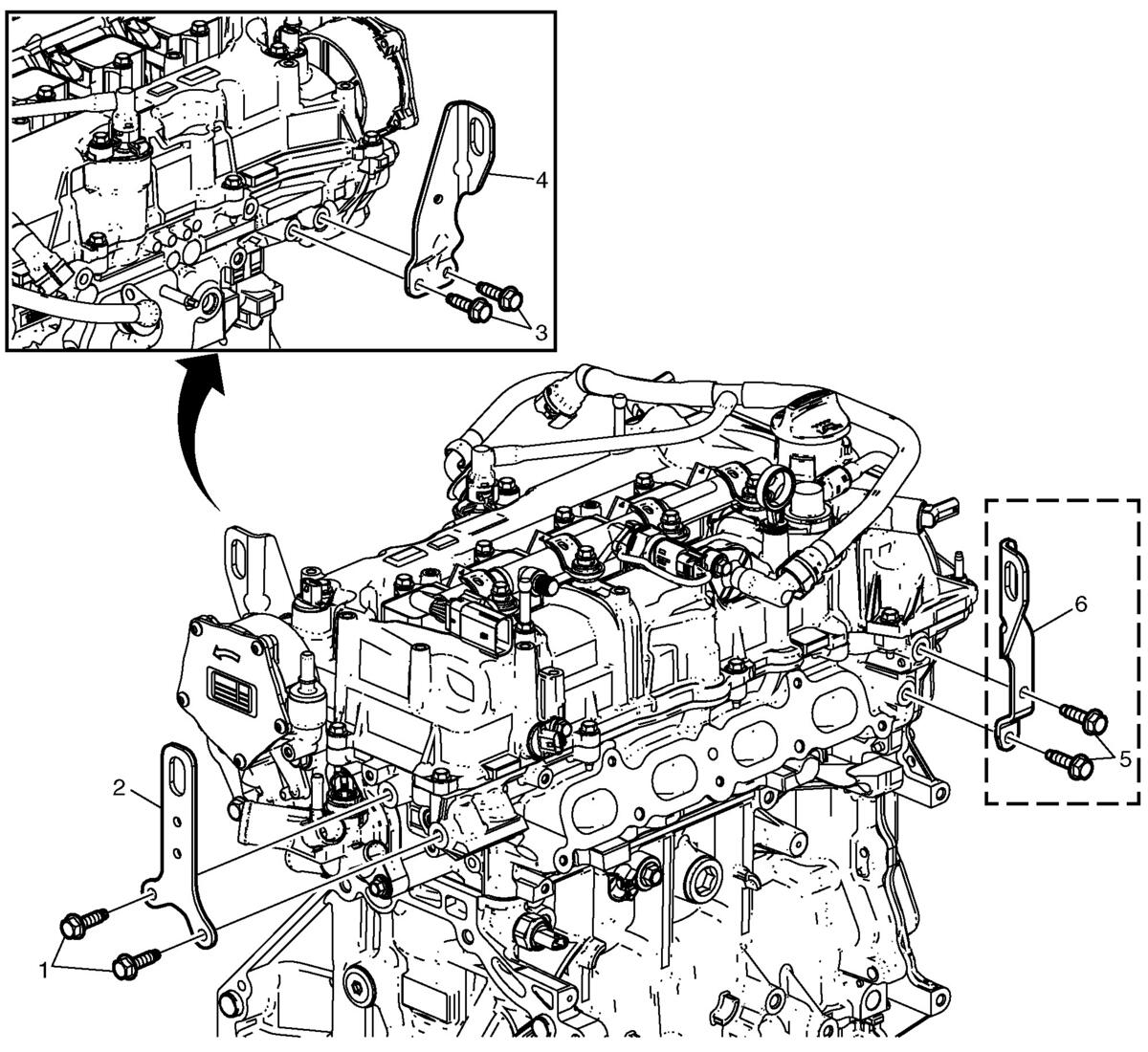

Engine Lift And Sight Shield Bracket Removal
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
Engine Lift Rear Bracket Bolt [2x] |
| 2 |
Engine Lift Rear Bracket |
| 3 |
Engine Lift Rear Bracket Bolt [2x] |
| 4 |
Engine Lift Rear Bracket |
| 5 |
Engine Lift Front Bracket Bolt [2x] - Model Dependent |
| 6 |
Engine Lift Front Bracket - Model Dependent |
