Upper Engine Block Disassemble
WARNING: This page is about a different variant/trim than selected.

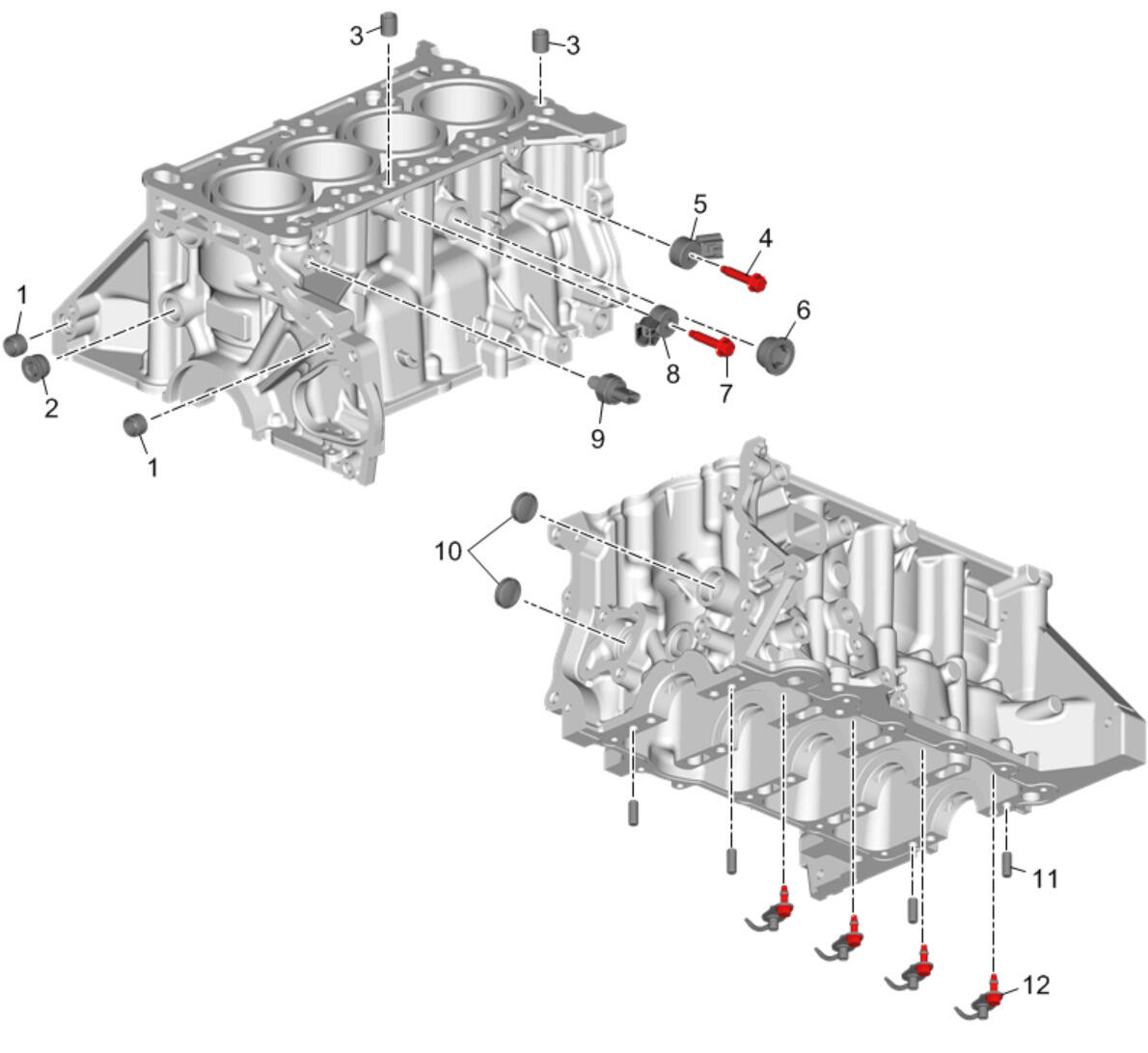

Upper Engine Block Disassemble
| Callout | Component Name |
|---|---|
| 1 | Transmission Locating Pin [2x] |
| 2 | Engine Block Oil Gallery Plug |
| 3 | Cylinder Head Locating Pin [2x] |
| 4 | Knock Sensor Bolt |
| 5 | Knock Sensor |
| 6 | Engine Coolant Heater Hole Plug |
| 7 | Knock Sensor Bolt |
| 8 | Knock Sensor |
| 9 | Engine Oil Pressure Sensor |
| 10 | Engine Block Core Hole Plug [2x] |
| 11 | Lower Crankcase Locating Pin [4x] |
| 12 | Piston Oil Nozzle [4x] |
