Lower Crankcase Disassemble

WARNING: This page is about a different variant/trim than selected.

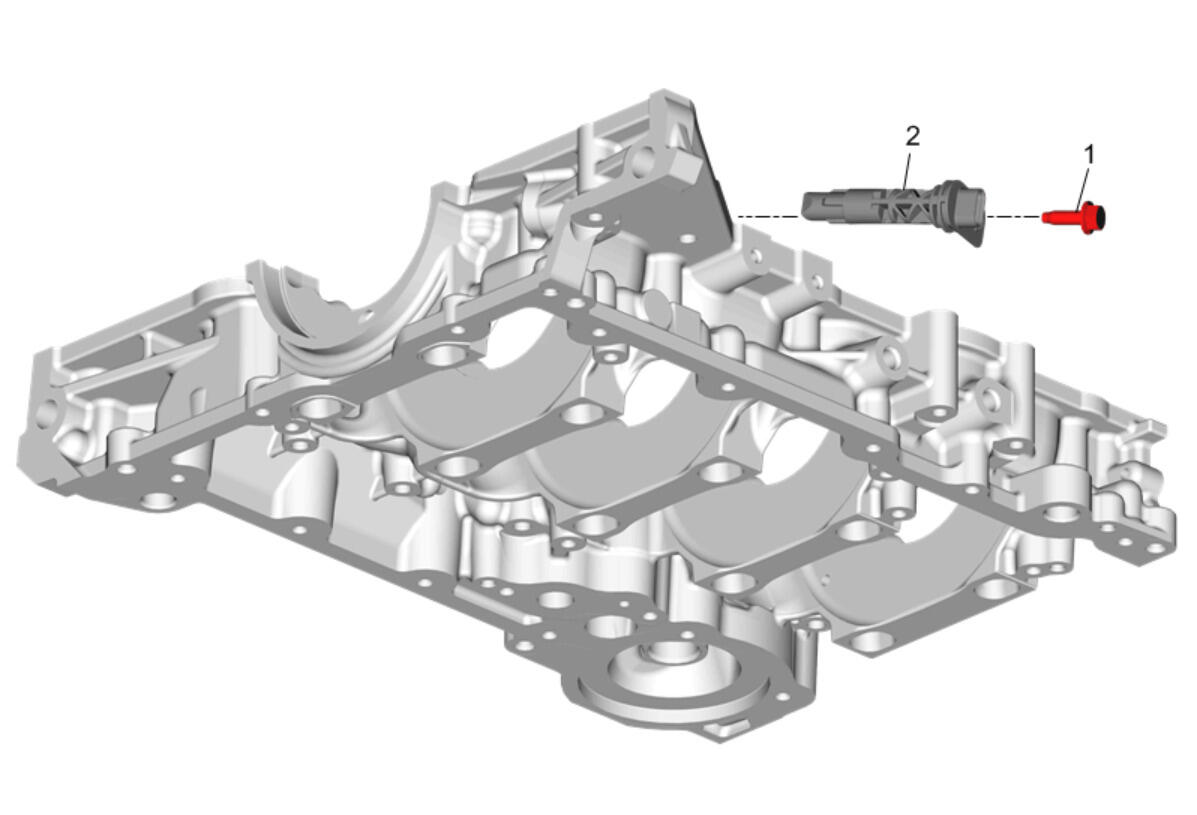

Fig 1: Lower Crankcase
GM4602214Courtesy of GENERAL MOTORS COMPANY
Lower Crankcase Disassemble

Callout Component Name
1 Crankshaft Position Sensor Bolt
2 Crankshaft Position Sensor
