Engine Block Deck Height Measurement

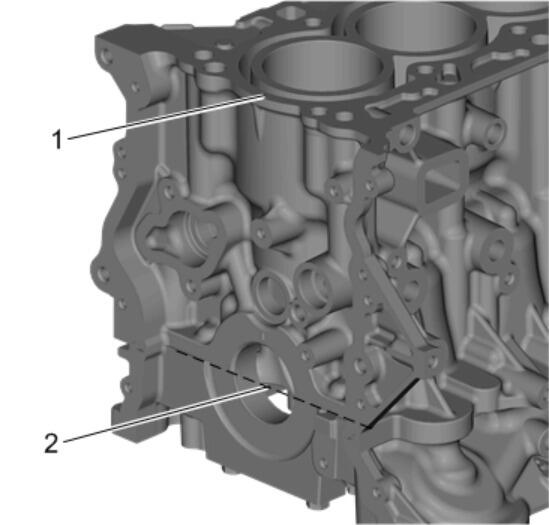

Fig 1: Engine Block Deck Height

Courtesy of GENERAL MOTORS COMPANY

Engine block deck height is measured from deck face surface (1) to crankshaft center bore (2). Measure at front and rear of the engine block. Refer to Engine Mechanical Specifications  for engine block deck height specification.
