Upper Engine Block Assemble
WARNING: This page is about a different variant/trim than selected.

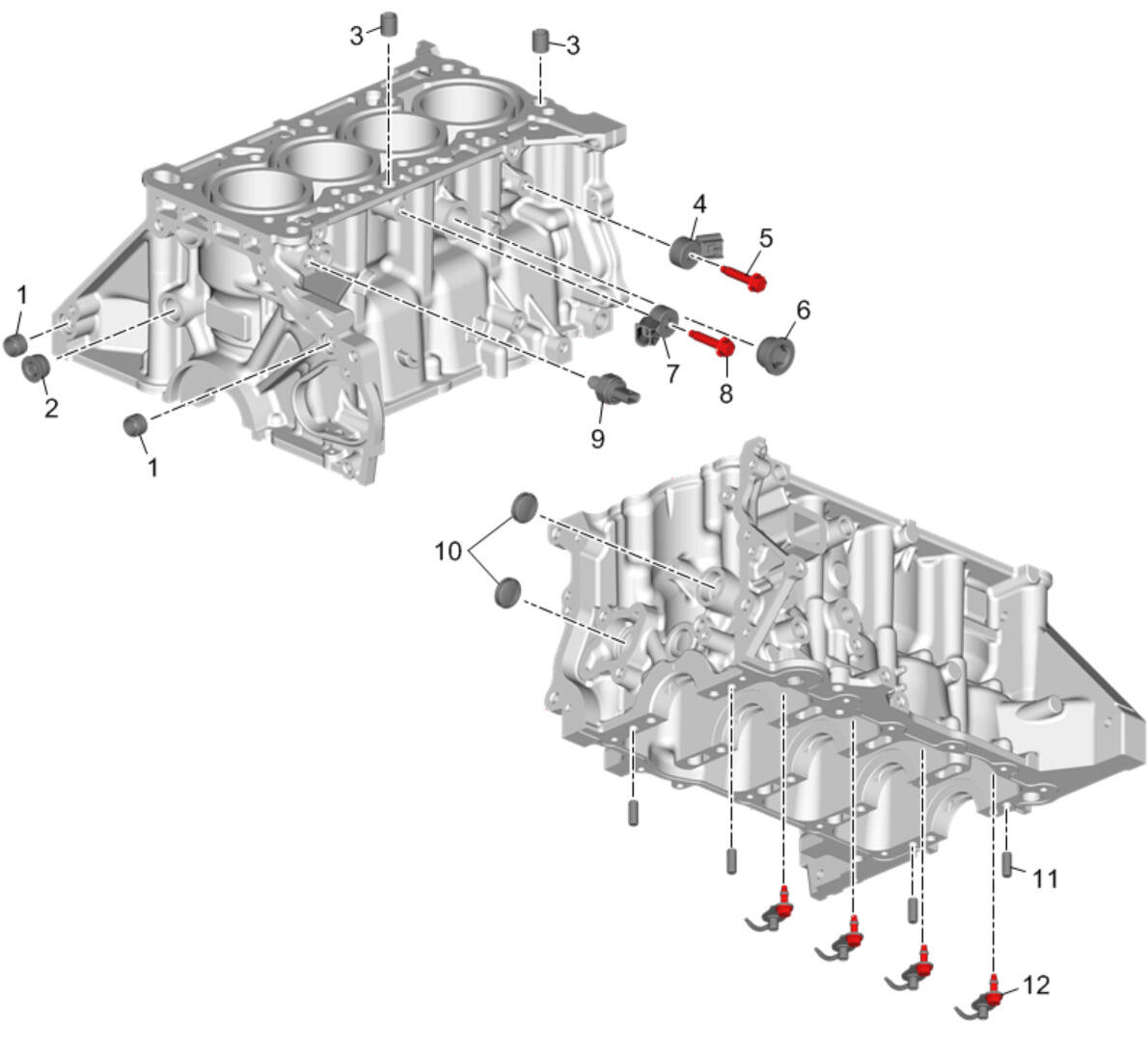

Upper Engine Block Assemble
| Callout | Component Name |
|---|---|
| Preliminary Procedure Apply sealant to all plugs prior to installation. Refer to Adhesives, Fluids, Lubricants, and Sealers . |
|
| 1 | Transmission Locating Pin [2x] Procedure Ensure Transmission locating pins are properly seated and not damaged. |
| 2 | Engine Block Oil Gallery Plug
CAUTION:
Refer to Component Fastener Tightening Caution . Tighten 65 N.m (48 lb ft) |
| 3 | Cylinder Head Locating Pin [2x] |
| 4 | Knock Sensor |
| 5 | Knock Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 6 | Engine Coolant Heater Hole Plug Tighten 60 N.m (44 lb ft) |
| 7 | Knock Sensor |
| 8 | Knock Sensor Bolt Tighten 25 N.m (18 lb ft) |
| 9 | Engine Oil Pressure Sensor Tighten 35 N.m (26 lb ft) |
| 10 | Engine Block Core Hole Plug [2x] |
| 11 | Lower Crankcase Locating Pin [4x] |
| 12 | Piston Oil Nozzle [4x] Tighten 10 N.m (89 lb in) |
