Lower Crankcase Assemble

WARNING: This page is about a different variant/trim than selected.

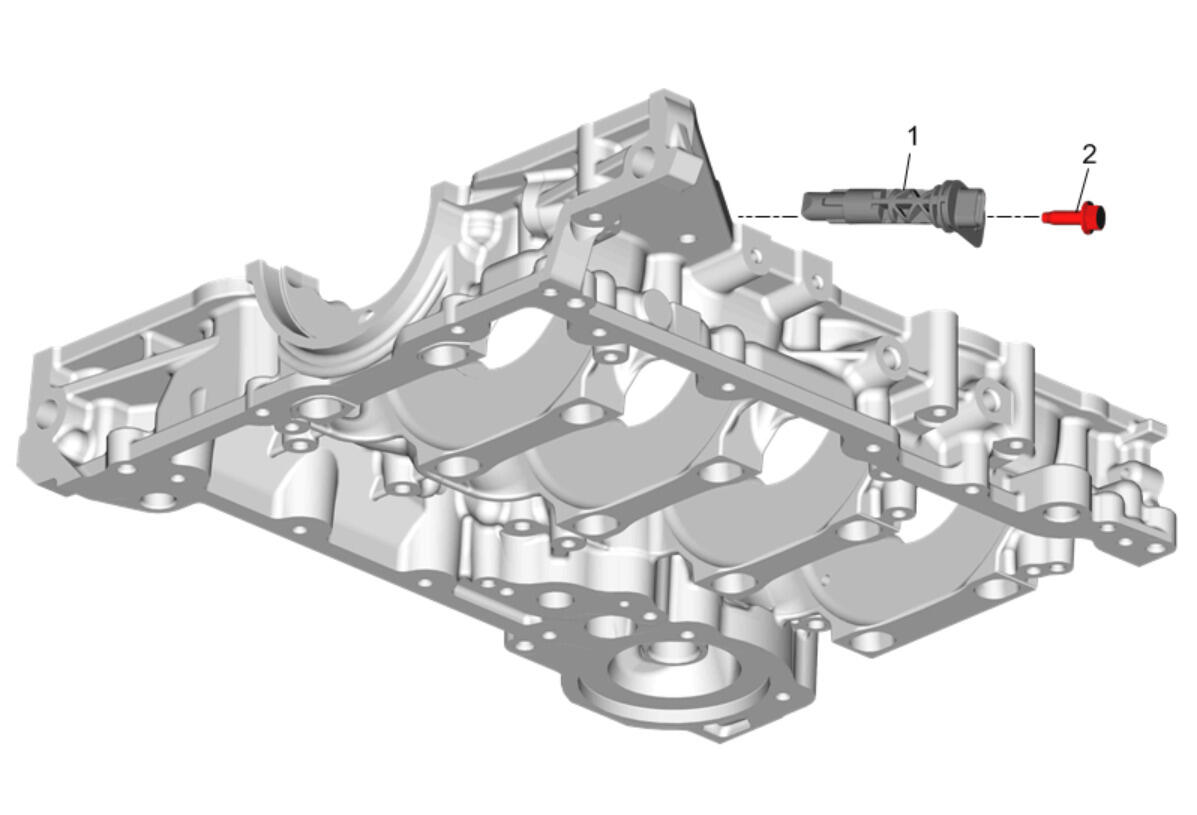

Fig 1: Lower Crankcase
GM4602217Courtesy of GENERAL MOTORS COMPANY
Lower Crankcase Assemble

Callout Component Name
1 Crankshaft Position Sensor
2 Crankshaft Position Sensor Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
