Cylinder Head Removal
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY

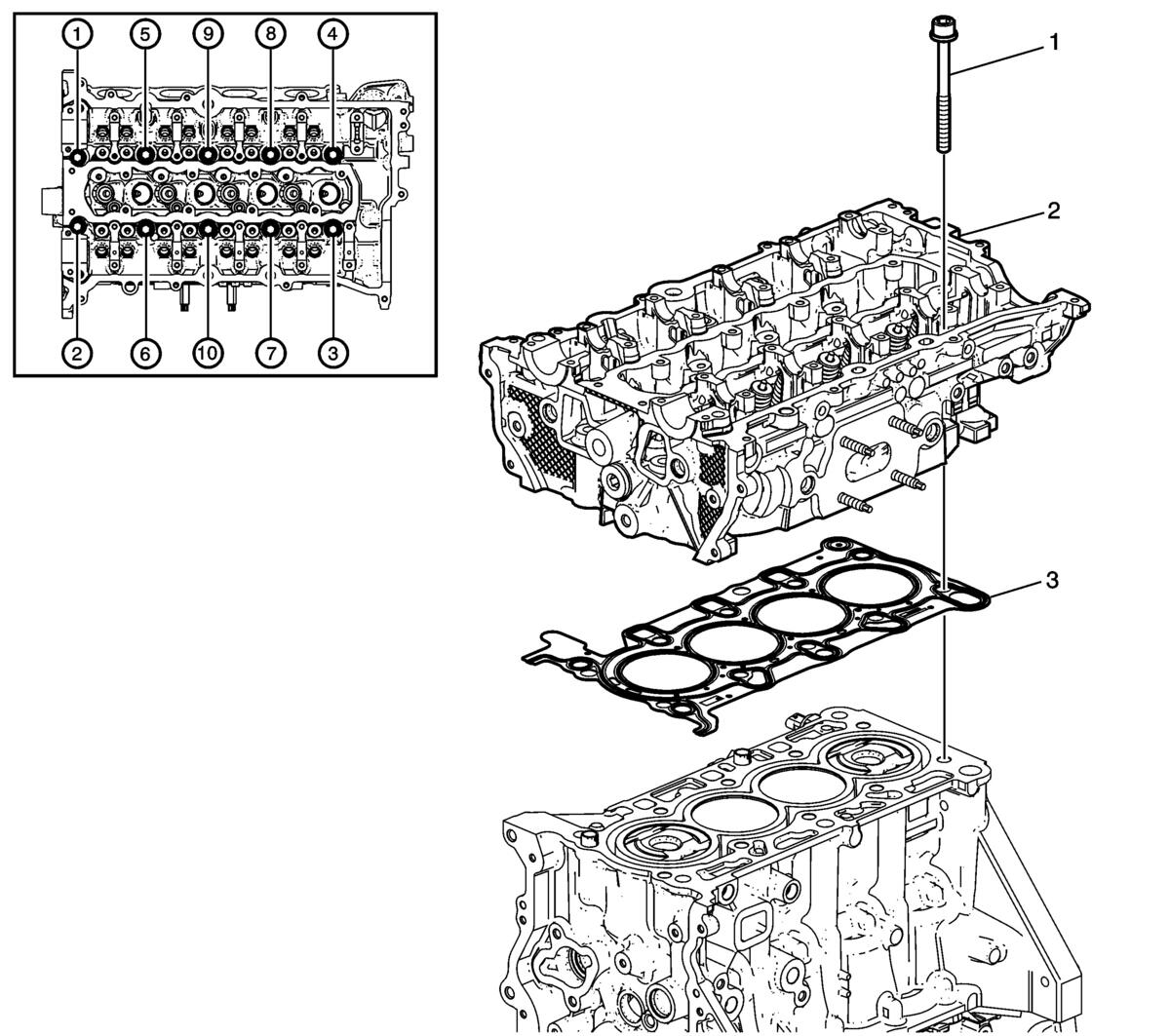

| Callout |
Component Name |
| 1 |
Cylinder Head Bolt (Qty: 10)
Procedure
Remove the bolts in sequence. Discard the bolts. |
| 2 |
Cylinder Head Assembly |
| 3 |
Cylinder Head Gasket |
