Cylinder Head Deck Height Measurement

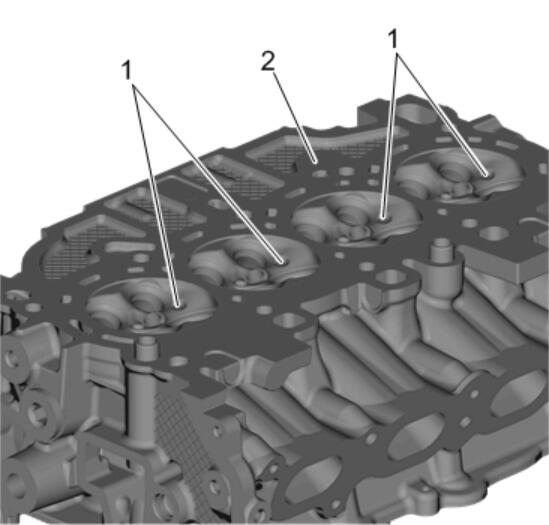

Fig 1: Cylinder Head Deck Height

Courtesy of GENERAL MOTORS COMPANY

Overall deck height is measured by calculating the average deck height measurement from the 4 pad locations (1) to the deck surface (2), refer to Engine Mechanical Specifications  for deck height specification.
