Crankshaft And Bearing Installation

WARNING: This page is about a different variant/trim than selected.

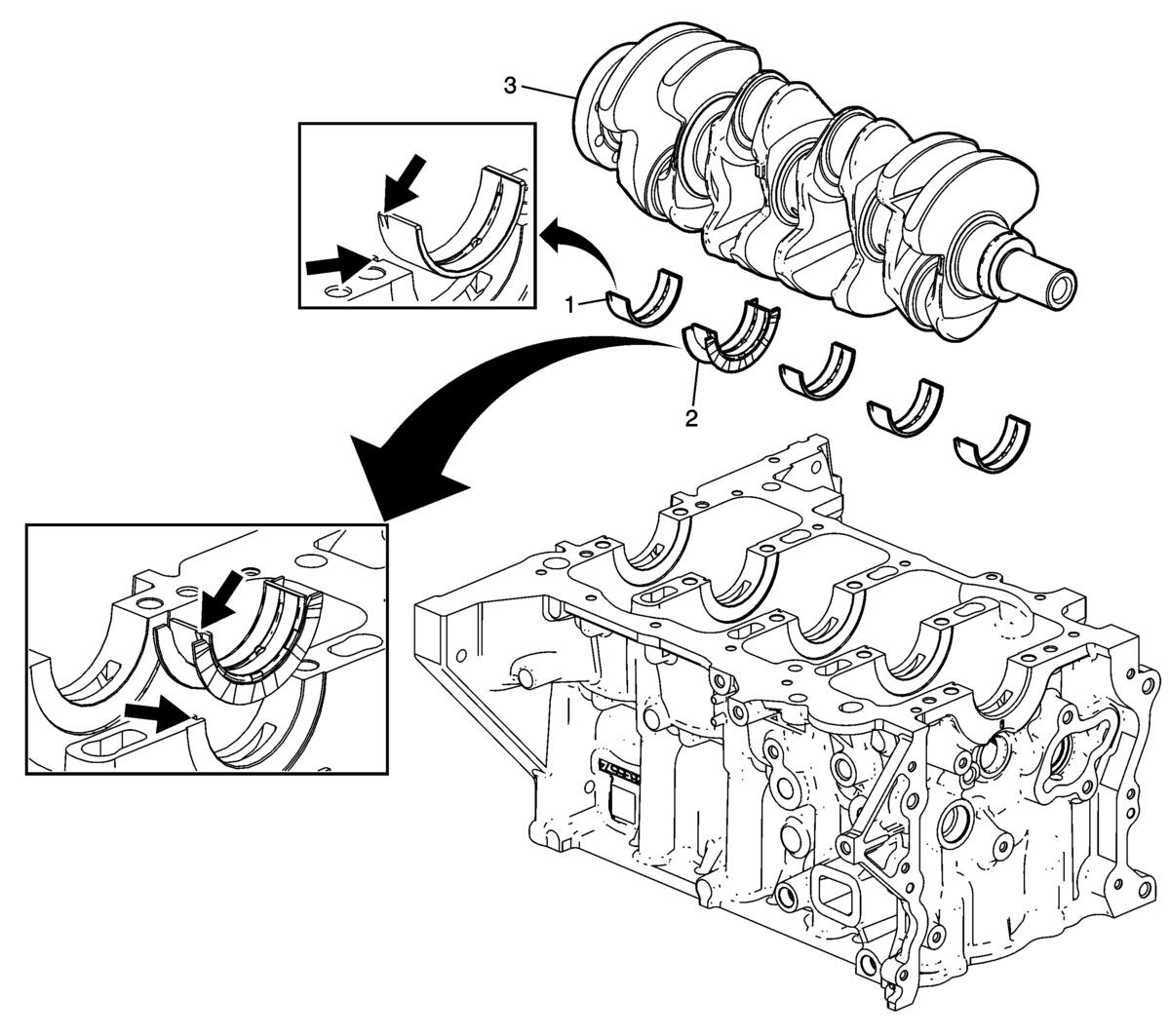

Fig 1: Crankshaft and Bearing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Crankshaft Upper Bearing (Qty: 4) NOTE: Crankshaft bearings MUST be separated, marked, or organized in a way to ensure installation to their original location and position, when suitable for use. For vehicles equipped with Start/Stop and Hybrid vehicles, the #1 upper bearing is specifically coated for durability and has a blue coloration. Procedure Ensure that the guide lug on the bearing is properly seated to the notch in the engine block for each bearing. Coat the crankshaft bearing shell with engine oil.
2	Crankshaft Thrust Bearing Procedure Ensure that the guide lug on the bearing is properly seated to the notch in the engine block. Coat the crankshaft bearing shell with engine oil.
3	Crankshaft
