Camshaft Cover Components Installation - Bottom
WARNING: This page is about a different variant/trim than selected.

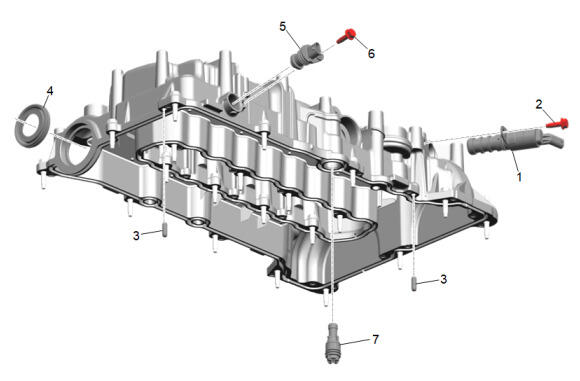

Camshaft Cover Components Installation - Bottom
| Callout | Component Name |
|---|---|
| 1 | Camshaft Position Actuator Solenoid Valve |
| 2 | Camshaft Position Actuator Solenoid Valve Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Camshaft Cover Locating Pin [2x] |
| 4 | Vacuum Pump Seal
NOTE:
Use NEW seal. Special Tools EN-45866 Seal Installer Equivalent regional tools: Special Tools . |
| 5 | Camshaft Position Sensor |
| 6 | Camshaft Position Sensor Bolt Tighten 10 N.m (89 lb in) |
