Automatic Transmission Flex Plate Removal
WARNING: This page is about a different variant/trim than selected.

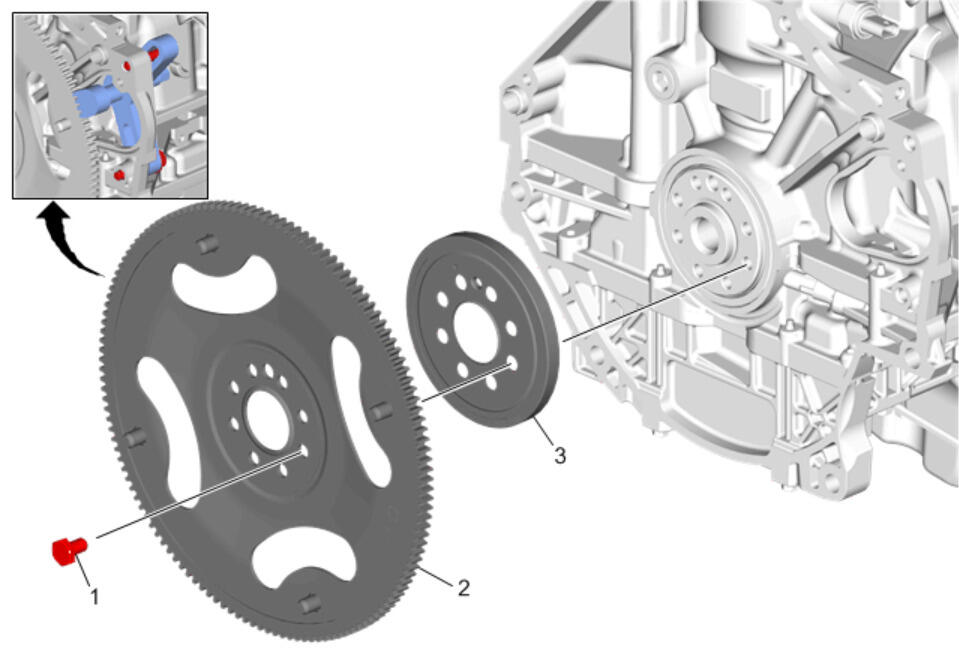

| Callout | Component Name |
|---|---|
| Preliminary Procedure Install EN-51760 holder, lock the automatic transmission flex plate via the starter ring gear. Special Tools EN-51760 Flywheel Holder For equivalent regional tools, refer to Special Tools . |
|
| 1 | Automatic Transmission Flex Plate Bolt (Qty: 8)
NOTE:
Discard the bolts. |
| 2 | Automatic Transmission Flex Plate |
| 3 | Crankshaft Position Sensor Reluctor Ring
CAUTION:
|
