Oil Pressure Diagnosis And Testing: Procedure

WARNING: This page is about a different variant/trim than selected.

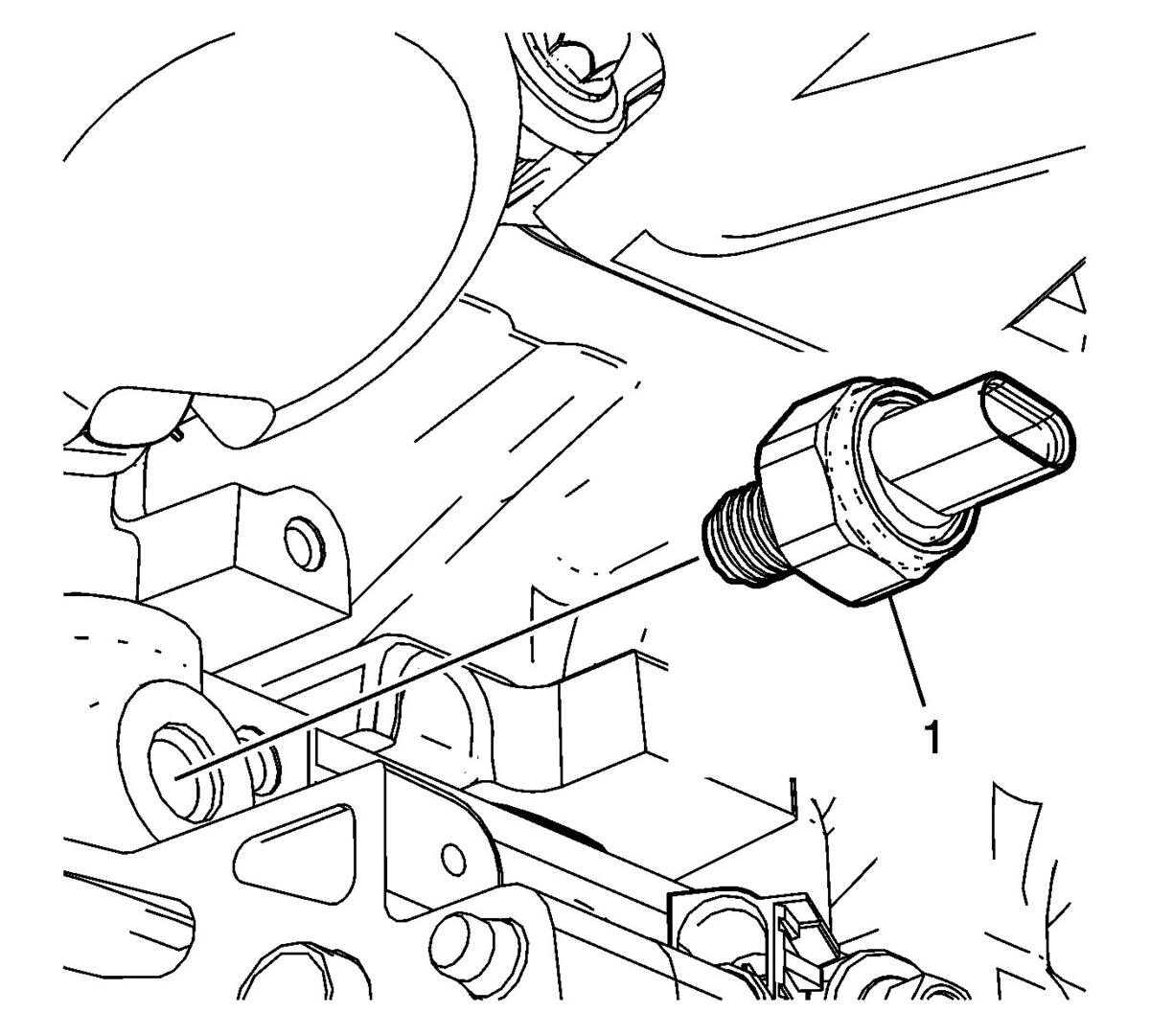

    Fig 1: Engine Oil Pressure Sensor
    GM3657733Courtesy of GENERAL MOTORS COMPANY
  1. Remove the engine oil pressure sensor (1).

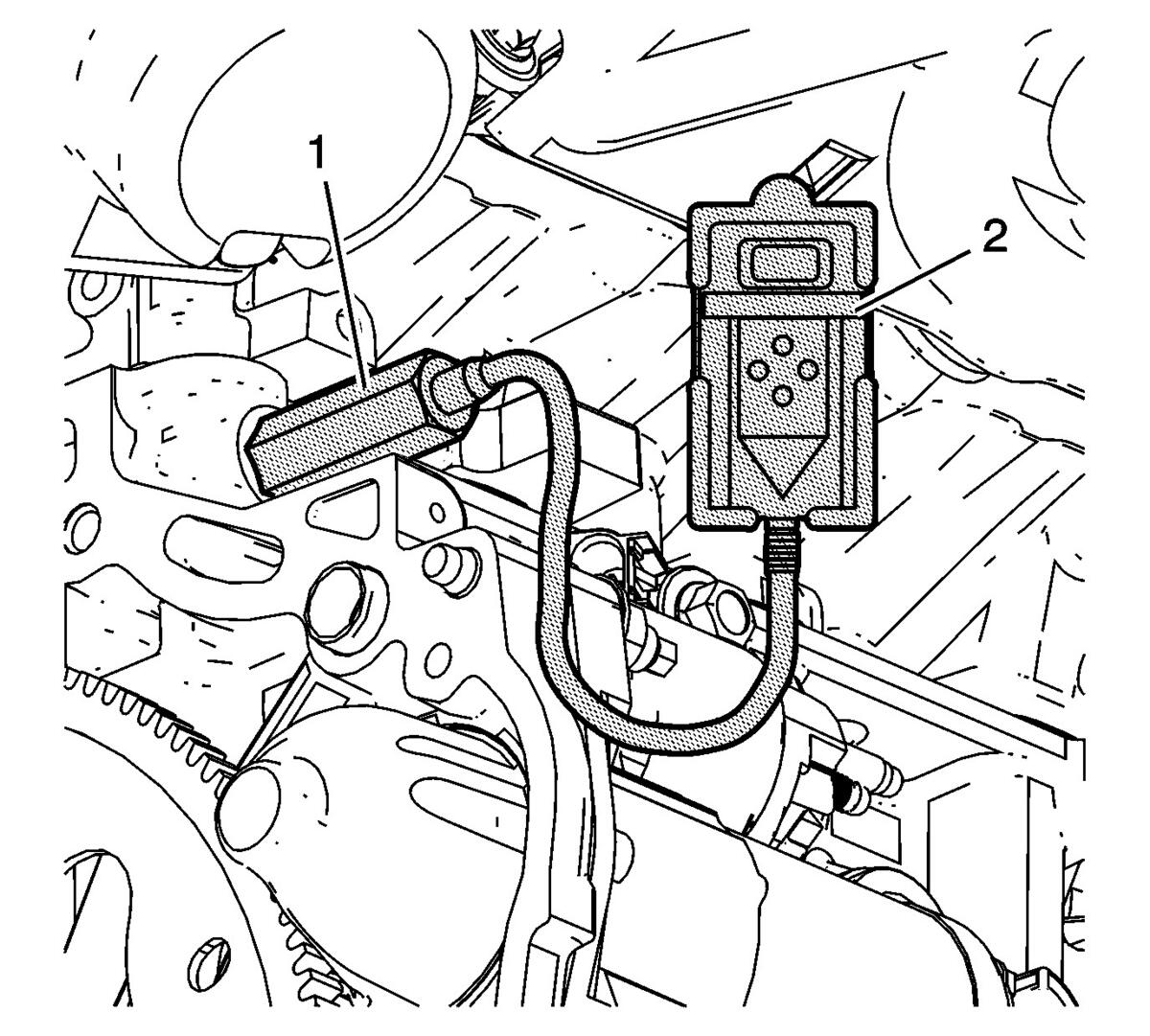

    2. Fig 2: Adapter And Gauge
    GM3657734Courtesy of GENERAL MOTORS COMPANY
  2. Install the EN-21867-850  adapter (1).
  3. Install the CH-48027  gauge (2).
  4. Start the engine.
  5. Check oil pressure.
  6. At idling speed, the oil pressure must be greater than 180 kPa (26.11 psi) and the oil temperature must be 85°C (185°F) or more.
  7. Remove the CH-48027  gauge (2).
  8. Remove the EN-21867-850  adapter (1).
  9. Turn off the engine.
    10. Fig 3: Engine Oil Pressure Sensor
    GM3657733Courtesy of GENERAL MOTORS COMPANY
  10. Install the engine oil pressure sensor (1).
  11. Tighten the sensor to 35 N.m (26 lb ft).
  12. Check the engine oil level.
