Drive Belt Tensioner Diagnosis

WARNING: This page is about a different variant/trim than selected.

Diagnosis consists of a function check on the automatic belt tensioner and a visual check on the belt and the components linked to the belt.

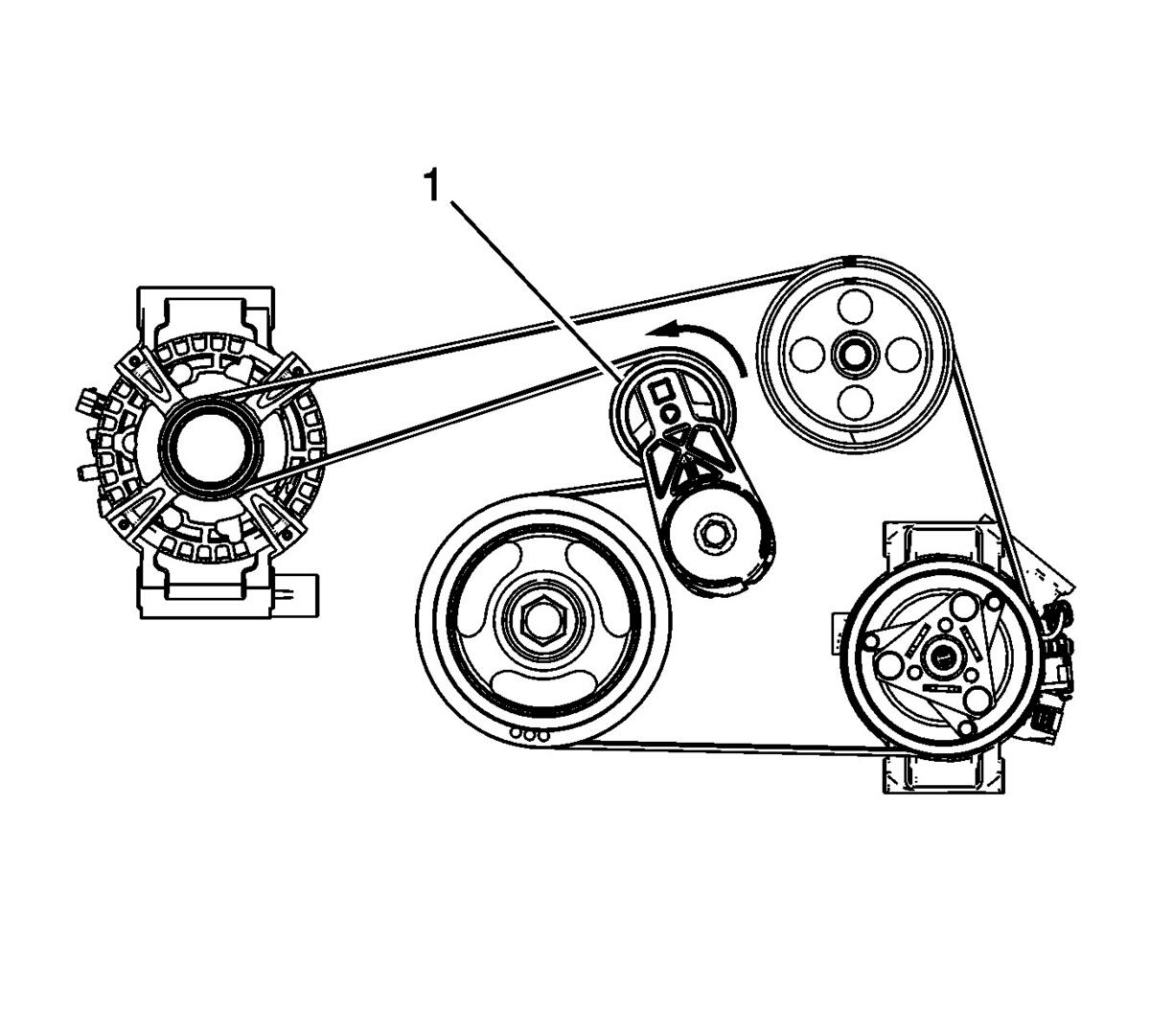

    Fig 1: Applying Tension To Belt Tensioner
    GM3655938Courtesy of GENERAL MOTORS COMPANY
  1. Apply the tension to the belt tensioner via the cast projection (1) in the direction of the arrow, counterclockwise, and allow to slide back slowly.
  2. The tensioner must slide back to the initial position.
