Crankcase Ventilation System Description: Operation

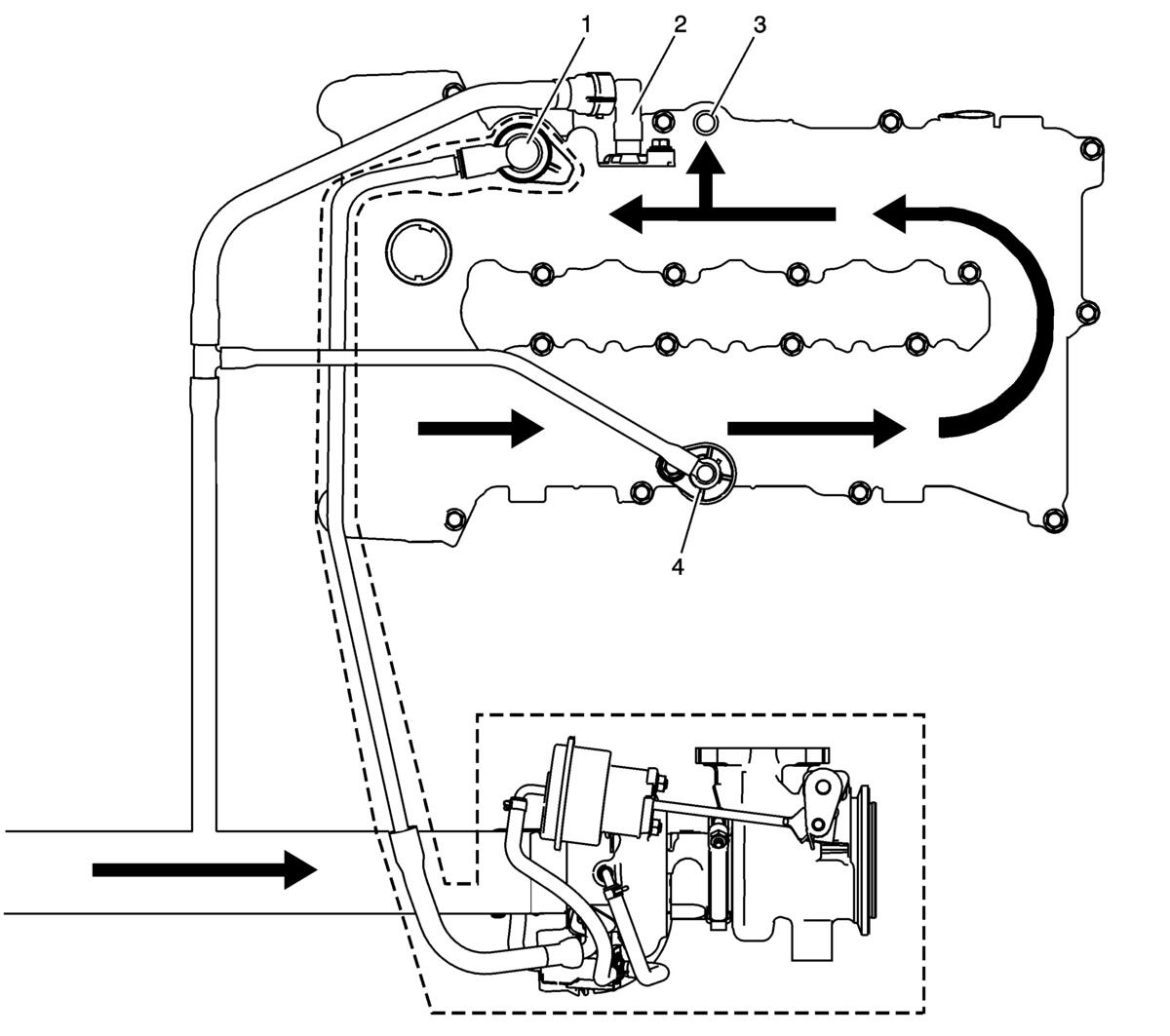

Fresh air is brought into the engine through the positive crankcase ventilation (PCV) valve (4) as long as the crankcase is under vacuum. The primary control is through the PCV orifice (3) which meters the flow into intake manifold, at a rate depending on manifold vacuum. The PCV orifice is an integral part of the camshaft cover. Under certain operating conditions, the system is designed to allow excessive amounts of blow by gases to flow through the PCV valves (1 or 2) depending on if the engine is in boost mode or excessive crankcase pressure is detected and then routed into the intake system to be consumed by normal combustion.
Turbo Applications:
During normal operating conditions the PCV gases are routed using PCV valve (3) and the internal passage within the camshaft cover. When the Turbo is active, check valve (3) is closed and check valve (1) opens and PCV gases are routed back to the turbocharger to be consumed by normal combustion. If the engine sees excessive positive crankcase pressure check valve (2) opens and the pressure is routed to the air inlet to be reintroduced into the engine.
Non-Turbo Applications:
During normal operating conditions the PCV gases are routed using check valve (3) and the internal passage within the camshaft cover. If the engine sees excessive positive crankcase pressure check valve (2) opens and the pressure is routed to the air inlet. Also for non-turbo applications check valve (1) does not exist.
In any application check valve (2) is only used if the engine sees excessive crankcase pressure.
