Water Pump and Components
WARNING: This page is about a different variant/trim than selected.

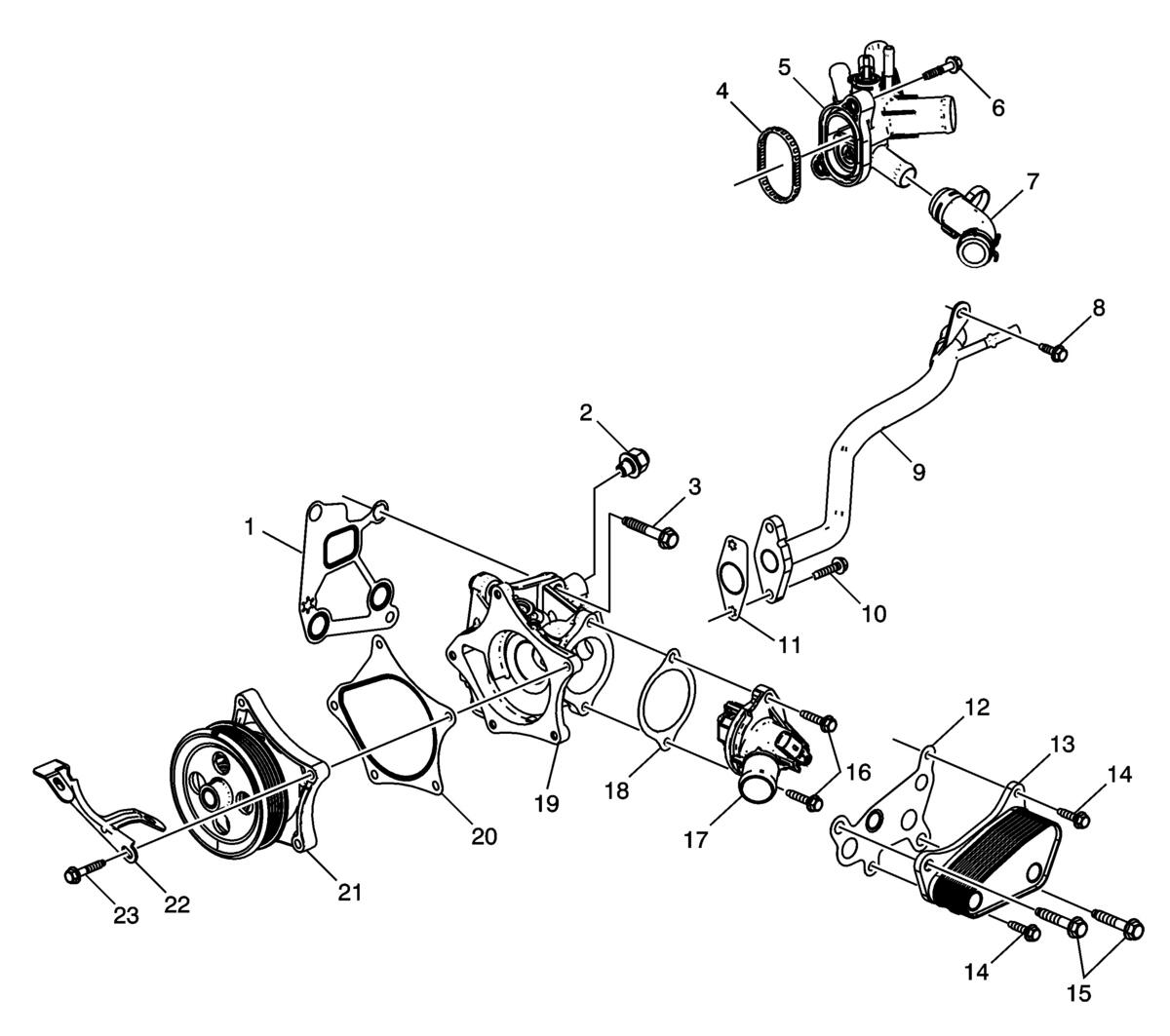

| Callout | Component Name |
|---|---|
| 1 | Water Pump Housing Gasket |
| 2 | Turbocharger Oil Feed Pipe Fitting |
| 3 | Water Pump Rear Housing Bolt (Qty: 2) |
| 4 | Water Outlet Gasket |
| 5 | Water Outlet Assembly |
| 6 | Water Outlet Assembly Bolt (Qty: 2) |
| 7 | Thermal Bypass Hose |
| 8 | Thermal Bypass Pipe Assembly Bolt (Qty: 1) |
| 9 | Thermal Bypass Pipe Assembly |
| 10 | Thermal Bypass Pipe Assembly Bolt (Qty: 2) |
| 11 | Thermal Bypass Pipe Gasket |
| 12 | Engine Oil Cooler Gasket |
| 13 | Engine Oil Cooler Assembly |
| 14 | Engine Oil Cooler Assembly Bolt (Qty: 2) |
| 15 | Engine Oil Cooler Assembly Bolt (Qty: 2) |
| 16 | Engine Coolant Thermostat Housing Bolt |
| 17 | Engine Coolant Thermostat Housing Assembly |
| 18 | Engine Coolant Thermostat Housing Gasket |
| 19 | Water Pump Rear Housing |
| 20 | Water Pump Gasket |
| 21 | Water Pump Housing Assembly |
| 22 | ECM Engine Wiring Harness Bracket |
| 23 | Water Pump Housing Assembly Bolt (Qty: 5) |
