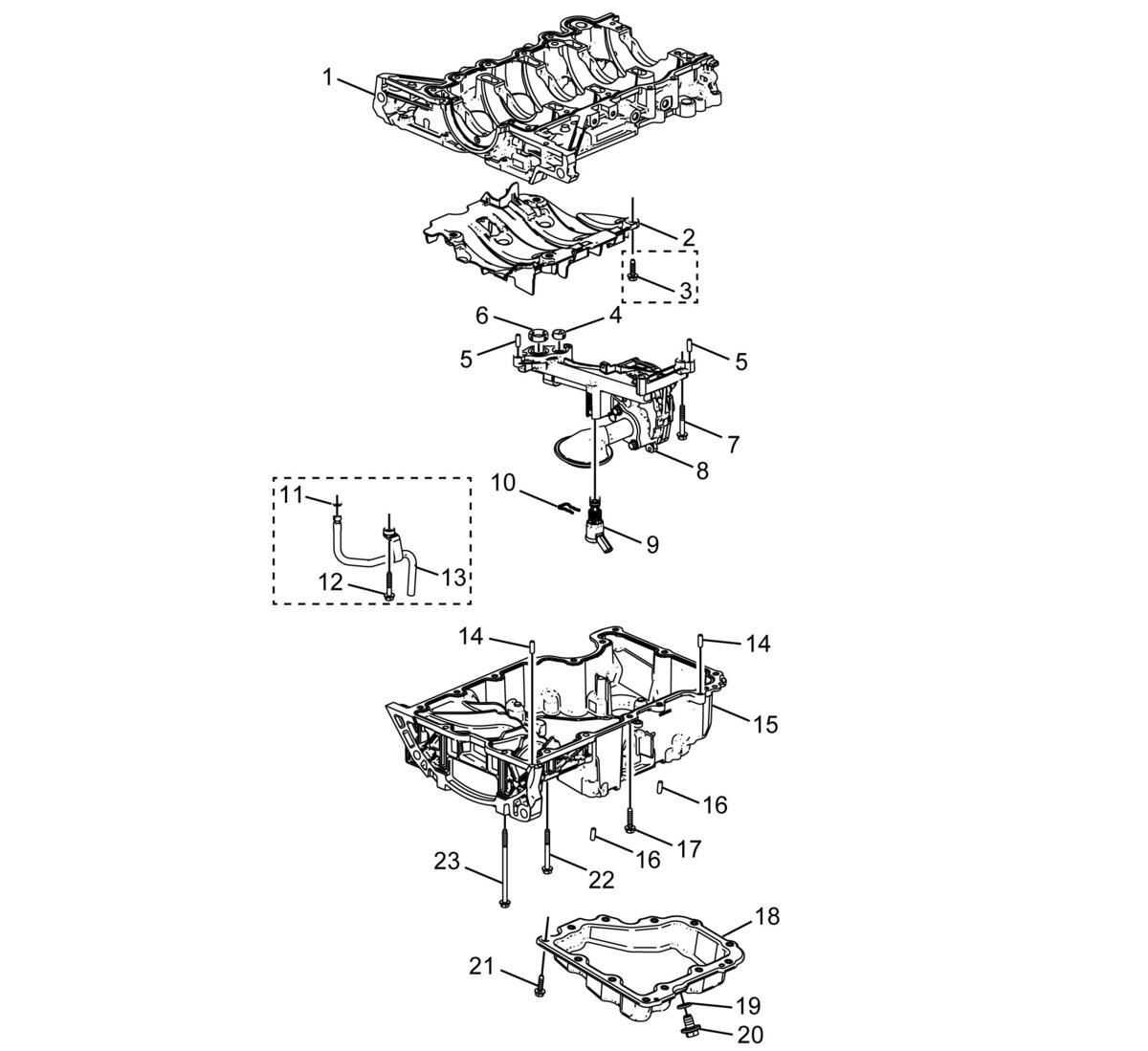

Oil Pan and Components - FWD
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Lower Crankcase |
| 2 | Crankshaft Oil Deflector |
| 3 | Crankshaft Oil Deflector Bolt [3x] |
| 4 | Oil Pump Gasket |
| 5 | Oil Pump Locating Pin |
| 6 | Oil Pump Gasket |
| 7 | Oil Pump Bolt [4x] |
| 8 | Oil Pump |
| 9 | Oil Pump Flow Control Solenoid Valve |
| 10 | Oil Pump Flow Control Solenoid Valve Retainer |
| 11 | Positive Crankcase Ventilation Oil Separator Seal |
| 12 | Positive Crankcase Ventilation Oil Separator Drain Pipe Bolt |
| 13 | Positive Crankcase Ventilation Oil Separator Drain Pipe |
| 14 | Oil Pan Locating Pin [2x] |
| 15 | Upper Oil Pan |
| 16 | Oil Pan Locating Pin [2x] |
| 17 | Oil Pan Bolt [12x] |
| 18 | Lower Oil Pan |
| 19 | Oil Pan Drain Plug Seal |
| 20 | Oil Pan Drain Plug |
| 21 | Lower Oil Pan Bolt [12x] |
| 22 | Oil Pan Bolt [2x] |
| 23 | Oil Pan Bolt [2x] |
