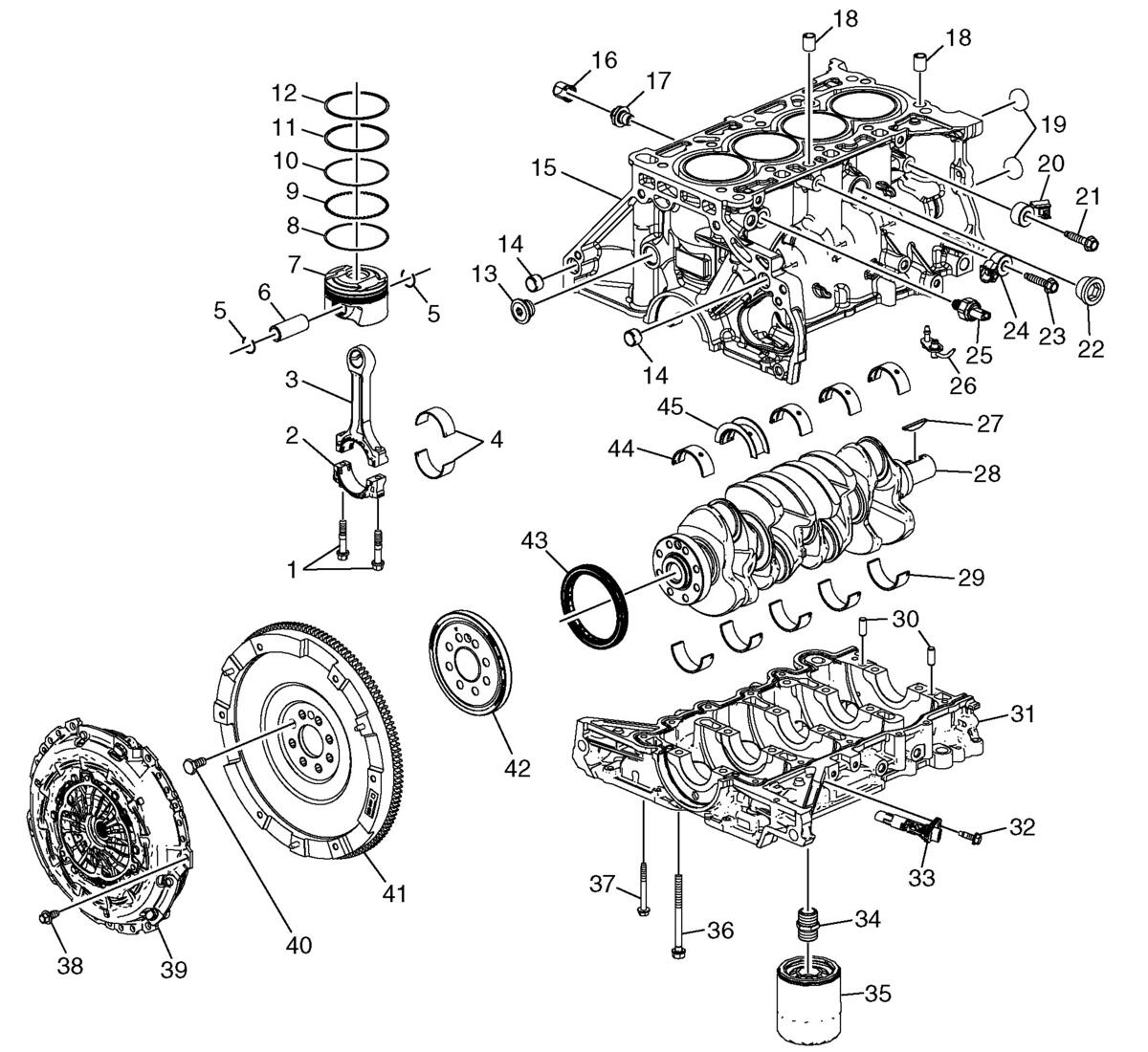

Engine Block and Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Connecting Rod Bolt[8x] |
| 2 | Connecting Rod Cap[4x] |
| 3 | Connecting Rod[4x] |
| 4 | Connecting Rod Bearing[4x] |
| 5 | Piston Pin Retainer [8x] |
| 6 | Piston Pin[4x] |
| 7 | Piston[4x] |
| 8 | Piston Oil Ring Rail[4x] |
| 9 | Piston Oil Ring Rail Spacer[4x] |
| 10 | Piston Oil Ring Rail[4x] |
| 11 | Piston Compression Lower Ring[4x] |
| 12 | Piston Compression Upper Ring [4x] |
| 13 | Engine Block Oil Gallery Plug |
| 14 | Transmission Locating Pin[2x] |
| 15 | Engine Block |
| 16 | Turbocharger Oil Feed Pipe Clip |
| 17 | Turbocharger Pipe Fitting |
| 18 | Cylinder Head Locating Pin[2x] |
| 19 | Engine Block Core Hole Plug[2x] |
| 20 | Knock Sensor |
| 21 | Knock Sensor Bolt |
| 22 | Engine Coolant Heater Hole Plug |
| 23 | Knock Sensor Bolt |
| 24 | Knock Sensor |
| 25 | Engine Oil Pressure Sensor |
| 26 | Piston Oil Nozzle[4x] |
| 27 | Crankshaft Balancer Key |
| 28 | Crankshaft |
| 29 | Crankshaft Lower Bearing[5x] |
| 30 | Lower Crankcase Locating Pin[4x] |
| 31 | Lower Crankcase |
| 32 | Crankshaft Position Sensor Bolt |
| 33 | Crankshaft Position Sensor |
| 34 | Oil Filter Fitting |
| 35 | Oil Filter |
| 36 | Lower Crankcase Bolt[10x] |
| 37 | Lower Crankcase Bolt[13x] |
| 38 | Clutch Pressure Plate Bolt[6x] |
| 39 | Clutch Pressure Plate |
| 40 | Engine Flywheel Bolt[8x] |
| 41 | Engine Flywheel |
| 42 | Crankshaft Position Sensor Reluctor Ring |
| 43 | Crankshaft Rear Oil Seal |
| 44 | Crankshaft Upper Bearing[4x] |
| 45 | Crankshaft Thrust Upper Bearing |
