Turbocharger Wastegate Regulator Solenoid Valve Hose Replacement (Compressor Inlet To Solenoid)

WARNING: This page is about a different variant/trim than selected.

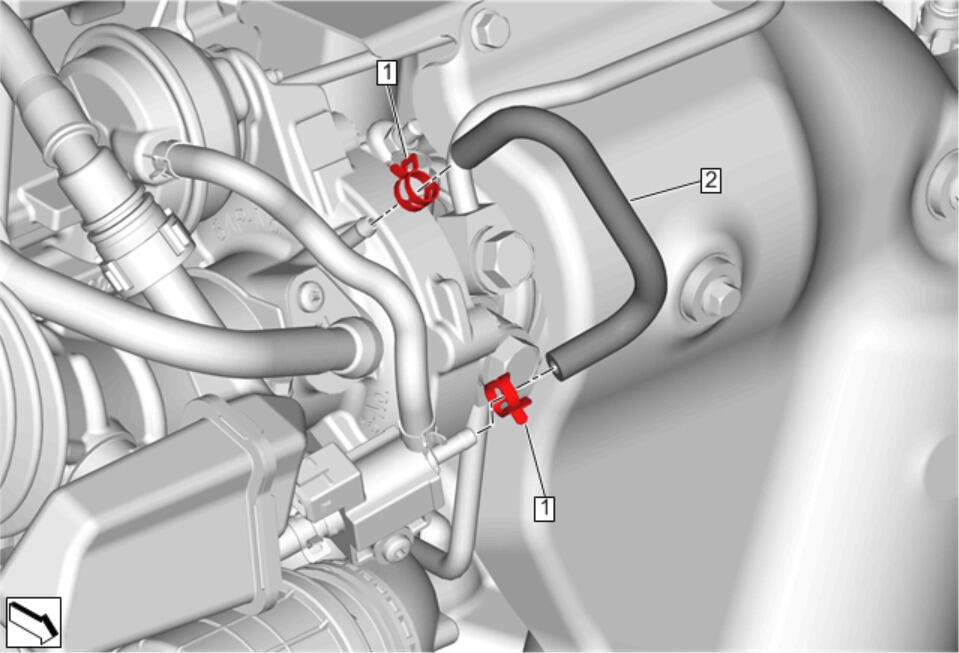

Fig 1: Turbocharger Wastegate Regulator Solenoid Valve Hose (Compressor Inlet to Solenoid Valve)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Turbocharger Wastegate Regulator Solenoid Valve Hose Clamp
2	Turbocharger Wastegate Regulator Solenoid Valve Hose
