Turbocharger Air Pressure Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

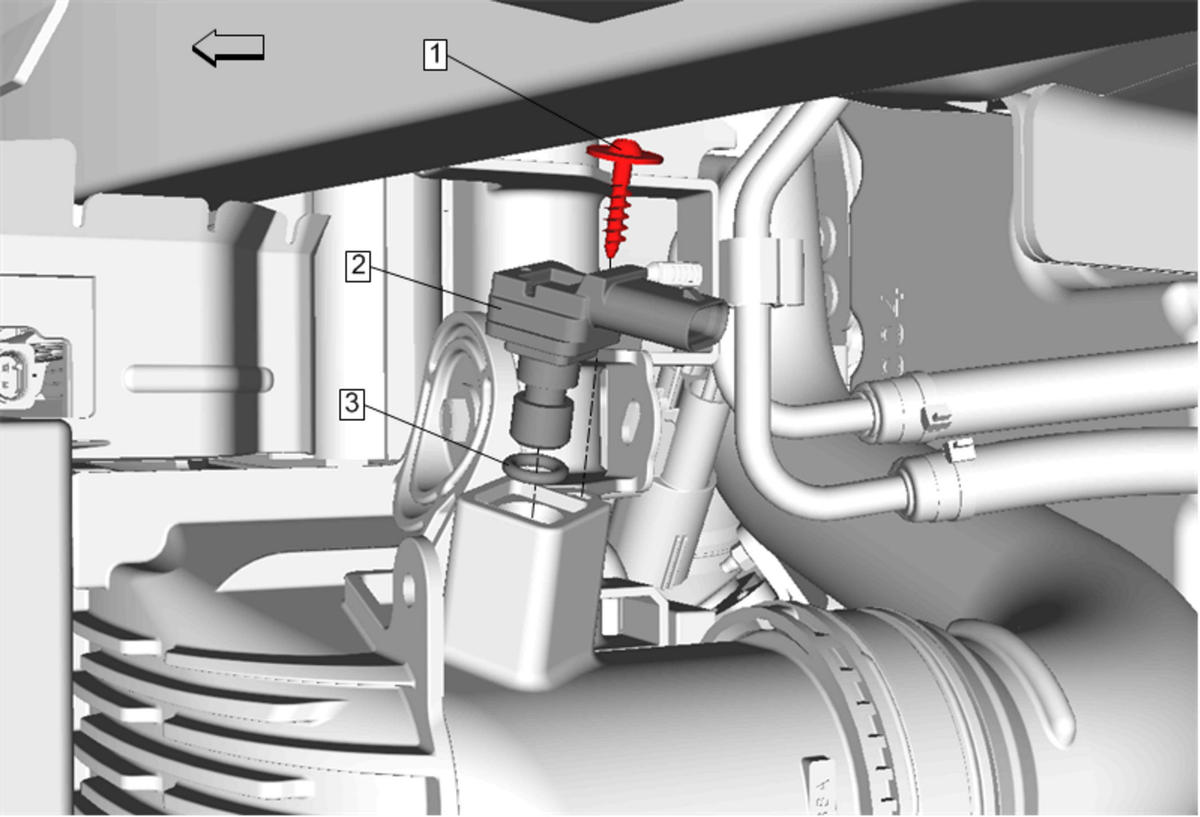

Fig 1: Turbocharger Air Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement (Equinox)Front Bumper Fascia Replacement (Terrain) Disconnect the electrical connector.
1	Turbocharger Air Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 3.8 N.m (34 lb in)
2	Turbocharger Air Pressure Sensor
3	Turbocharger Air Pressure Sensor Seal Procedure DISCARD the seal. Lubricate the NEW seal with clean engine oil. Adhesives, Fluids, Lubricants, and Sealers Perform the intake system learned values reset. Intake System Learned Values Reset
