Evaporative Emission Canister Vent Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

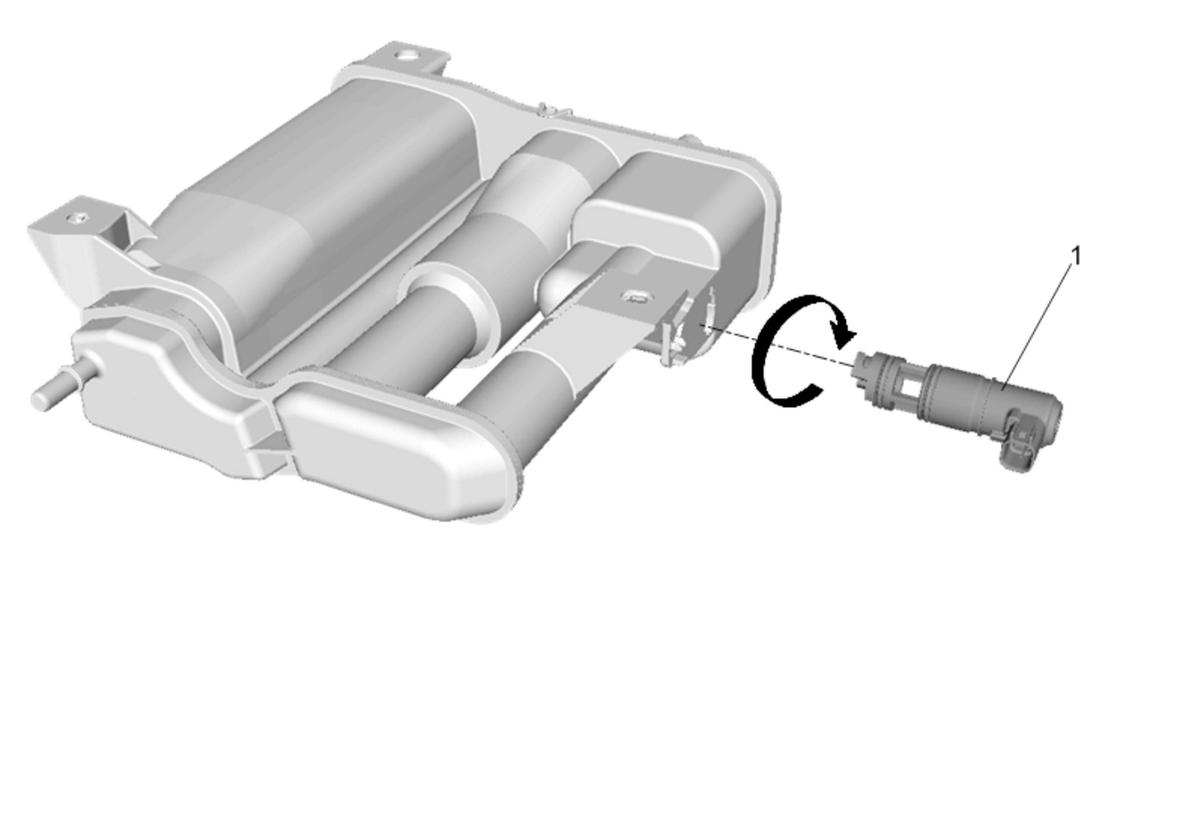

Fig 1: Evaporative Emission Canister Vent Solenoid Valve
GM4595730Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Evaporative Emission Canister Replacement (FWD) Evaporative Emission Canister Replacement (AWD)
1 Evaporative Emission Canister Vent Solenoid Valve
