Installation Procedure

WARNING: This page is about a different variant/trim than selected.

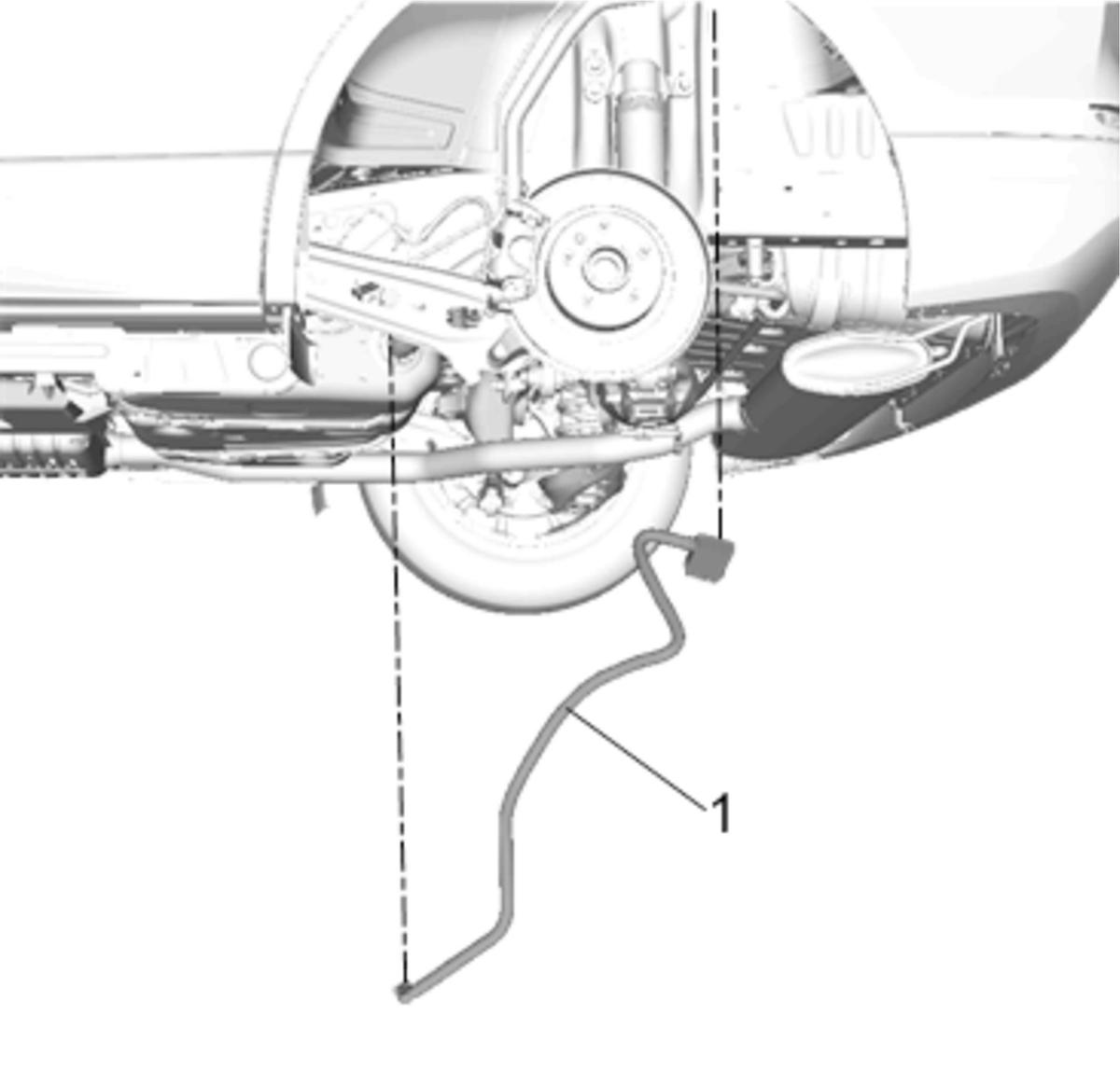

    Fig 1: Evaporative Emission Canister Vent Hose
    GM4597454Courtesy of GENERAL MOTORS COMPANY
  1. Install Evaporative Emission Canister Vent Hose (1)

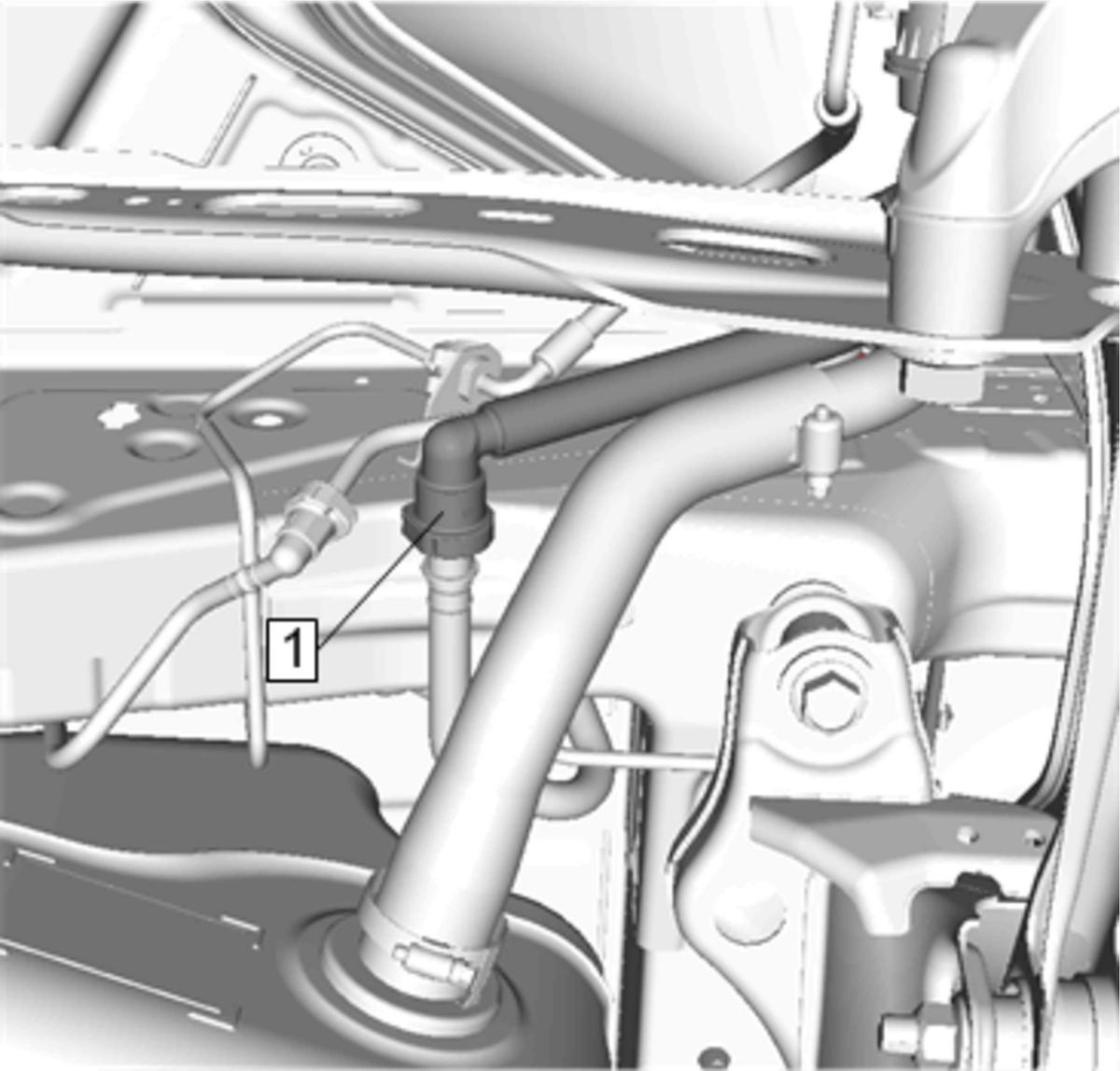

    2. Fig 2: Evaporative Emission Canister Vent Hose
    GM4597449Courtesy of GENERAL MOTORS COMPANY
  2. Connect Evaporative Emission Canister Vent Hose (1)Plastic Collar Quick Connect Fitting Service

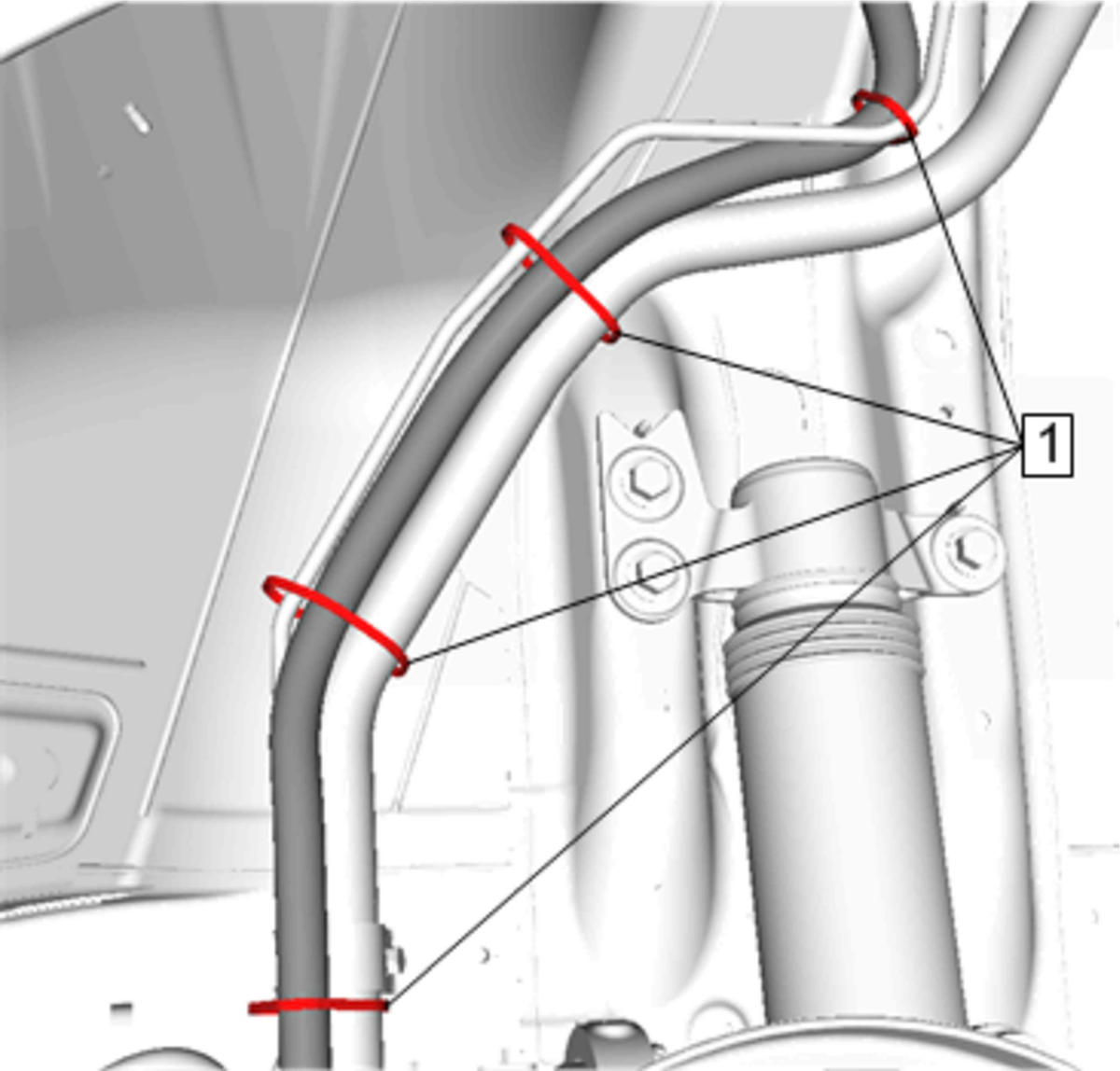

    3. Fig 3: Tie Strap
    GM4597448Courtesy of GENERAL MOTORS COMPANY
  3. Install NEW Tie Strap (1) - [4x]

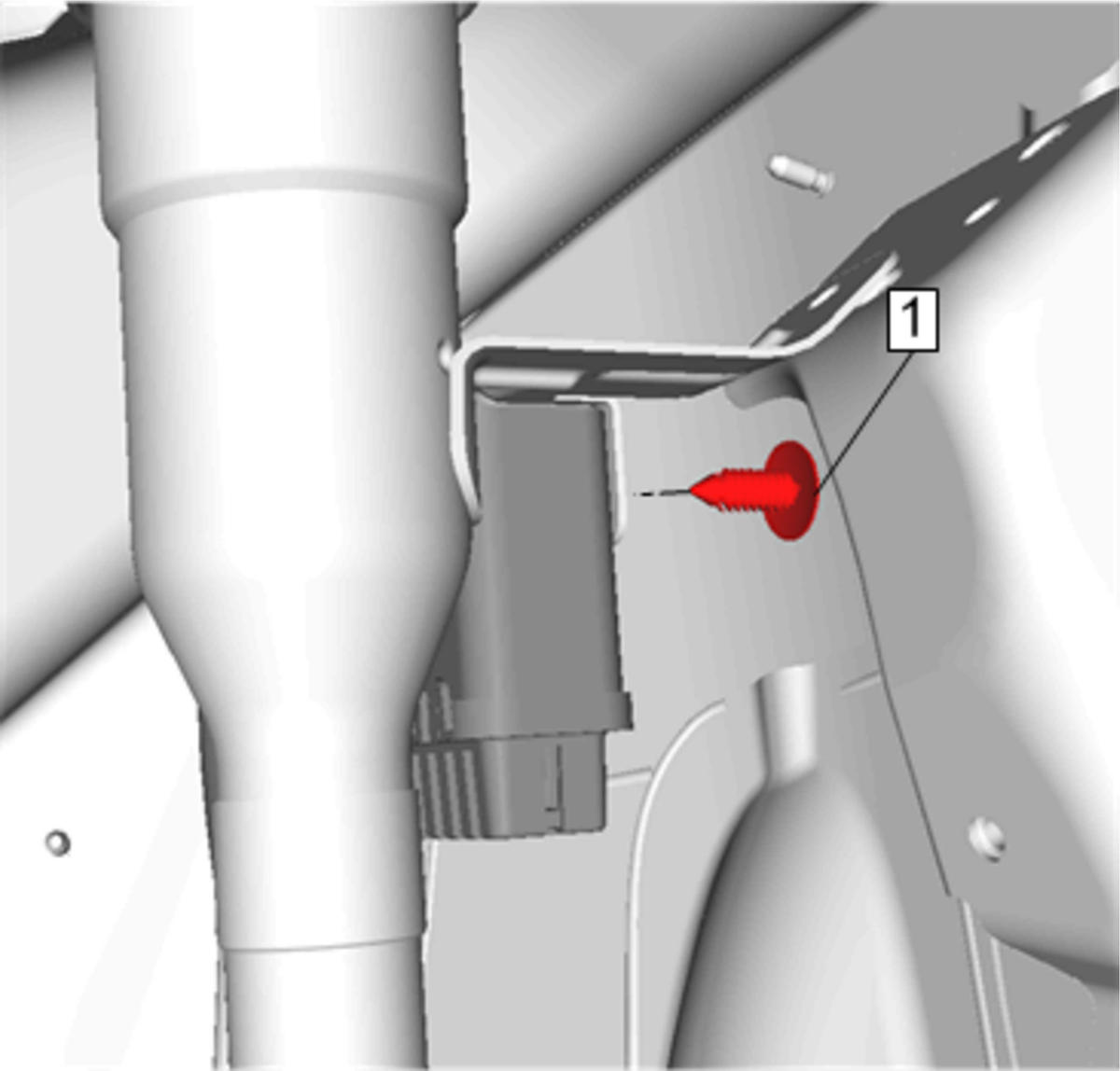

    4. Fig 4: Retainer
    GM4597447Courtesy of GENERAL MOTORS COMPANY
  4. Install Retainer(1) -
  5. Install Rear Wheelhouse Liner - Left Side -Rear Wheelhouse Liner Replacement- Left Side (Equinox)Rear Wheelhouse Liner Replacement- Left Side (Terrain)
