Evaporative Emission Canister Purge Tube Replacement

WARNING: This page is about a different variant/trim than selected.

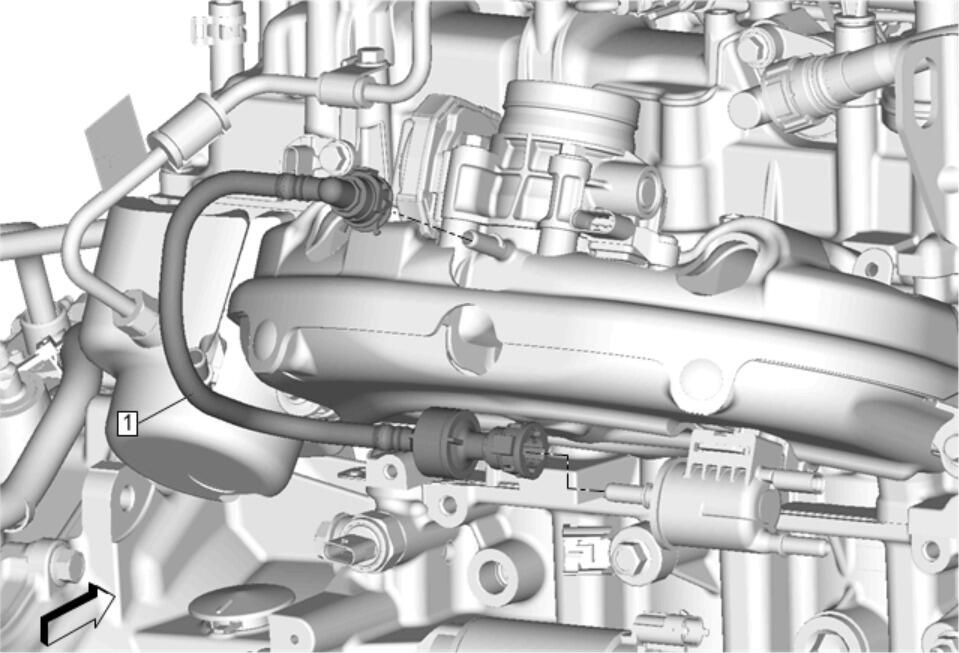

Fig 1: Evaporative Emission Canister Purge Tube
GM3984101Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Evaporative Emission Canister Purge Tube
Procedure
Disconnect the evaporative emission canister purge tube from the intake manifold and the evaporative emission canister purge valve. Plastic Collar Quick Connect Fitting Service
