Evaporative Emission Canister Purge Solenoid Valve Hose Replacement (AWD)

WARNING: This page is about a different variant/trim than selected.

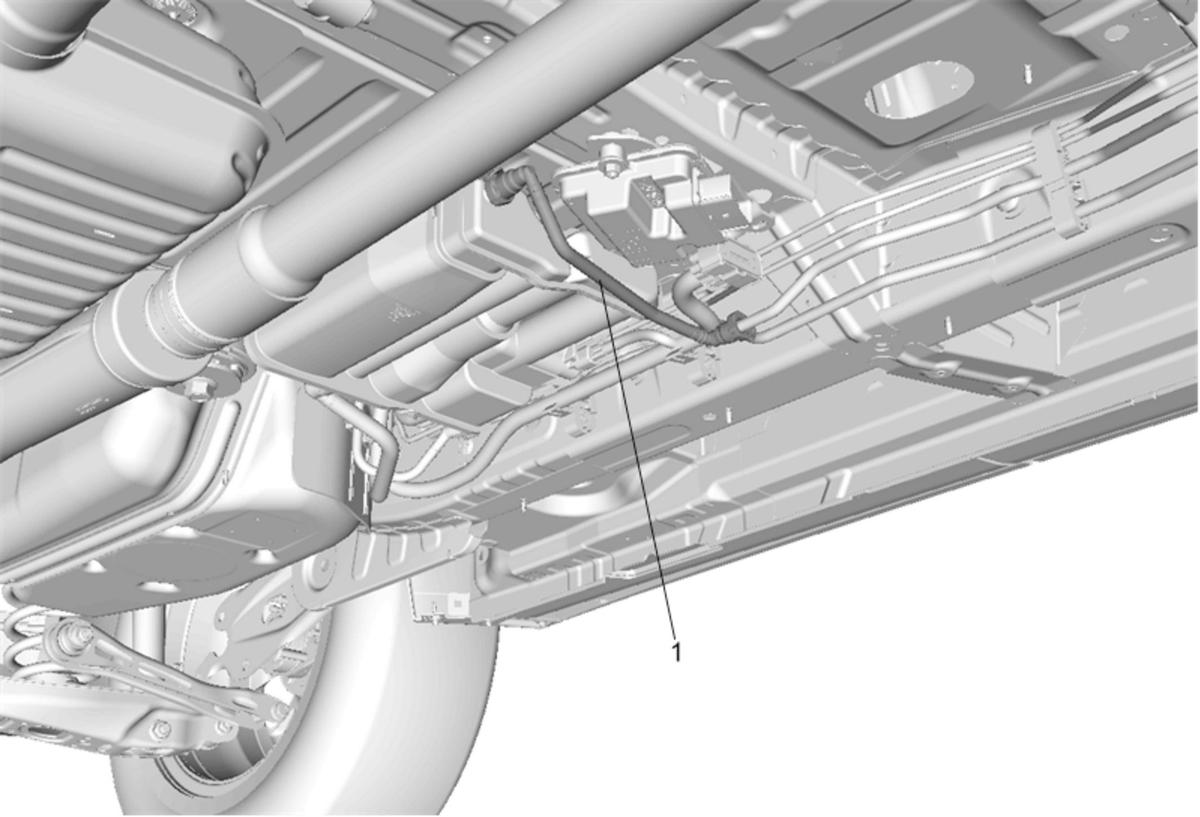

Fig 1: Evaporative Emission Canister Purge Solenoid Valve Hose (AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Underbody Rear Air Deflector Replacement (All Wheel Drive)
1	Evaporative Emission Canister Purge Solenoid Valve Hose Procedure Disconnect the evaporative emission canister purge solenoid valve hose. Plastic Collar Quick Connect Fitting Service
