Charge Air Cooler Replacement

WARNING: This page is about a different variant/trim than selected.

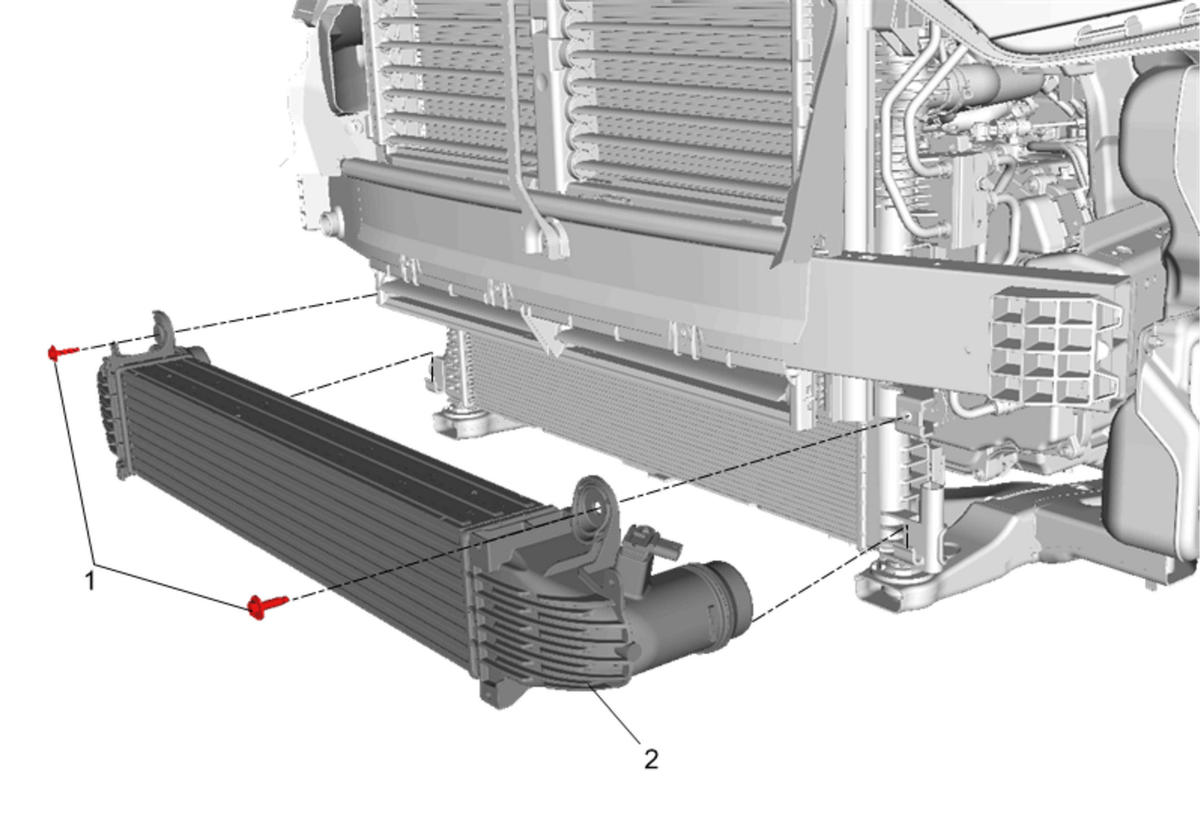

Fig 1: Charge Air Cooler

GM4597334

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Radiator Air Lower Baffle Replacement (LH7 LTG LYX)
Disconnect Charge Air Cooler Outlet Air Tube@Charge Air Cooler - Charge Air Cooler Outlet Air Tube Replacement
Disconnect Charge Air Cooler Inlet Air Tube@Charge Air Cooler - Charge Air Cooler Inlet Air Tube Replacement
Disconnect the electrical connector.

1

Charge Air Cooler Bolt[2x]

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Charge Air Cooler
