Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the charge air cooler outlet air tube assembly to the vehicle.

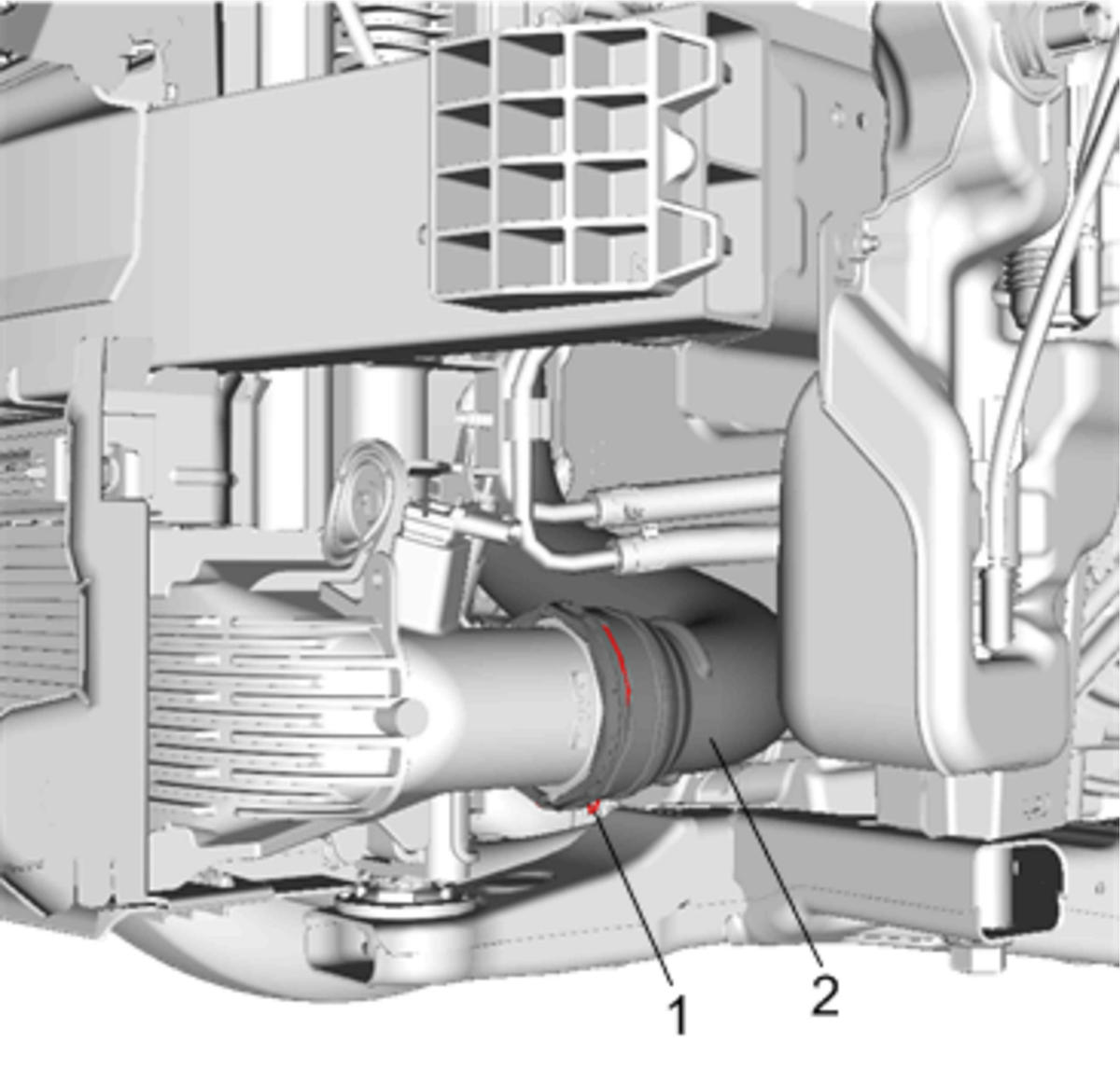

    2. Fig 1: Charge Air Cooler Outlet Air Tube And Retainer Spring
    GM4593159Courtesy of GENERAL MOTORS COMPANY
  2. Install Charge Air Cooler Outlet Air Tube (2)
  3. Engage Retainer Spring (1)
  4. Install Underbody Front Air Deflector - Underbody Front Air Deflector Replacement (Equinox)Underbody Front Air Deflector Replacement (Terrain)

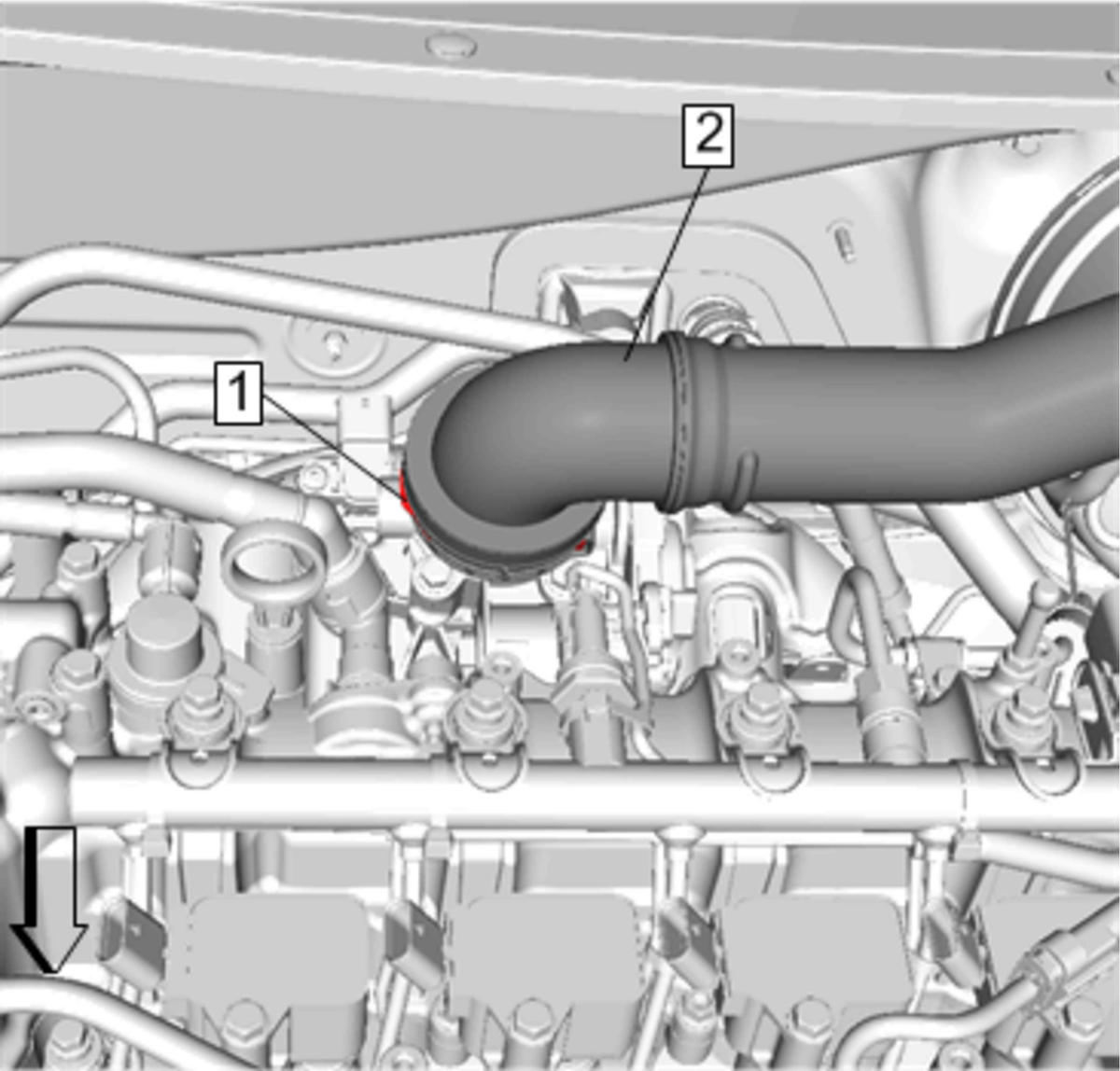

    5. Fig 2: Charge Air Cooler Outlet Air Tube And Retainer Spring
    GM4593156Courtesy of GENERAL MOTORS COMPANY
  5. Install Charge Air Cooler Outlet Air Tube (2)
  6. Engage Retainer Spring (1)

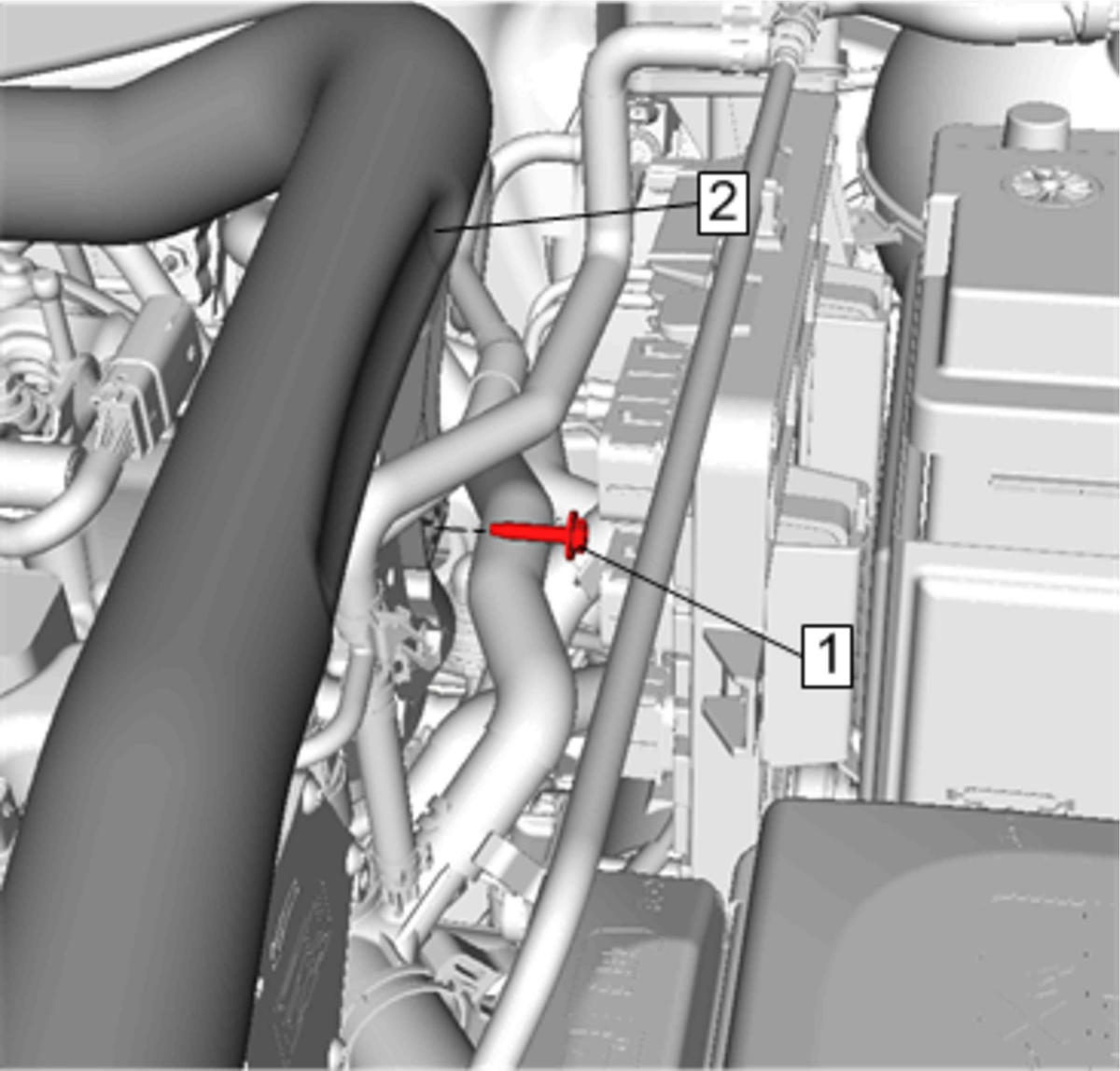

    7. Fig 3: Charge Air Cooler Bracket Bolt
    GM4593157Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  7. Install Charge Air Cooler Bracket Bolt (1) @Charge Air Cooler Outlet Air Tube and tighten 9 N.m (80 lb in)
