Installation Procedure

WARNING: This page is about a different variant/trim than selected.

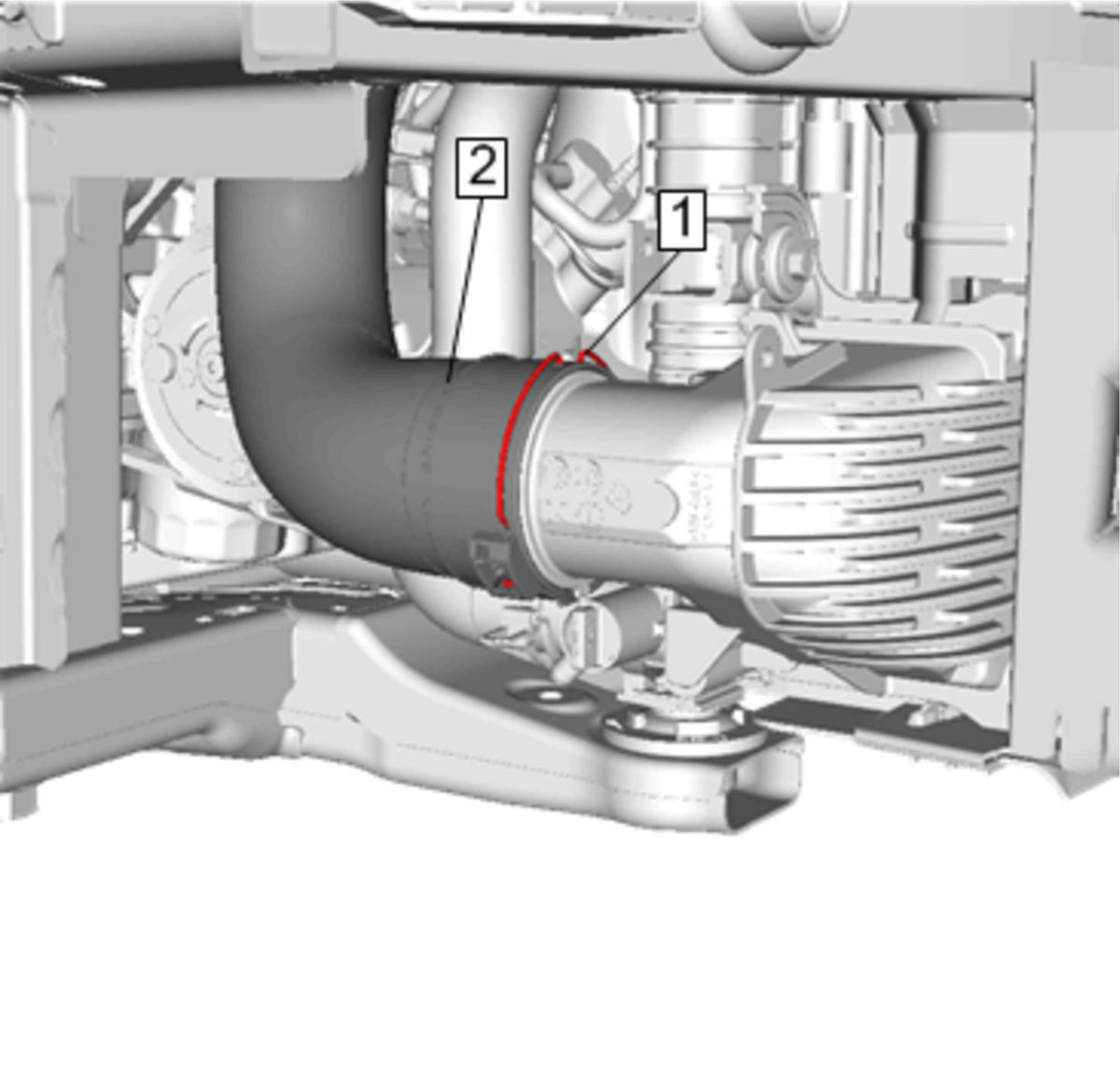

    Fig 1: Retainer Spring And Charge Air Cooler Inlet Air Tube
    GM4593162Courtesy of GENERAL MOTORS COMPANY
  1. Install Charge Air Cooler Inlet Air Tube (2)
  2. Engage Retainer Spring (1)

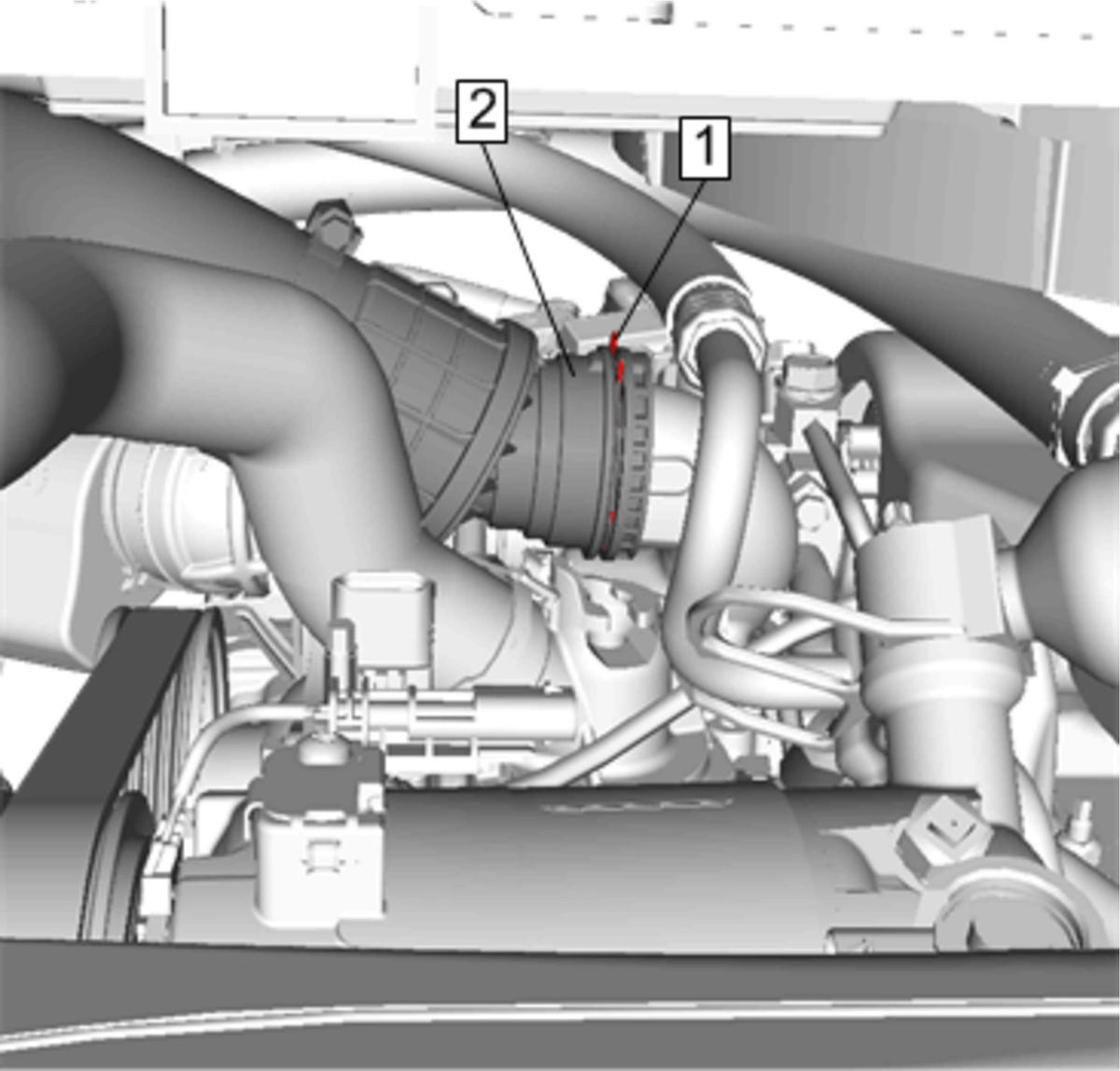

    3. Fig 2: Retainer Spring And Charge Air Cooler Inlet Air Tube
    GM4593161Courtesy of GENERAL MOTORS COMPANY
  3. Install Charge Air Cooler Inlet Air Tube (2)
  4. Engage Retainer Spring (1)
  5. Install Underbody Front Air Deflector - Underbody Front Air Deflector Replacement (Equinox)Underbody Front Air Deflector Replacement (Terrain)
