Air Cleaner Element Replacement

WARNING: This page is about a different variant/trim than selected.

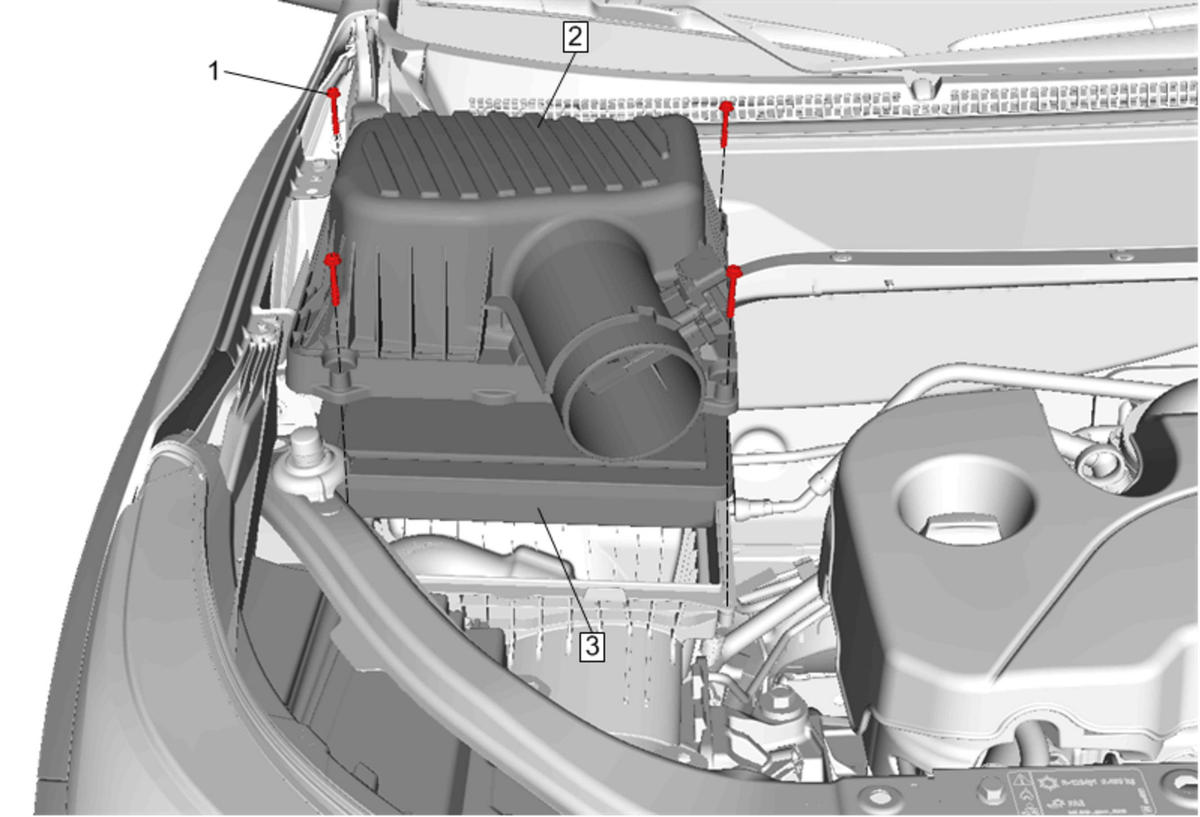

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Air Cleaner Outlet Duct Replacement Disconnect the electrical connector.
1	Air Cleaner Upper Housing Bolt CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Air Cleaner Upper Housing
3	Air Cleaner Element NOTE: Align the tab on the filter element to the correct position on the lower housing.
