Turbocharger Coolant Feed Pipe Replacement (LYX)

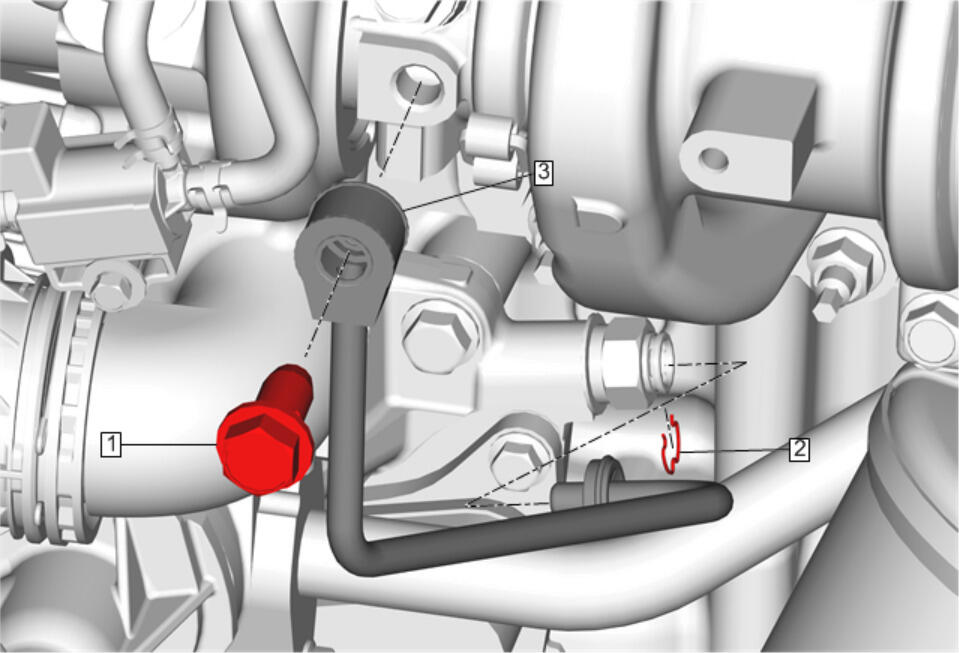

Fig 1: Turbocharger Coolant Feed Pipe
GM3979235Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Cooling System Draining and Filling (GE 47716) Cooling System Draining and Filling (Static)
  2. Turbocharger Heat Shield Replacement
  3. Warm Up Three-Way Catalytic Converter Replacement (LYX)
1 Turbocharger Coolant Feed Pipe Hollow Screw
CAUTION:

Refer to Fastener Caution .


Tighten
35 N.m (26 lb ft)
2 Retainer
Procedure
Install a NEW retainer.
3 Turbocharger Coolant Feed Pipe
