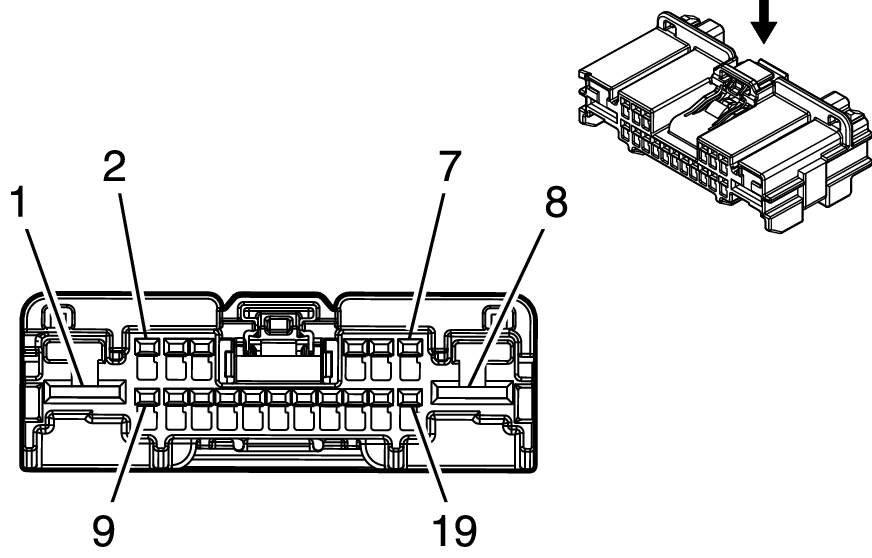

X404 Headliner Harness To Body Harness
|
|
|
Connector Part Information
- Harness Type: Headliner
- OEM Connector: 6098-8089
- Service Connector: 13597287
- Description: 19-Way F 1.2, 6.3 Series (GY)
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13597289
- Service Connector: 13597289
- Description: 19-Way M 1.2, 6.3 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575833 |
J-35616-42 (RD) |
J-38125-11A |
7116-4120-02 |
Yazaki 9 |
E |
B |
| II |
19300649 |
J-35616-16 (LT GN) |
J-38125-21 |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
13575825 |
J-35616-43 (RD) |
J-38125-11A |
7114-4120-02 |
Yazaki 9 |
E |
A |
| IV |
19333325 |
J-35616-17 (LT GN) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| V |
19352074 |
J-35616-17 (LT GN) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.75 |
BK |
2050 |
I |
- |
Ground |
1 |
0.75 |
BK |
2050 |
III |
- |
| 2 |
0.35 |
BU/GY |
3032 |
II |
C3U |
Front Sunshade Switch Signal |
2 |
0.35 |
BU/GY |
3032 |
IV |
C3U |
| 3 |
0.35 |
BU/VT |
5027 |
II |
C3U |
Sunroof Switch Data 1 Signal |
3 |
0.35 |
BU/VT |
5027 |
IV |
C3U |
| 4 |
0.35 |
BK/GY |
128 |
II |
C3U |
Sunroof Switch Low Reference |
4 |
0.35 |
BK/GY |
128 |
IV |
C3U |
| 5 |
0.13 |
WH |
6816 |
II |
- |
Indicator Dimming Control |
5 |
0.35 |
WH |
6816 |
IV |
- |
| 6 |
0.5 |
GY |
157 |
II |
- |
Interior Lamp Control |
6 |
0.5 |
GY |
157 |
V |
- |
| 7 |
0.35 |
BU/GY |
4672 |
II |
- |
Dome Lamp Off Indicator Control |
7 |
0.35 |
BU/GY |
4672 |
IV |
- |
| 8 |
- |
- |
- |
- |
- |
Not Occupied |
8 |
- |
- |
- |
- |
- |
| 9 |
0.35 |
BK/BU |
5307 |
II |
C3U |
Front Sunshade Switch Low Reference |
9 |
0.35 |
BK/BU |
5307 |
IV |
C3U |
| 10 |
0.35 |
RD/BU |
2540 |
II |
- |
Battery Positive Voltage |
10 |
0.35 |
RD/BU |
2540 |
IV |
- |
| 11 |
0.35 |
BU |
655 |
II |
- |
Cellular Telephone Microphone Signal |
11 |
0.35 |
BU |
655 |
IV |
- |
| 12 |
0.35 |
BK/BN |
654 |
II |
- |
Cellular Telephone Microphone Low Reference |
12 |
0.35 |
BK/BN |
654 |
IV |
- |
| 13 |
0.5 |
WH/BN |
6815 |
II |
- |
Inadvertent Power Control |
13 |
0.5 |
WH/BN |
6815 |
V |
- |
| 14 |
0.13 |
GY/GN |
328 |
II |
- |
Interior Lamp Defeat Switch Signal |
14 |
0.13 |
GY/GN |
328 |
IV |
- |
| 15 |
0.13 |
GY |
156 |
II |
- |
Courtesy Lamp Switch Signal |
15 |
0.13 |
GY |
156 |
IV |
- |
| 16 |
0.35 |
YE |
6817 |
II |
- |
LED Backlight Dimming Control |
16 |
0.35 |
YE |
6817 |
IV |
- |
| 17 |
0.35 |
GN/GY |
737 |
II |
- |
Rear Compartment Lid Lamp Control |
17 |
0.35 |
GN/GY |
737 |
IV |
- |
| 18 |
0.35 |
VT/YE |
7043 |
II |
IOS/IOT/IOU |
Microphone (+) Signal |
18 |
0.35 |
VT/YE |
7043 |
IV |
IOS/IOT/IOU |
| 19 |
0.35 |
BU/BK |
7044 |
II |
IOS/IOT/IOU |
Microphone (-) Low Reference |
19 |
0.35 |
BU/BK |
7044 |
IV |
IOS/IOT/IOU |
