X402 Body Harness To Axle Harness

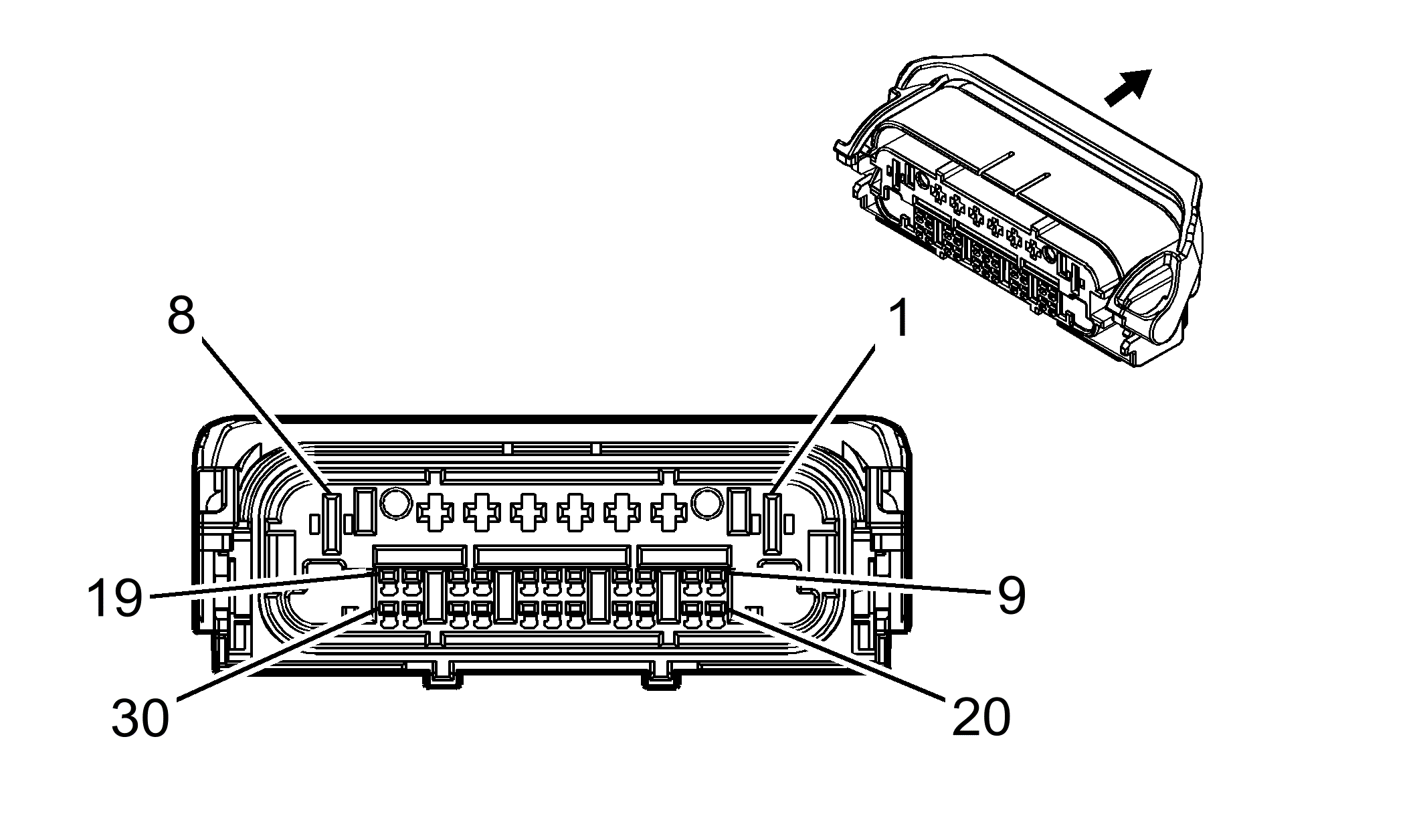

GM4578897
GM4817393
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13598277
  • Service Connector: 19355456
  • Description: 30-Way F 1.2 MCON, 2.8, 6.3 MCP Series (BK)
 Connector Part Information
  • Harness Type: Rear Axle
  • OEM Connector: 13515618
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 30-Way M 1.2 MCON, 2.8, 6.3 MCP Series (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13582289 J-35616-16 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
II 19119592 J-35616-4A (PU) J-38125-557 Not Available Not Available Not Available Not Available
III 19301757 J-35616-40 (BU) J-38125-556 1241408-1 Lear 28 A B
IV Not Required J-35616-17 (LT GN) No Tool Required Not Required Not Required Not Required Not Required
V Not Required J-35616-43 (RD) No Tool Required Not Required Not Required Not Required Not Required
VI Not Required J-35616-5 (PU) No Tool Required Not Required Not Required Not Required Not Required
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 2.5 BN/GN 3945 III F48 All Wheel Drive Power Transfer Motor Control B 1 3 BN/GN 3945 V F48
2 2.5 GY 4368 II - Park Brake Motor Low Reference Right Rear 2 2.5 GY 4368 VI -
3 2.5 BK 2550 II F48 Ground 3 2.5 BK 2550 VI F48
4 2.5 RD/VT 1640 II - Battery Positive Voltage 4 2.5 RD/VT 1640 VI -
5 2.5 WH 2001 II - Park Brake Motor Apply Left Rear Control 5 2.5 WH 2001 VI -
6 2.5 GY/BK 4369 II - Park Brake Motor Low Reference Left Rear 6 2.5 GY/BK 4369 VI -
7 2.5 GN/VT 1988 III - Park Brake Motor Apply Right Rear Control 7 2.5 GN/VT 1988 VI -
8 2.5 VT/BN 3944 III - All Wheel Drive Power Transfer Motor Control A 8 3 VT/BN 3944 V -
9 - - - - - Not Occupied 9 - - - - -
10 0.35 GY/GN 1561 I F48 AWD Indicator Control 10 0.35 GY/GN 1561 IV F48
11 - - - - - Not Occupied 11 - - - - -
12 0.35 GY/YE 7128 I - Wheel Speed Sensor Control Right Rear 12 0.35 GY/YE 7128 IV -
13 0.35 VT 882 I - Wheel Speed Sensor Signal Right Rear 13 0.35 VT 882 IV -
14 - - - - - Not Occupied 14 - - - - -
15 0.35 WH/BU 5986 I F48 Serial Data Communication Enable 15 0.35 WH/BU 5986 IV F48
16 0.35 BU 2500 I - High Speed GMLAN Serial Data (+) 1 16 0.35 BU 2500 IV -
17 0.35 WH 2501 I - High Speed GMLAN Serial Data (-) 1 17 0.35 WH 2501 IV -
18 0.35 BU/YE 6105 I - High Speed GMLAN Serial Data (+) 2 18 0.35 BU/YE 6105 IV -
19 0.35 WH 6106 I - High Speed GMLAN Serial Data (-) 2 19 0.35 WH 6106 IV -
20 0.35 BU/YE 6105 I - High Speed GMLAN Serial Data (+) 2 20 0.35 BU/YE 6105 IV -
21 0.35 WH 6106 I - High Speed GMLAN Serial Data (-) 2 21 0.35 WH 6106 IV -
22 - - - - - Not Occupied 22 - - - - -
23 0.35 GN/BN 3848 I F48 All Wheel Drive Power Transfer Unit Position Sensor Signal 23 0.35 GN/BN 3848 IV F48
24 0.35 WH/RD 3847 I F48 All Wheel Drive Power Transfer Unit Position Sensor Voltage Reference 24 0.35 WH/RD 3847 IV F48
25 0.35 BK/VT 3846 I F48 All Wheel Drive Power Transfer Unit Position Sensnor Low Reference 25 0.35 BK/VT 3846 IV F48
26 - - - - - Not Occupied 26 - - - - -
27 0.35 RD/VT 1940 I F48 Battery Positive Voltage 27 0.35 RD/VT 1940 IV -
28 0.35 GY/BK 7127 I - Wheel Speed Sensor Control Left Rear 28 0.35 GY/BK 7127 IV -
29 0.35 BU 884 I - Wheel Speed Sensor Signal Left Rear 29 0.35 BU 884 IV -
30 - - - - - Not Occupied 30 - - - - -
