X202 Instrument Panel Harness To Body Harness

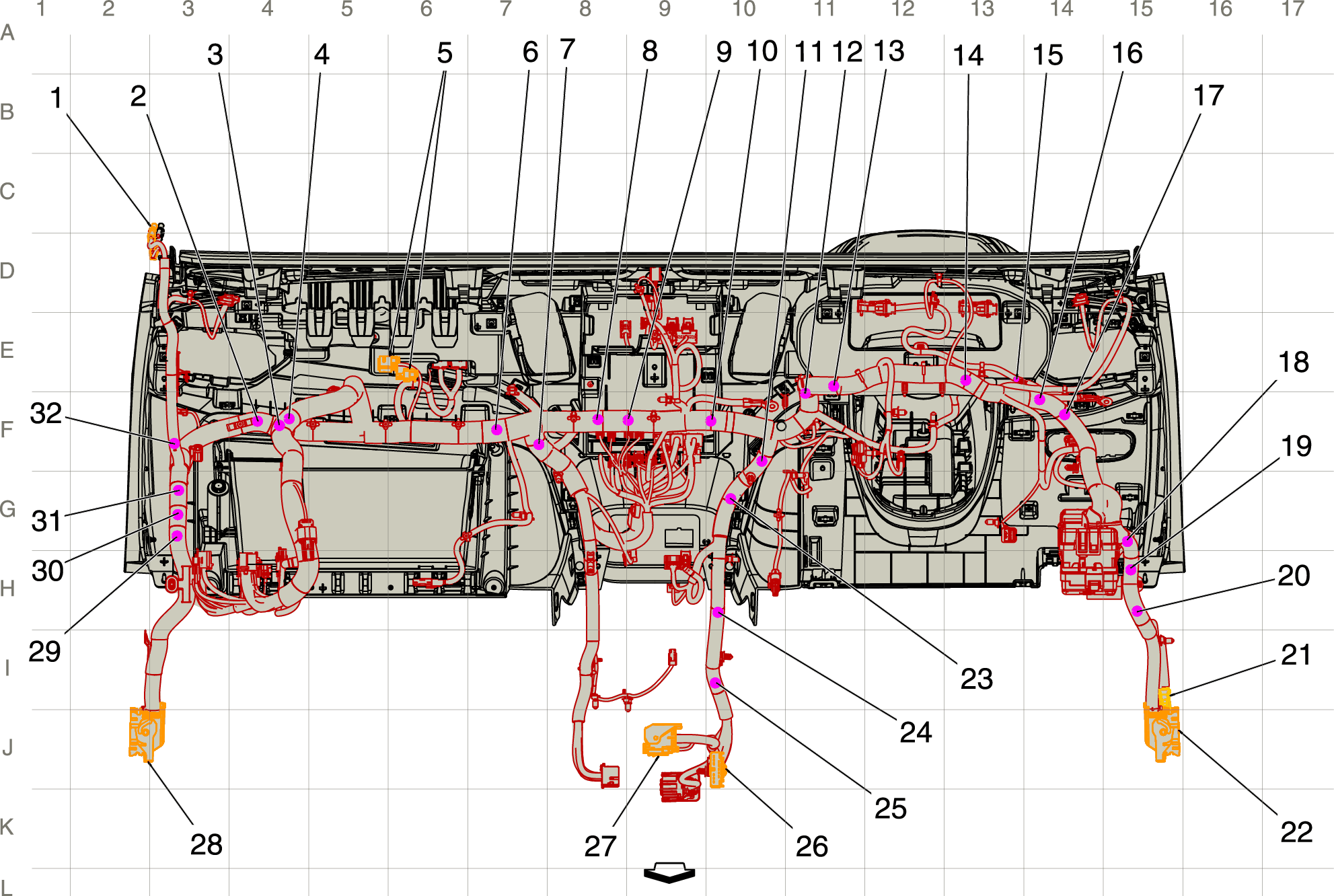

Fig 1: X202 Instrument Panel Harness To Body Harness Component Location (22) (Chevrolet Equinox)
GM4589676Courtesy of GENERAL MOTORS COMPANY
Fig 2: X202 Instrument Panel Harness To Body Harness Component Location (19) (GMC Terrain)
GM4595345Courtesy of GENERAL MOTORS COMPANY
GM3960183
GM3960526
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 13592940
  • Service Connector: 19330680
  • Description: 76-Way F 1.2, 1.5, 2.8 YESC Series (BK)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 6098-8295
  • Service Connector: 19355187
  • Description: 76-Way M 1.2 MCON-CB, 1.5, 2.8 YESC Series (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13578891 J-35616-2A (GY) J-38125-11A Not Available Not Available Not Available Not Available
II 13578893 J-35616-4A (PU) J-38125-11A 7116-4110-02 Yazaki 9 E C
III 13582232 J-35616-16 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
IV 13582289 J-35616-16 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
V 13587516 J-35616-4A (PU) J-38125-11A 7116-4112-02 Yazaki 9 C D
VI 19300649 J-35616-16 (LT GN) J-38125-21 Not Available Not Available Not Available Not Available
VII 19333323 J-35616-16 (LT GN) J-38125-21 Not Available Not Available Not Available Not Available
VIII 19352420 J-35616-16 (LT GN) J-38125-11A Not Available Not Available Not Available Not Available
IX 19367551 J-35616-16 (LT GN) J-38125-21 Not Available Not Available Not Available Not Available
X 13575818 J-35616-3 (GY) J-38125-553 Not Available Not Available Not Available Not Available
XI 13575821 J-35616-5 (PU) J-38125-11A 7114-4110-02 Yazaki 9 E C
XII 13575824 J-35616-5 (PU) J-38125-11A 7114-4112-02 Yazaki 9 C D
XIII 19330704 J-35616-17 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
XIV 19333325 J-35616-17 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
XV 19352422 J-35616-17 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
XVI Not Required J-35616-64B (LT BU) No Tool Required Not Available Not Available Not Available Not Available
XVII Pending Pending Pending Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 0.35 GY 4109 VI F48/EPH Driver Mode Switch 5V Reference 1 0.35 GY 4109 XIV F48/EPH
2 0.35 RD/BU 2540 IV UD7/UD5/UFQ Battery Positive Voltage 2 0.35 RD/YE 5040 XIV UD7/UD5/UFQ
3 0.35 VT 185 VI Y67 Low Washer Fluid Indicator Control 3 0.35 VT 185 XIV Y67
4 0.13
0.13		 BU/VT
BU/VT		 1134
1134		 VIII
VII		 EPH+J71
J71-EPH		 Park Brake Switch Signal
Park Brake Switch Signal		 4 0.35 BU/VT 1134 XIV J71
5 0.13 BN/WH 419 VIII NTB/NUB/LH7 Check Engine Indicator Control 5 0.35 BN/WH 419 XIV NTB/NUB/LH7
6 0.35 WH/VT 4108 VII F48/EPH Driver Mode Switch Signal 6 0.35 WH/VT 4108 XIV F48/EPH
7 0.13
0.13		 GY/RD
GY/RD		 7684
7684		 VIII
VII		 EPH+J71
J71-EPH		 Park Brake Apply Switch Voltage Reference
Park Brake Apply Switch Voltage Reference		 7 0.35 GY/RD 7684 XIV J71
8 0.13
0.13		 BN
BN		 6107
6107		 VII
VII		 EPH+J71
J71-EPH		 Park Brake Apply Switch Signal
Park Brake Apply Switch Signal		 8 0.35 BN 6107 XIV J71
9 0.13
0.13		 BU/BK
BU/BK		 6108
6108		 VII
VII		 EPH-J71
J71-EPH		 Park Brake Release Switch Signal
Park Brake Release Switch Signal		 9 0.35 BU/BK 6108 XIV J71
10 0.13
0.13		 YE/RD
YE/RD		 7683
7683		 VII
VIII		 EPH+J71
J71-EPH		 Park Brake Release Switch Voltage Reference
Park Brake Release Switch Voltage Reference		 10 0.35 YE/RD 7683 XIV J71
11 0.75
0.75
0.75		 GN/BK
GN/BK
GN/BK		 116
116
116		 IX
IX
IX		 IOB+UZ6-NKC
IOR+UZ6
UZ6-IOB-NKC		 Left Rear Speaker Signal (-)
Left Rear Speaker Signal (-)
Left Rear Speaker Signal (-)		 11 0.75
0.75
0.75		 GN/BK
GN/BK
GN/BK		 116
116
116		 XIII
XIII
XIII		 IOB+UZ6-NKC
IOR+UZ6
UZ6-IOB-NKC
12 0.75
0.75
0.75		 GN
GN
GN		 199
199
199		 IX
IX
IX		 IOB+UZ6-NKC
IOR+UZ6
UZ6-IOB-NKC		 Left Rear Speaker Control (+)
Left Rear Speaker Control (+)
Left Rear Speaker Control (+)		 12 0.75
0.75
0.75		 GN
GN
GN		 199
199
199		 XIV
XIV
XIV		 IOB+UZ6-NKC
IOR+UZ6
UZ6-IOB-NKC
13 0.35 BU/YE 6105 VI - High Speed GMLAN Serial Data (+) 2 13 0.35
0.35		 BU/YE
BU/YE		 6105
6105		 XIV
XIV		 -UFQ
UFQ
14 0.35 WH 6106 IV - High Speed GMLAN Serial Data (-) 2
High Speed GMLAN Serial Data (-) 2		 14 0.35
0.35		 WH
WH		 6106
6106		 XIV
XIV		 UFQ
-UFQ
15 0.35 GN/GY 6135 VII AER/AEQ Local Interconnect Network Serial Data Bus 4 15 0.35 GN/GY 6135 XIV AER/AEQ
16 0.13 VT/BK 7553 VIII MM1-EPH Park Lock Solenoid Control 16 0.13 VT/BK 7553 XV MM1-EPH
17 0.35 BU 2307 VIII AL0/C99 Passenger Air Bag On Indicator Control 17 0.13 BU 2307 XV ALO/C99
18 0.75
0.75
0.75
0.75		 BN/BU
BN/BU
BN/BU
BN/BU		 118
118
118
118		 IX
IX
VI
VI		 IOB+UZ6-NKC
IOR+UZ6
NKC+UZ6-IOR
UZ6-IOB-NKC		 Left Front Speaker Signal (-) 1
Left Front Speaker Signal (-) 1
Left Front Speaker Signal (-) 1
Left Front Speaker Signal (-) 1		 18 0.75
0.75
0.75
0.75		 BN/BU
BN/BU
BN/BU
BN/BU		 118
118
118
118		 XIV
XIII
XIII
XIII		 IOB+UZ6-NKC
IOR+UZ6
NKC+UZ6-IOR
UZ6-IOB-NKC
19 0.75
0.75
0.75
0.75		 BU
BU
BU
BU		 201
201
201
201		 IV
IX
IX
IV		 IOB+UZ6-NKC
IOR+UZ6
NKC+UZ6-IOR
UZ6-IOB-NKC		 Left Front Speaker Control (+) 1
Left Front Speaker Control (+) 1
Left Front Speaker Control (+) 1
Left Front Speaker Control (+) 1		 19 0.75
0.75
0.75
0.75		 BU
BU
BU
BU		 201
201
201
201		 XIII
XIV
XIII
XIII		 IOB+UZ6-NKC
IOR+UZ6
NKC+UZ6-IOR
UZ6-IOB-NKC
20 0.35
0.35
0.35		 BU/BK
BU/BK
BK/OG		 7493
7493
5156		 VII
VII
III		 EPH+LH7
EPH+LYX/LTG
SBK+AJG/AYC		 High Speed GMLAN Serial Data (+)3
High Speed GMLAN Serial Data (+)3
Left Rear Seat Belt Pretensioner Low Reference		 20 0.35
0.35
0.35		 BU/BK
BU/BK
BK		 7493
7493
5156		 XVI
XVI
XVI		 EPH+LH7
EPH+LYX/LTG
SBK+AJG/AYC
21 0.35
0.35		 WH
WH		 7494
7494		 VII
VII		 EPH+LH7
EPH+LYX/LTG		 High Speed GMLAN Serial Data (-)3
High Speed GMLAN Serial Data (-)3		 21 0.35
0.35		 WH
OG/WH		 7494
5155		 XIV
XVI		 EPH+LH7
EPH+LYX/LTG
22 0.35 WH/VT 5905 VI MM1-EPH Key Capture/Column Lock Shift Position Signal 22 0.13 WH/VT 5905 XV MM1-EPH
23 0.35
0.35		 WH/GN
YE		 5380
6111		 VII
VI		 MM1
MM3		 Brake Position Sensor Signal
Clutch Apply Sensor Signal		 23 0.35 WH/GN 5380 XIV -
24 0.35
0.35		 BK/YE
BK/GY		 5382
6110		 VII
VI		 MM1
MM3		 Brake Position Sensor Low Reference
Clutch Apply Sensor Low Reference		 24 0.35 BK/YE 5382 XIV -
25 0.35
0.35		 WH/RD
GY/RD		 5381
6109		 VII
VI		 MM1
MM3		 Brake Position Sensor 5V Reference
Clutch Apply Sensor 5V Reference		 25 0.35 WH/RD 5381 XIV -
26 0.13
0.13		 YE
YE		 1492
1492		 VII
VIII		 EPH+J71
J71-EPH		 Park Brake Switch Supply Voltage
Park Brake Switch Supply Voltage		 26 0.35 YE 1492 XIV J71
27 0.35 BU/WH 6128 IV TB4 Rear Closure Unlatch Motor Unlatch Control 27 0.35 BU/WH 6128 XIV TB4
28 0.35 RD/BN 1440 VII - Battery Positive Voltage 28 0.35
0.35		 RD/BN
RD/BN		 1440
1440		 XIV
XIV		 -CE1
CE1
29 0.35
0.35		 BU/BK
BU/BK		 7493
7493		 II
II		 EPH+LH7
EPH+LYX/LTG		 High Speed GMLAN Serial Data (+)3
High Speed GMLAN Serial Data (+)3		 29 0.35
0.35		 BU/BK
BU/BK		 7493
7493		 XI
XI		 EPH+LH7
EPH+LYX/LTG
30 0.35 WH 7494 II - High Speed GMLAN Serial Data (-)3 30 0.35 WH 7494 XI -
31 0.35 RD/BU 2540 I - Battery Positive Voltage 31 0.35 RD/BU 2540 X -
32 0.35
0.35		 GY/VT
GY/VT		 755
755		 VIII
I		 IO5/IO6+MAH/MBC
MM1		 RAP Relay Coil Control
RAP Relay Coil Control		 32 0.35 GY/VT 755 X MM1-EPH
33 - - - - - Not Occupied 33 - - - - -
34 2.5
2.5		 RD/YE
RD/YE		 3740
3740		 V
V		 AER/AEQ+MAH/MBC/MCX/EPH/MAO/MBI
AER/AEQ+MVL/MAY/MBA/MAM/MJL/MAW/MQL/MDW-EPH		 Battery Positive Voltage
Battery Positive Voltage		 34 2.5 RD/YE 3740 XII AER/AEQ
35 0.35 BN/YE 780 I - Driver Door Lock Switch Lock Signal 35 0.35 BN/YE 780 X -
36 0.35 BN/WH 781 I - Driver Door Lock Switch Unlock Signal 36 0.35 BN/WH 781 X -
37 - - - - - Not Occupied 37 - - - - -
38 0.35 BU/BN 4498 I EPH+LH7 High Speed GMLAN Serial Data (+) 7 38 0.35 BU/BN 4498 X EPH+LH7+NDE
39 0.35 BU/VT 193 VIII - Rear Defog Relay Control 39 0.35 BN/VT 193 X -
40 0.35 BU/YE 7574 I - Electric Variable Displacement Control 40 0.35 BU/YE 7574 X -
41 0.35 BU/BN 7573 I - Electric Variable Displacement Supply 41 0.35 BU/BN 7573 X -
42 0.35 WH 4499 I EPH+LH7 High Speed GMLAN Serial Data (-) 7 42 0.35 WH 4499 X EPH+LH7+NDE
43 2.5 RD/BN 3640 V AXG/AEF/AED Battery Positive Voltage 43 2.5 RD/BN 3640 XII AXG/AEF/AED
44 2 RD/BN 2940 V (AG1/A45/A74)/(UEU/UHX-EPH)/(EPH+UKC) Battery Positive Voltage 44 2 RD/BN 2940 XII (AG1/A45/A74)/(UEU/UHX-EPH)/(EPH+UKC)
45 0.35
0.35		 BU/BN
BU/BN		 4498
4498		 I
I		 EPH+LH7
EPH+LTG/LYX		 High Speed GMLAN Serial Data (+) 7
High Speed GMLAN Serial Data (+) 7		 45 0.35
0.35		 BU/BN
BU/BN		 4498
4498		 X
X		 EPH+LH7
EPH+LTG/LYX
46 0.35 WH 4499 I - High Speed GMLAN Serial Data (-) 7 46 0.35 WH 4499 X -
47 - 48 - - - - - Not Occupied 47 - 48 - - - - -
49 0.35 WH/RD 1164 VI - Accelerator Pedal Position 5V Reference 1 49 0.35 WH/RD 1164 XIV -
50 0.35 YE/WH 1161 VI - Accelerator Pedal Position Signal 1 50 0.35 YE/WH 1161 XIV -
51 0.35 BK/VT 1272 VI - Accelerator Pedal Position Low Reference 2 51 0.35 BK/VT 1272 XIV -
52 0.35 BN/RD 1274 VI - Accelerator Pedal Position 5V Reference 2 52 0.35 BN/RD 1274 XIV -
53 0.35 GN/WH 1162 VI - Accelerator Pedal Position Signal 2 53 0.35 GN/WH 1162 XIV -
54 0.35 BK/BU 1271 VI - Accelerator Pedal Position Low Reference 1 54 0.35 BK/BU 1271 XIV -
55 0.35
0.35		 VT/WH
GY/GN		 5234
1561		 VIII
VII		 AL0/UHH/UHG
F48		 Passenger Seat Belt Indicator Control
AWD Indicator Control		 55 0.13
0.35		 VT/WH
GY/GN		 5234
1561		 XIV
XIV		 AL0/UHH/UHG
F48
56 0.35 GY/YE 6188 VI TB4 Lift Glass/Rear Compartment Lid Motor Release Control 56 0.35 GY/YE 6188 XIV TB4
57 0.35 GN/BN 507 VII LH7 Wait To Start Indicator Control 57 0.35 GN/BN 507 XIV LH7
58 0.35 OG/WH 5157 III SBK+AJG/AYC Right Rear Seat Belt Pretensioner Control 58 0.35 OG/WH 5157 XVI SBK+AJG/AYC
59 0.35 BK/OG 5158 III SBK+AJG/AYX Right Rear Seat Belt Pretensioner Low Reference 59 0.35 BK 5158 XVI SBK+AJG/AYX
60 0.13
0.13
0.35		 YE/VT
YE/VT
YE/VT		 2516
2516
2516		 IV
VII
IV		 UE1+IOB/IO5/IO6
UE1+IOR/IOS/IOT/IOU
UE3		 Keypad Green LED Control
Keypad Green LED Control
Keypad Green LED Control		 60 0.13 YE/VT 2516 XV UE1/UE3
61 - - - - - Not Occupied 61 - - - - -
62 0.35 WH 6816 VI - Indicator Dimming Control 62 0.35 WH 6816 XIV -
63 0.35 BN/VT 2914 VII EPH Driver Mode 4 Indicator Control 63 0.35 BN/VT 2914 XIV EPH
64 0.35 GY/WH 3153 VII EPH+UEU/UHX Lane Departure Warning Disable Switch Signal 64 0.35 GY/WH 3153 XIV EPH+UEU/UHX
65 0.35 GY/VT 3264 VI -KL9 Logistic Mode Relay Close Control 65 0.13 GY/VT 3264 XIV -KL9
66 0.5 VT/BK 739 VI UVD Run/Crank Ignition 1 Voltage 66 0.5 VT/BK 739 XIII UVD
67 0.35 VT/BU 3674 VII LH7+EPH NOx Sensor 1 Control 67 0.35 VT/BU 3674 XIV LH7+EPH
68 0.35 WH 3152 IV UEU/UHX Lane Departure Warning Indicator Control
Lane Departure Warning Indicator Control		 68 0.13
0.35		 WH
WH		 3152
3152		 XIV
XVII		 -
UEU/UHX
69 0.35 VT/GN 439 VI TR6 Run/Crank Ignition 1 Voltage 69 0.35 VT/GN 439 XIV TR6
70 0.13
0.13
0.35		 BN/WH
BN/WH
BN/WH		 2517
2517
2517		 VIII
VII
IV		 UE1+IOB/IO5/IO6
UE1+IOR/IOS/IOT/IOU
UE3		 Keypad Red LED Control
Keypad Red LED Control
Keypad Red LED Control		 70 0.13 BN/WH 2517 XV UE1/UE3
71 0.35 GN 2308 VIII AL0/C99 Passenger Air Bag Off Indicator Control 71 0.13 GN 2308 XV ALO/C99
72 0.35 BK/BN 654 IV IOB-UE1-UE3 Cellular Telephone Microphone Low Reference 72 0.35 BK/BN 654 XIV -
73 0.35 BU 655 IV - Cellular Telephone Microphone Signal 73 0.35 BU 655 XIV -
74 0.13 BU/BN 3161 VIII UFQ Parallel Park Assist Disable Switch Signal 74 0.13 BU/BN 3161 XV UFQ
75 0.13
0.35		 GN/BK
GN/BK		 2515
2515		 IV
VII		 UE1+IOB/IO5/IO6
UE1+IOR/IOS/IOT/IOU		 Keypad Control
Keypad Control		 75 0.13 GN/BK 2515 XV UE1/UI3
76 0.13
0.13		 GN/WH
GN/WH		 2514
2514		 IV
VII		 UE1+IOB/IO5/IO6
UE1+IOR/IOS/IOT/IOU		 Keypad Signal
Keypad Signal		 76 0.13 GN/WH 2514 XIV UE1/UE3
scientia non olet · About LEMON Manuals
