E40 Electrical Auxiliary Heater X2 (C32)
|
|

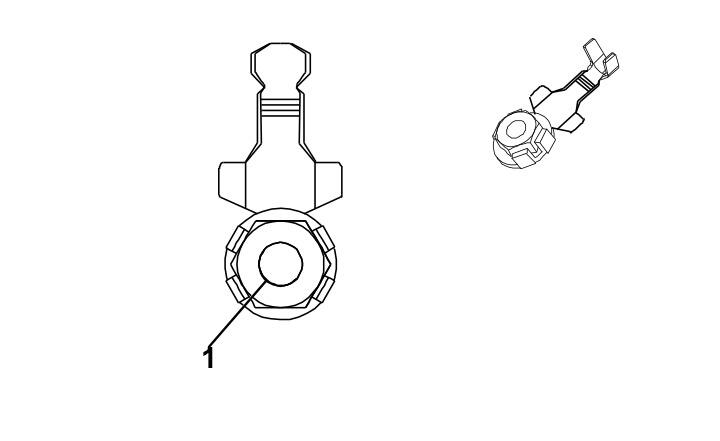

Connector Part Information
- Harness Type: Auxiliary Heater
- OEM Connector: 15337277
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way Ring Terminal
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
10 |
RD |
1 |
Unfused Battery Positive Voltage |
I |
C32 |
