Hood Primary And Secondary Latch Replacement (Equinox)

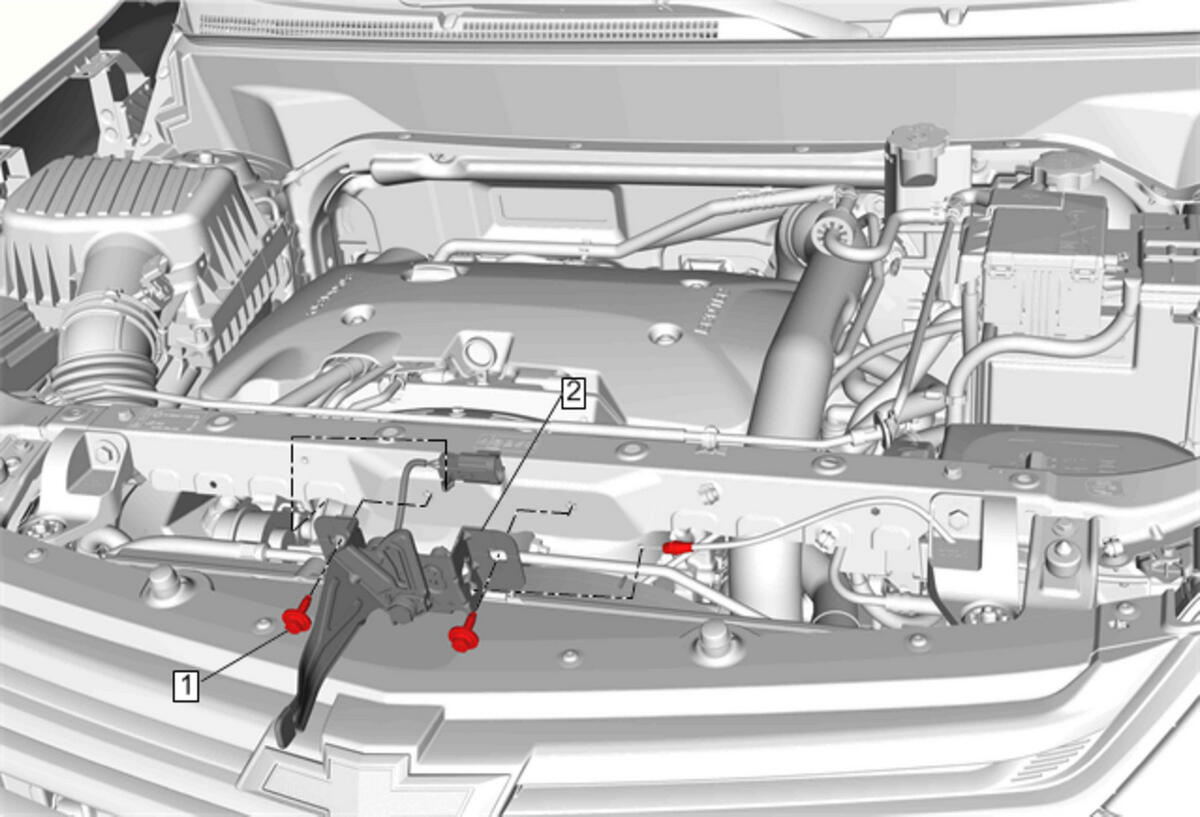

Fig 1: Hood Primary And Secondary Latch (Equinox)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Hood Primary Latch Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 13 N.m (115 lb in)
2	Hood Primary Latch Procedure Mark the position of the hood latch with a grease pencil. Disconnect the release cable from the hood primary latch. Disconnect the electrical connector. Align the hood primary latch if necessary.

Callout

Component Name

Hood Primary Latch Bolt [2x]

CAUTION:

Tighten
13 N.m (115 lb in)

Hood Primary Latch

Procedure
