Rear Side Door Weatherstrip Replacement - Door Side

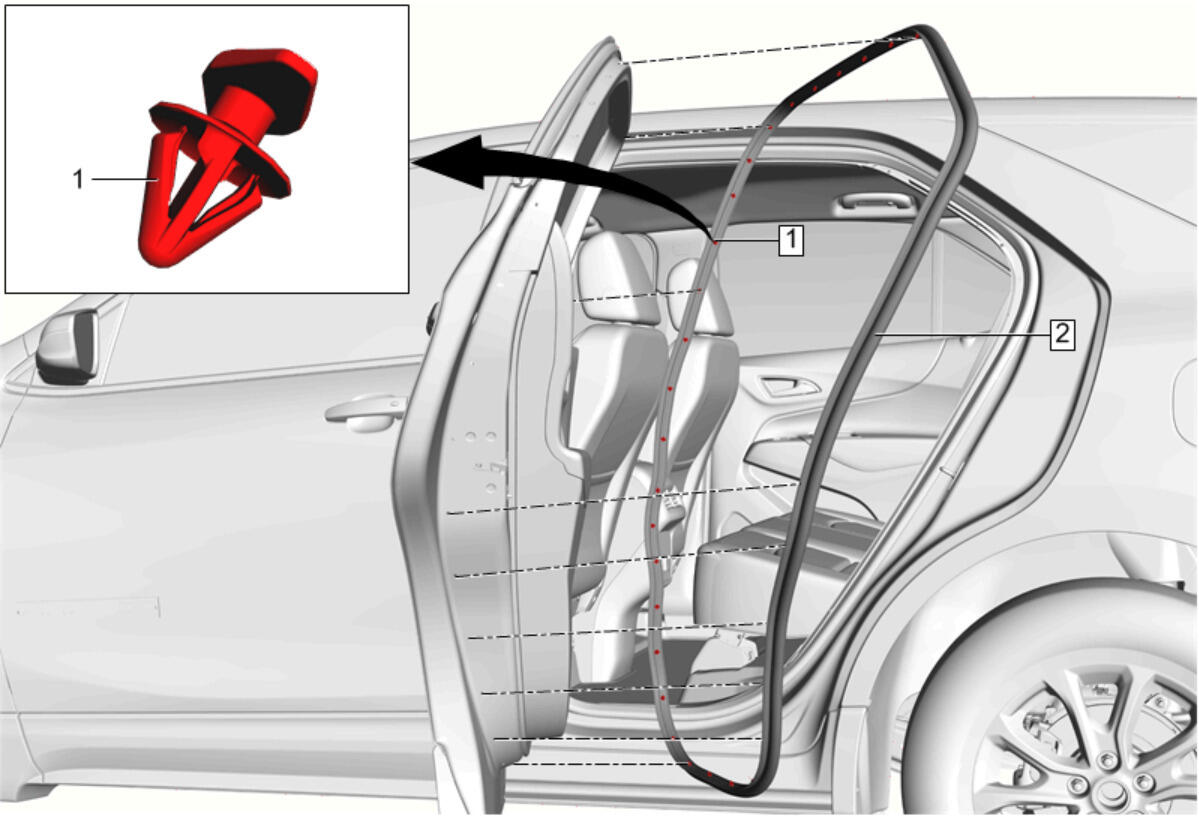

Fig 1: Rear Side Door Weatherstrip - Door Side
GM4597416Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Side Door Check Link Replacement
1 Rear Side Door Weatherstrip Retainer [39x]
Procedure
Use a suitable tool in the removal of the rear side door weatherstrip retainers.
2 Rear Side Door Weatherstrip - Door Side
