Front Side Door Weatherstrip Replacement - Door Side

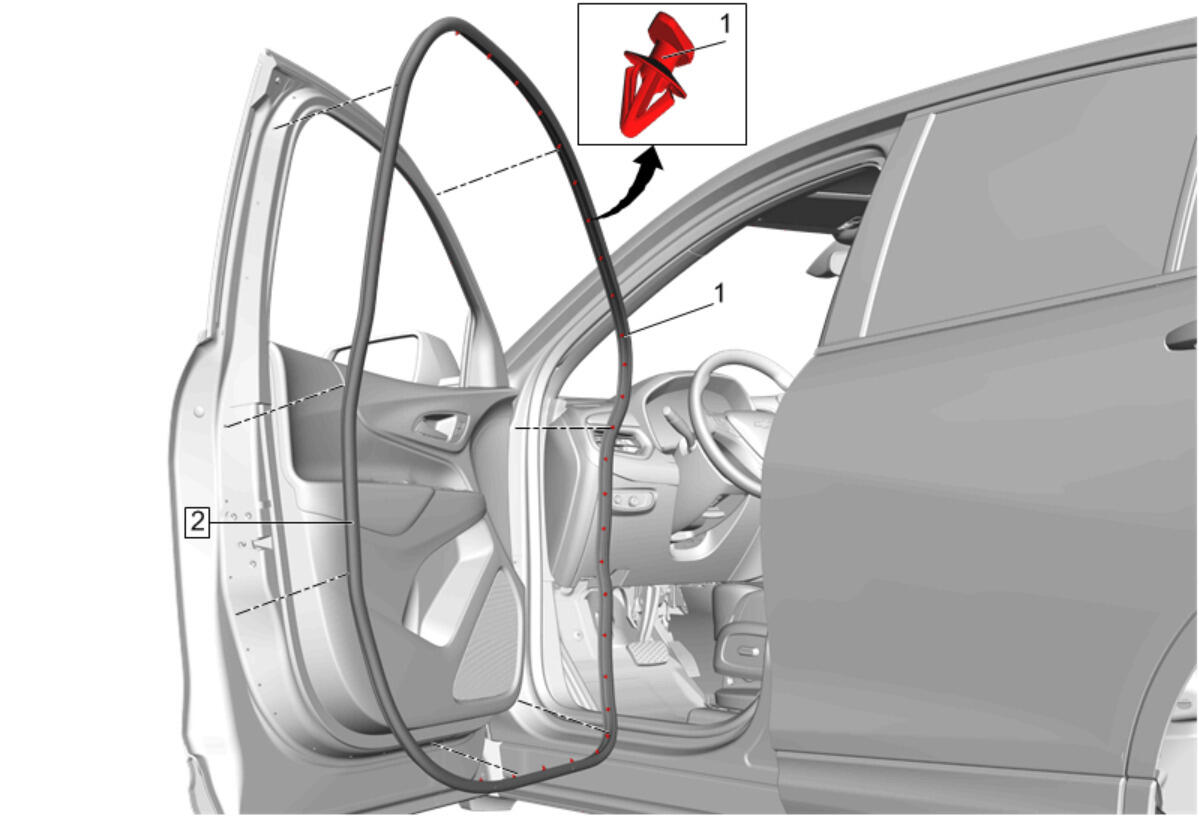

Fig 1: Front Side Door Weatherstrip - Door Side
GM4578681Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Check Link Replacement
1 Front Side Door Weatherstrip Retainer [40x]
Procedure
Using a suitable tool, remove the front side door weatherstrip retainer.
2 Front Side Door Weatherstrip - Door Side
