Transmission Control Module Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

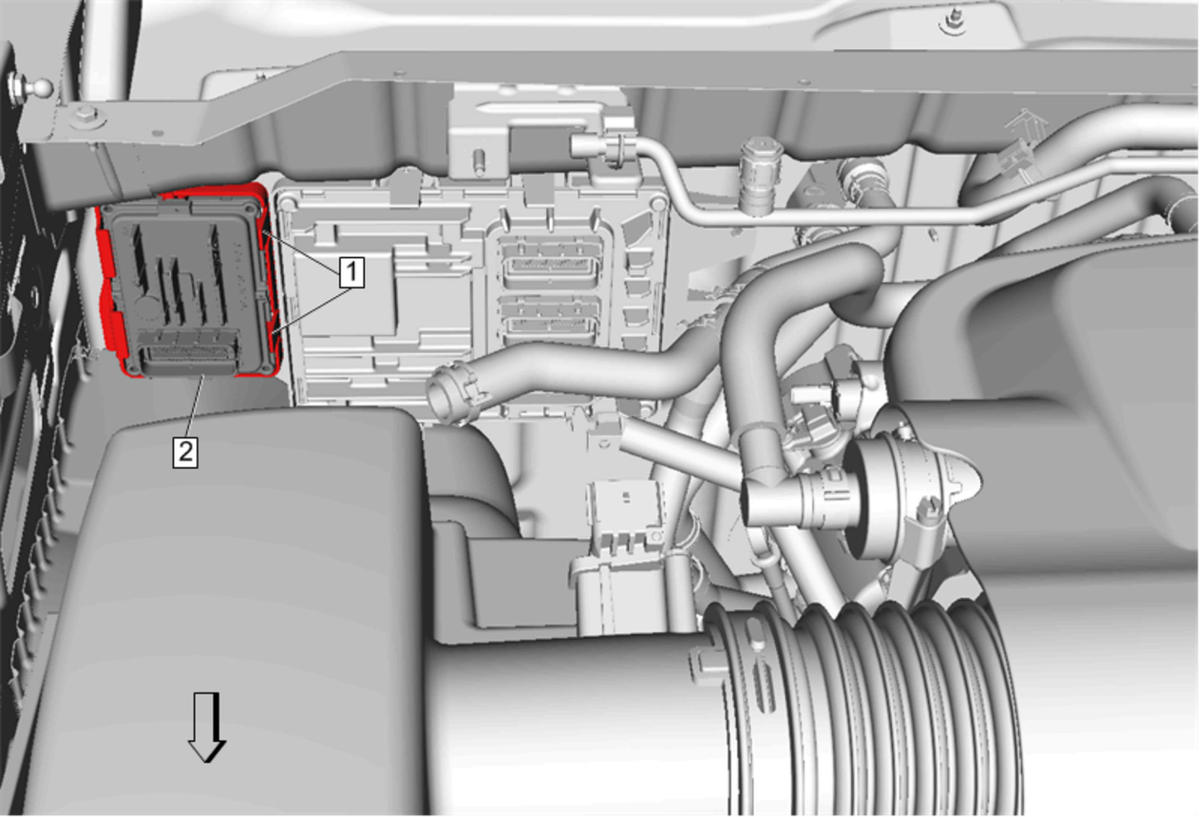

Callout	Component Name
Preliminary Procedure Position the radiator surge tank out of the way, do not remove from vehicle. Radiator Surge Tank Replacement
1	Retaining Tabs Procedure Move to release position.
2	Transmission Control Module Procedure Disconnect the electrical connector. Remove the module from the module bracket. Program the transmission control module, if replaced. Control Module References

Callout

Component Name

Preliminary Procedure
Position the radiator surge tank out of the way, do not remove from vehicle. Radiator Surge Tank Replacement

Retaining Tabs
Procedure
Move to release position.

Transmission Control Module

Procedure
