X500 Body Harness to Driver Door Harness

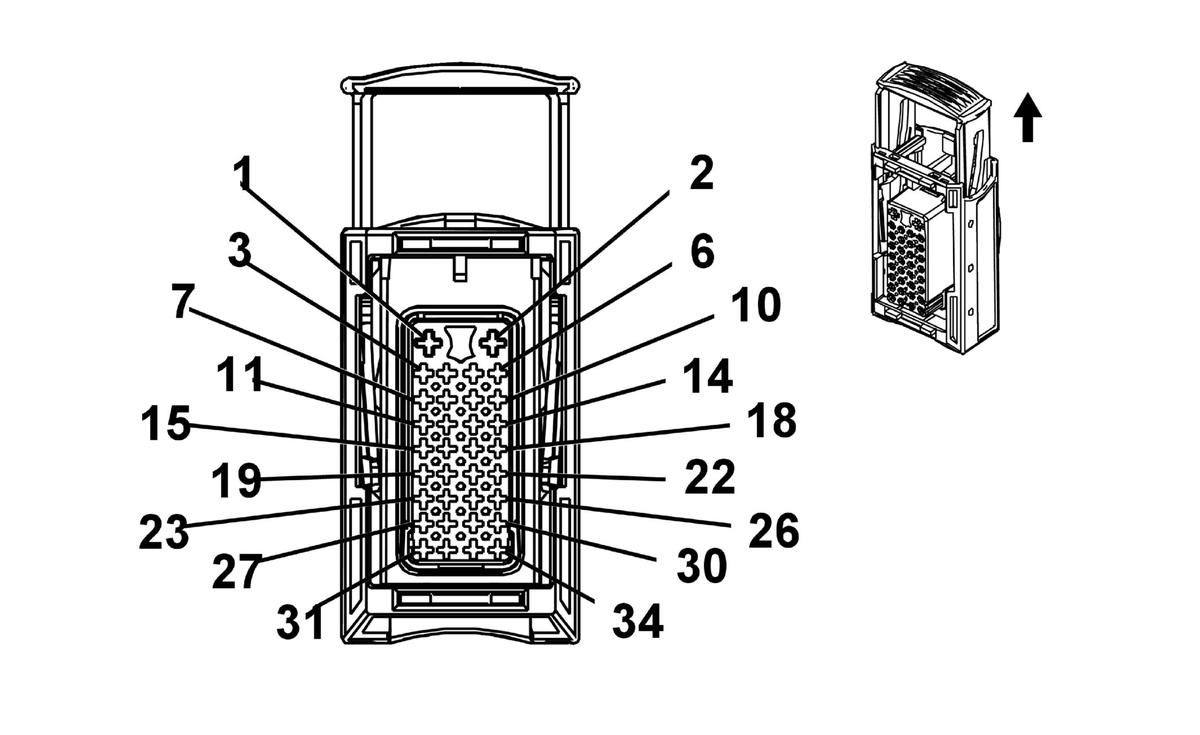

GM2042940

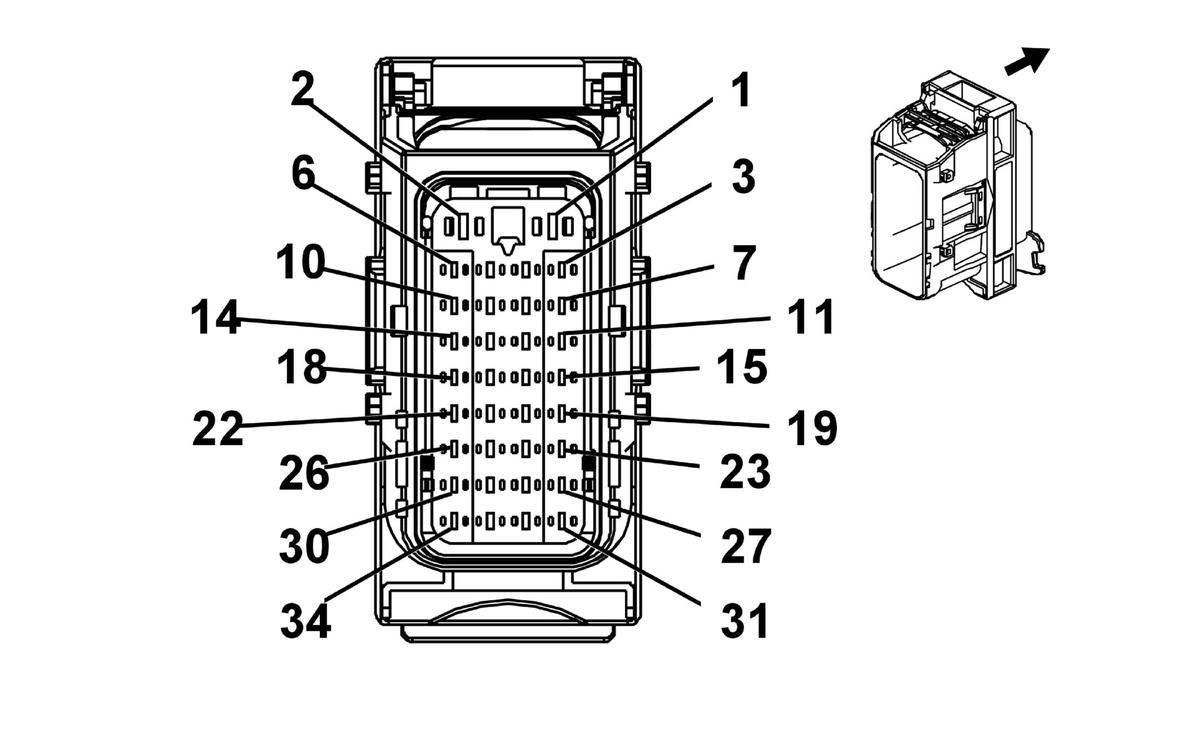

GM2042941
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 30432411
  • Service Connector: 19300485
  • Description: 34-Way F 1.5, 2.8 Series, Sealed (BK)
Connector Part Information
  • Harness Type: Driver Door
  • OEM Connector: 3 053 06 11
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 34-Way M 1.5, 2.8 Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13575357 J-35616-2A (GY) J-38125-560 Not Available Not Available Not Available Not Available
II 13575377 J-35616-35 (VT) J-38125-557 Not Available Not Available Not Available Not Available
III 13578884 J-35616-14 (GN) J-38125-560 Not Available Not Available Not Available Not Available
IV Not Required J-35616-19 (BK) No Tool Required Not Required Not Required Not Required Not Required
V Not Required J-35616-3 (GY) No Tool Required Not Required Not Required Not Required Not Required
VI Not Required J-35616-5 (PU) No Tool Required Not Required Not Required Not Required Not Required
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 2.5 RD/BU 1240 II - Battery Positive Voltage 1 2.5 RD/BU 1240 VI -
2 2.5 BK 3550 II - Ground 2 2.5 BK 3550 VI -
3 0.35 WH 3398 I - Passenger Mirror Motor Common Control 3 0.35 WH 3398 V -
4 0.5 BN/YE 2267 III - Mirror Heating Element Control 4 0.5 BN/YE 2267 IV -
5 0.35 YE/VT 3397 I - Passenger Mirror Motor Up (+) Down (-) Control 5 0.35 YE/VT 3397 V -
6 0.35 GN/BK 3396 I - Passenger Mirror Motor Right (+) Left (-) Control 6 0.35 GN/BK 3396 V -
7 - 8 - - - - - Not Occupied 7 - 8 - - - - -
9 1 BN/BU 118 III - Left Front Speaker Signal (-) 1 9 1 BN/BU 118 IV -
10 1 BU 201 III - Left Front Speaker Control (+) 1 10 1 BU 201 IV -
11 - - - - - Not Occupied 11 - - - - -
12 0.35 WH 6816 I - Indicator Dimming Control 12 0.35 WH 6816 V -
13 - - - - - Not Occupied 13 - - - - -
14 0.35 OG/GN 2132 I - Left Front Side Impact Sensing Module Signal 14 0.35 OG/GN 2132 V -
15 0.35 BK/OG 6628 I - Left Front Side Impact Sensing Module Low Reference 15 0.35 BK/OG 6628 V -
16 0.35 RD/VT 1940 I - Battery Positive Voltage 16 0.35
0.5
RD/VT
RD/VT
1940
1940
V
IV
AXG+DG6/DL6/DL9
AXG-DG6-DL6-DL9
17 0.35 BN/WH 781 I - Driver Door Lock Switch Unlock Signal 17 0.35 BN/WH 781 V -
18 0.35 BN/YE 780 I - Driver Door Lock Switch Lock Signal 18 0.35 BN/YE 780 V -
19 0.75 BN/YE 294 III - Door Lock Actuator Unlock Control 19 0.75 BN/YE 294 IV -
20 0.75 GY 5911 III - Door Lock Actuator Lock Control 2 20 0.75 GY 5911 IV -
21 - 25 - - - - - Not Occupied 21 - 25 - - - - -
26 0.35 YE 6817 I - LED Backlight Dimming Control 26 0.35 YE 6817 V -
27 - 31 - - - - - Not Occupied 27 - 31 - - - - -
32 0.35 GY 5697 I - Child Lockout Indicator Control 32 0.35 GY 5697 V -
33 0.5 GN/YE 6134 III - Local Interconnect Network Serial Data Bus 3 33 0.5 GN/YE 6134 IV -
34 0.35 YE/BN 3265 I - Child Security Lock Switch Signal 34 0.35 YE/BN 3265 V -
