X400 Chassis Harness to License Lamp Harness (-ZR2)
|
|
|

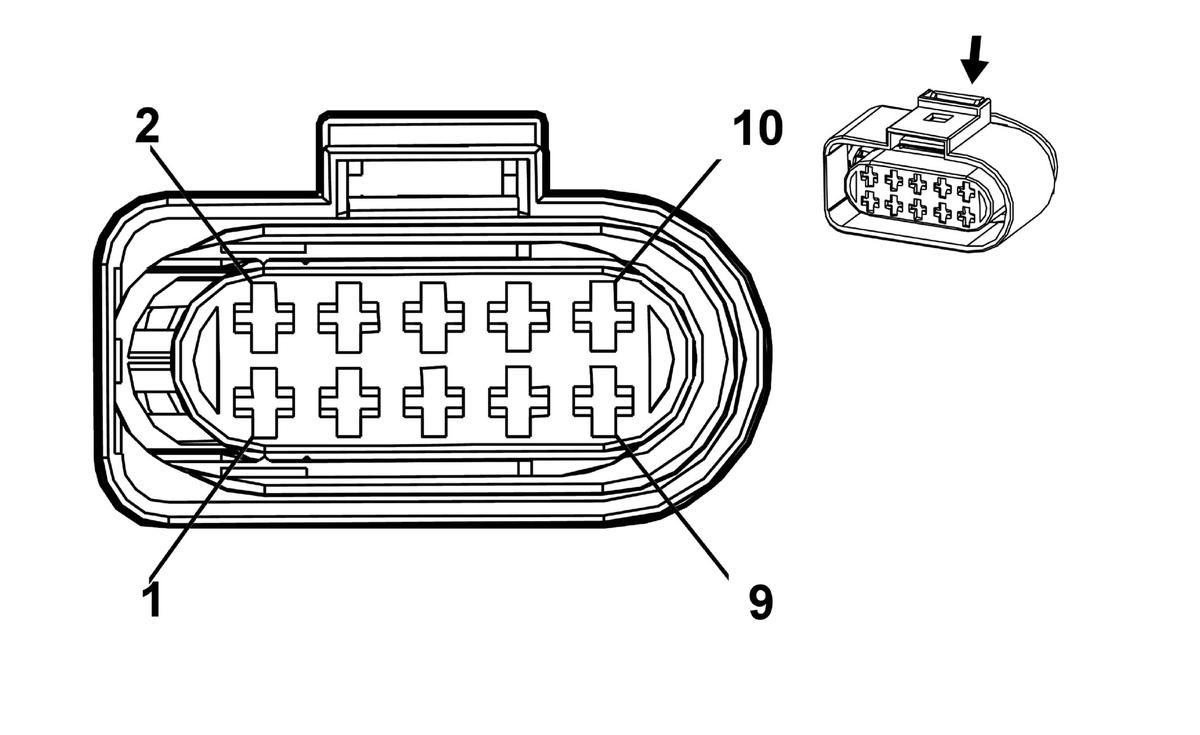

Connector Part Information
- Harness Type: Chassis
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 10-Way F (BK)
|

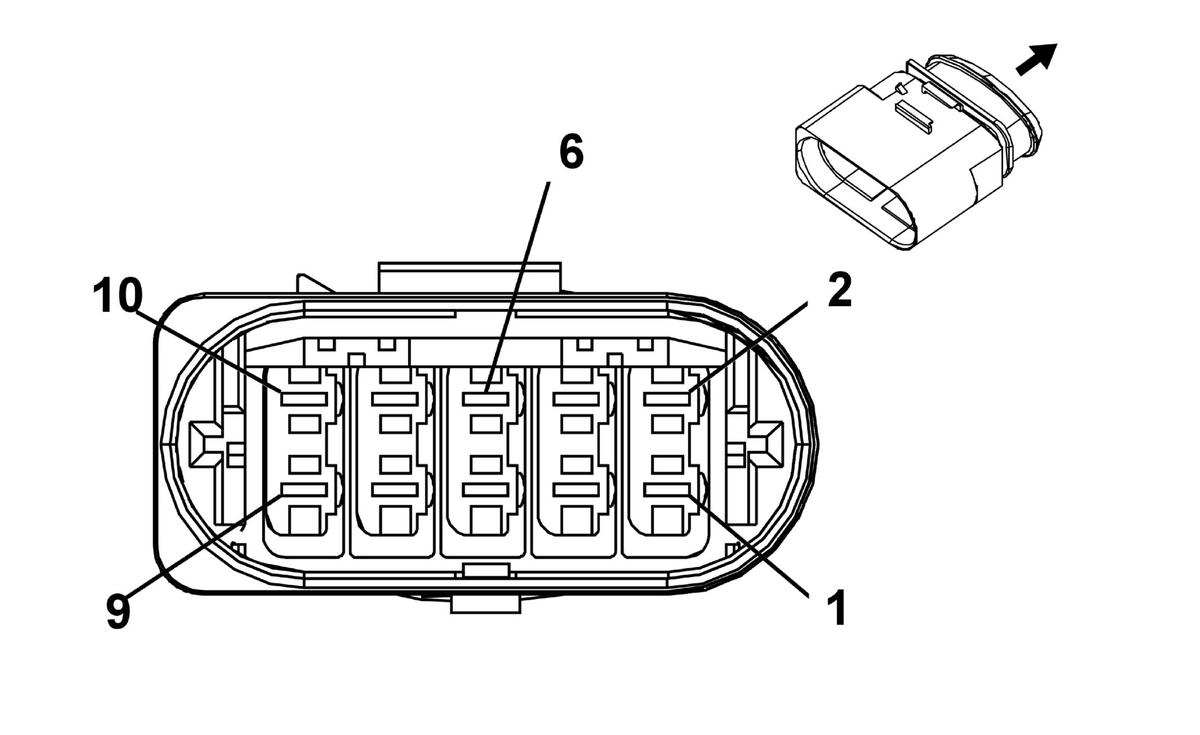

Connector Part Information
- Harness Type: License Lamp
- OEM Connector: 1718167-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 10-Way M 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
Not Required |
J-35616-5 (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN/YE |
6846 |
I |
- |
Rear License Lamp Control |
1 |
0.5 |
GN/YE |
6846 |
II |
- |
| 2 |
0.5 |
BK |
750 |
I |
- |
Ground |
2 |
0.5 |
BK |
750 |
II |
- |
| 3 - 4 |
- |
- |
- |
- |
- |
Not Occupied |
3 - 4 |
- |
- |
- |
- |
- |
| 5 |
0.5 |
WH/BU |
6973 |
I |
- |
Camera Signal 2 |
5 |
0.5 |
WH/BU |
6973 |
II |
- |
| 6 |
0.5 |
GY/YE |
6972 |
I |
- |
Camera Signal 2 + |
6 |
0.5 |
GY/YE |
6972 |
II |
- |
| 7 |
0.5 |
BARE |
6974 |
I |
- |
Camera Low Reference |
7 |
0.5 |
BARE |
6974 |
II |
- |
| 8 |
0.5 |
BK/WH |
751 |
I |
- |
Signal Ground |
8 |
0.5 |
BK/WH |
751 |
II |
- |
| 9 |
0.5 |
VT/GN |
1739 |
I |
- |
Run/Crank Ignition 1 Voltage |
9 |
0.5 |
VT/GN |
1739 |
II |
- |
| 10 |
0.5 |
GN/WH |
24 |
I |
- |
Backup Lamp Control |
10 |
0.5 |
GN/WH |
24 |
II |
- |
