X111 Engine Harness to Glow Plug Harness (LWN)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

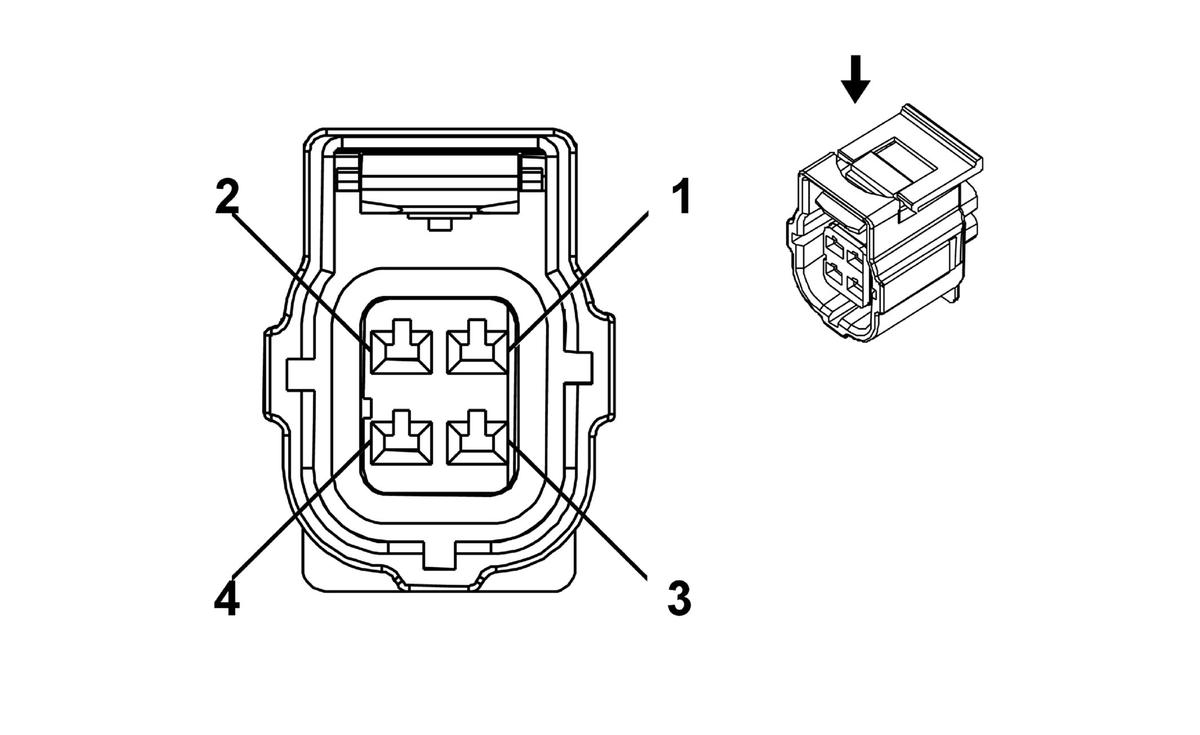

Connector Part Information
- Harness Type: Engine
- OEM Connector: 184248-1
- Service Connector: 13587793
- Description: 4-Way F SSC Series (BK)
|
Connector Part Information
- Harness Type: Glow Plug Jumper
- OEM Connector: 184346-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M Sealed Sensor Connector System (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-33 (YE) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-34 (YE) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
2 |
GY/BU |
1581 |
I |
- |
Glow Plug Control 1 |
1 |
1.5 |
GN/BK |
- |
II |
- |
| 2 |
2 |
GY/BN |
1582 |
I |
- |
Glow Plug Control 2 |
2 |
1.5 |
GN/BK |
- |
II |
- |
| 3 |
2 |
GY/GN |
1583 |
I |
- |
Glow Plug Control 3 |
3 |
1.5 |
WH/BK |
- |
II |
- |
| 4 |
2 |
GY/YE |
1584 |
I |
- |
Glow Plug Control 4 |
4 |
1.5 |
BK |
- |
II |
- |
